Natural Gas
FPB-G34DBSMT-N
FPB-G44DBSMT-N
FPB-G34DBSTMS-N
FPB-G44DBSTMS-N
FPB-G34DBSTFS-N

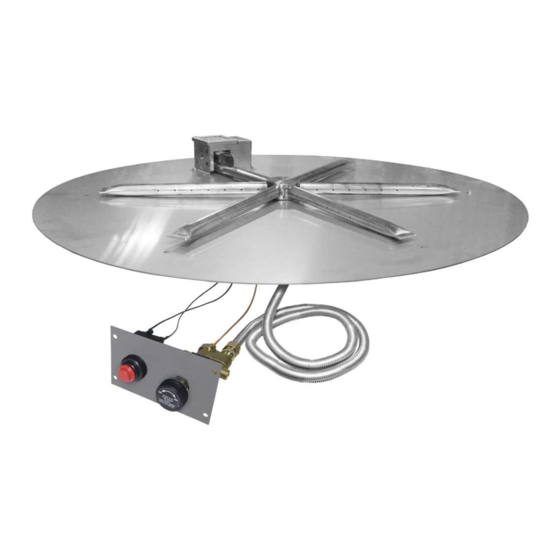

Outdoor Flat Disc Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MODELS
Description
Match Light (MT)
34" G90 Flat Disc & Spur Kit
44" G90 Flat Disc & Spur Kit
Thermocouple Manual Safety (TMS)
34" G90 Flat Disc & Spur Kit
44" G90 Flat Disc & Spur Kit
Thermocouple Flame Sense (TFS)
34" G90 Flat Disc & Spur Kit
INSTALLATION PRECAUTION:
MH# 60069
Propane
FPB-G34DBSMT-P
FPB-G44DBSTM-P
FPB-G34DBSTMS-P
FPB-G44DBSTMS-P
FPB-G34DBSTFS-P
Advertisement
Table of Contents
Related Manuals for Firegear FPB-G34DBSMT-N
Summary of Contents for Firegear FPB-G34DBSMT-N
- Page 1 MH# 60069 MODELS Natural Gas Description Propane Match Light (MT) FPB-G34DBSMT-N 34” G90 Flat Disc & Spur Kit FPB-G34DBSMT-P FPB-G44DBSMT-N FPB-G44DBSTM-P 44” G90 Flat Disc & Spur Kit Thermocouple Manual Safety (TMS) FPB-G34DBSTMS-N FPB-G34DBSTMS-P 34” G90 Flat Disc & Spur Kit FPB-G44DBSTMS-N 44”...
- Page 2 !"#$%& )"&*+#,-+#+.(!%,/"00"&! 1234,56673589:,958,6;<=>9:,95;?<8,@<8<A3=:, B2392,254,8<,<=<;C, D438E,3F,38,58,:897<4:=,4659:,958,G377,H<>C, #:I:;,>4:,F234,56673589:,38,58,:897<4:=,4659:, 4>92,54,5,95@6:;J,F:8FJ,95;,<;,2<@:C, !"#$%& '"&#(#$ "#!$%&!'()**!+,'-! .%!/%0!'0%1)!%1!&')!+,'%*2/)!%1!%03)1! #*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)! 5292/20$!%#!032'!%1!%03)1!,66*2,/9):! 1. Shut off gas to the appliance. ;/!<=>9$*2/7)1!/%0!9%//)90)7!#%1!&')! 2. Extinguish any open flame. '3,**!/%0!4)!'0%1)7!2/!03)!5292/20$!%#!032'! %1!,/$!%03)1!,66*2,/9):! 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 3: Table Of Contents
NOTE: This installation instruction covers (3) different ignition systems: Match Light (MT), Thermocouple Manual Safety (TMS), or Thermocouple Flame Sense (TFS). Example: FPB-G34DBSMT-N, FPB-G34DBSTMS-N, FPB-G34DBSTFS-N the bold letters provides the type of ignition system in each model number. The information in this manual provides standard requirements for all models and ignition systems and provides specific detailed information for each model in the sections listed below. -
Page 4: Specifications
Natural Gas (NG) Propane Gas (LP) Disc Min./Max. Ground Side Combustible Combustible Depth Diameter Install Opening Level Wall Ceiling Floor FPB-G34DBSMT-N FPB-G34DBSMT-P .0598 34” 24” - 31” 18” 19” 69” 18” FPB-G44DBSMT-N FPB-G44DBSMT-P .0598 44” 24” - 40” 18” 19”... -
Page 5: Hard Piping To Fire Pit
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this appliance. Use the specifications listed on page 3 for proper clearance to combustibles. PREPARING A NON-COMBUSTIBLE STRUCTURE The fire pit can be installed on a flat, stable surface, away from any combustible materials. Install fire pit on any level, outdoor non-combustible, flat stable surface or a combustible floor according to the clearances specified in this manual. -
Page 6: Section A Match Light (Mt) Installation
Section A Match Light Installation Flat Disc Burning Spur Fire Pits REV. 5-7-14 Page 5... - Page 7 INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual.. 2.
- Page 8 Cement Block Illustration Landscape/Patio Block Illustration Stone Cap Flat Disc With Spur Vent Shows possible ventilation Man Made Stone Illustration depicts flat disc (shaded area) under NOTE: Key valve and flexible gas lines top course of patio block. Refer to page 3 for are supplied.
-
Page 9: Lighting Instructions
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 10: Section B Thermocouple Manual Safety (Tms) Installation
Section B Thermocouple Manual Safety Installation Flat Disc Burning Spur Fire Pits REV. 5-7-14 Page 9... - Page 11 INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual. 2.
- Page 12 Illustration depicts flat disc (shaded area) under top course of patio block. Refer to page 3 for ventilation requirements. NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Mounting Valve Mounting Plate Gas Inlet Gas Outlet Shows possible ventilation Fig.
- Page 13 OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
-
Page 14: Section C Thermocouple Flame Sense (Tfs) Installation
Section C Thermocouple Flame Sense Installation Flat Disc Burning Spur Fire Pits REV. 5-7-14 Page 13... - Page 15 INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non- combustible or a flat level combustible surface according to the clearances specified in this manual. We recommend using 3/4”...
- Page 16 NSTALLATION OF BATTERY PACK During the installation the location of the battery pack should be installed in the location that is easy to service. The best location is in the vertical enclosure of the fire pit. The plastic junction box is provided for the installation of the battery pack.
- Page 17 (programmed) to the module inside the control box. Additional transmitters can be learned to this electronic module; up to a total of three transmitters are available. Contact Firegear to discuss additional transmitter options or see the accessory page of this instruction manual.
- Page 18 OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
-
Page 19: Replacement Parts
Replacement Parts Maintenance Accessories Flat Disc Burning Spur Fire Pits REV. 5-7-14 Page 18... - Page 20 FLAT DISC REPLACEMENT PARTS PILOT ADJ PILOT MAIN Drawings are not to scale Module POWER Flat Disc Burning Spur Fire Pits REV. 5-7-14 Page 19...
- Page 21 FLAT DISC REPLACEMENT PARTS MT TMS TFS Item Qty. Part Number Description 34-inch G90 Flat Galvanized Pan Pan-GV34D 44-inch G90 Flat Galvanized Pan Pan-GV44D 22-inch Spur (used on all Flat Pans) B-SPUR-22 Red Silicone “O” Ring (not shown) ST3-110-1003 ½” NPS Brass Mounting Nut ST3-113-1032 7/8”...
-
Page 22: Fire Pit Maintenance
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 23: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Lava Stones: 1” to 2” size (20lbs) Lava Boulders: 6” to 12” size (30lbs) Lava Rock: 1”... - Page 24 TROUBLE SHOOTING FOR TFS MODELS FAULT CODES TROUBLE SHOOTING The VCS-5000MODTC control module has built-in error detection for several common operating fault conditions. When the control module detects an error, it will emit a series of beeps. The beeping pattern will help to determine the cause of the operating fault Ignition Safety (Protection for Ignition system): Error Code: One beep every one second.
- Page 25 Thermal Safety (Overheat Protection): Error Code: 4 Beeps every 2 seconds. Description of Fault: Warn users that the modules internal temperature exceeds 170°F. How to Clear: Module’s internal temperature must cool to below 160°F and then press ON button. What to Check: Ensure that there is proper ventilation to the control module.
- Page 26 FOR TECHNICAL SERVICE, CALL: (855) 498-8324 Firegear Outdoors 9230 Conservation Way Fort Wayne, IN 46809 For Sales: (888) 672-8929 Tech Support E-mail: www.support@skytechpg.com WEB SITE: www.firegearoutdoors.com Flat Disc Burning Spur Fire Pits REV. 5-7-14 Page 25...
