Natural Gas
FPB-G25RBSTFS-N
FPB-G29RBSTFS-N
FPB-G33RBSTFS-N
FPB-19RBSTFS-N
FPB-25RBSTFS-N
FPB-20SBSTFS-N
FPB-26SBSTFS-N
FPB-32SBSTFS-N
Outdoor Thermocouple Flame Sense Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MH# 60069
MODELS
Description

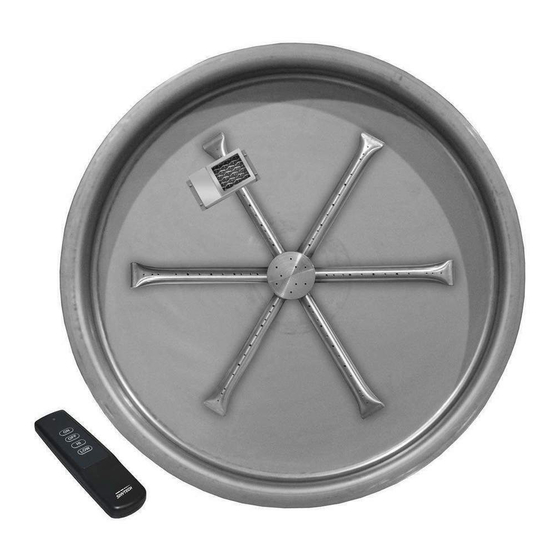

25" G90 Black Pan & Spur Kit
29" G90 Black Pan & Spur Kit
33" G90 Black Pan & Spur Kit
19" Round Stainless Pan & Spur Kit
25" Round Stainless Pan & Spur Kit
20" Square Stainless Pan & Spur Kit
26" Square Stainless Pan & Spur Kit
32" Square Stainless Pan & Spur Kit
INSTALLATION PRECAUTION:
Propane
FPB-G25RBSTFS-P
FPB-G29RBSTFS-P
FPB-G33RBSTFS-P
FPB-19RBSTFS-P
FPB-25RBSTFS-P
FPB-20SBSTFS-P
FPB-26SBSTFS-P
FPB-32SBSTFS-P
Advertisement
Table of Contents
Related Manuals for Firegear FPB-G25RBSTFS-N
Summary of Contents for Firegear FPB-G25RBSTFS-N
- Page 1 MH# 60069 MODELS Natural Gas Description Propane FPB-G25RBSTFS-N FPB-G25RBSTFS-P 25” G90 Black Pan & Spur Kit FPB-G29RBSTFS-N FPB-G29RBSTFS-P 29” G90 Black Pan & Spur Kit FPB-G33RBSTFS-N FPB-G33RBSTFS-P 33” G90 Black Pan & Spur Kit FPB-19RBSTFS-N FPB-19RBSTFS-P 19” Round Stainless Pan & Spur Kit...
- Page 2 !"#$%& )"&*+#,-+#+.(!%,/"00"&! 1234,56673589:,958,6;<=>9:,95;?<8,@<8<A3=:, B2392,254,8<,<=<;C, D438E,3F,38,58,:897<4:=,4659:,958,G377,H<>C, #:I:;,>4:,F234,56673589:,38,58,:897<4:=,4659:, 4>92,54,5,95@6:;J,F:8FJ,95;,<;,2<@:C, !"#$%& '"&#(#$ "#!$%&!'()**!+,'-! .%!/%0!'0%1)!%1!&')!+,'%*2/)!%1!%03)1! #*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)! 5292/20$!%#!032'!%1!%03)1!,66*2,/9):! 1. Shut off gas to the appliance. ;/!<=>9$*2/7)1!/%0!9%//)90)7!#%1!&')! 2. Extinguish any open flame. '3,**!/%0!4)!'0%1)7!2/!03)!5292/20$!%#!032'! 3. If odor continues, keep away %1!,/$!%03)1!,66*2,/9):! from the appliance and immediately call your gas supplier or fire department.
-
Page 3: Table Of Contents
Fuels used in gas fired appliances, and the products of combustion such as fuels, contain chemicals known to cause cancer, birth defects and/or other reproductive harm. This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1 TABLE OF CONTENTS Specifications Preparation for Non-Conbustible Structure... -
Page 4: Specifications
Model: Combustible Inside Ground Side Natural Gas Propane Gas (NG) (LP) Min/Max Combustible Floor Depth Level Wall Install Opening Ceiling FPB-G25RBSTFS-N FPB-G25RBSTFS-P 2.500” 25”/25.5” 23.875” 20.5” 19” 69” 18” FPB-G29RBSTFS-N FPB-G29RBSTFS-P 2.500” 30”/31.35” 29” 20.5” 19” 69” 18” FPB-G33RBSTFS-N FPB-G33RBSTFS-P 2.500”... -
Page 5: Preparation For Non-Conbustible Structure
WARNING: Proper clearances from combustible, construction materials must be maintained from all sides, top and bottom of this appliance. Use the specifications listed on page 3 for proper clearance to combustibles. PREPARING A NON-COMBUSTIBLE STRUCTURE The fire pit can be installed on a flat, stable surface, away from any combustible materials. Install fire pit on any level, outdoor non-combustible, flat, stable surface or a combustible floor according to the clearances specified in this manual. -
Page 6: Installation Into An Approved Enclosure
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non- combustible or a flat level combustible surface according to the clearances specified in this manual. We recommend using ¾”... -
Page 7: Installing Battery Pack
NSTALLATION OF BATTERY PACK During the installation the location of the battery pack should be installed in the location that is easy to service. The best location is in the vertical enclosure of the Fire pit. The plastic junction box is provided for the installation of the battery pack. -
Page 8: Installation Of Lava Rock/Media
LEARNING THE REMOTE CONTROL TO THE MODULE The Firegear fire pit is unique that it comes standard with one remote controlled transmitter. The handheld remote is shipped with this system are already learned (programmed) to the module inside the control box. Additional transmit- ters can be learned to this electronic module;... -
Page 9: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 10: Replacement Parts
TFS REPLACEMENT PARTS PILOT PILOT ADJ MAIN Module POWER Drawings are not in proportion TFS Burning Spur Fire Pits REV. 5-7-14 Page 9... -
Page 11: Replacement Parts List
TFS REPLACEMENT PARTS Qty. Item Description Part Number 25-inch G90 Round Galvanized Black Pan Pan-GV25R 29-inch G90 Round Galvanized Black Pan Pan-GV29R 33-inch G90 Round Galvanized Black Pan Pan-GV33R 19-inch Round Stainless Pan Pan-SS19R 25-inch Round Stainless Pan Pan-SS25R 20-inch Square Stainless Pan Pan-SS20S 26-inch Square Stainless Pan Pan-SS26S... -
Page 12: Fire Pit Maintenance/ Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. - Page 13 Thermal Safety (Overheat Protection): Error Code: 4 Beeps every 2 seconds. Description of Fault: Warn users that the modules internal temperature exceeds 170°F. How to Clear: Module’s internal temperature must cool to below 160°F and then press ON button. What to Check: Ensure that there is proper ventilation to the control module.
-
Page 14: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. LP CONVERSION KIT THERE IS NO LP CONVERSION KIT AVAILABLE THESE MODELS. YOU MUST ORDER THE FIRE PIT Stainless lid for 19”, 25”...
