Firegear FPB-29RBSAWS-N Installation And Operating Instructions Manual
Outdoor round pan & flat disc fire pits with all weather system
Hide thumbs
Also See for FPB-29RBSAWS-N:
- Installation and operating instructions manual (26 pages) ,
- Installation and operating instructions manual (28 pages)
Table of Contents
Advertisement
Quick Links
Round Pan Drop In
Natural Models
FPB-29RBSAWS-N
FPB-33RBSAWS-N
FPB-26DBSAWS-N
FPB-29DBSAWS-N
FPB-34DBSAWS-N
FPB-39DBSAWS-N
FPB-44DBSAWS-N

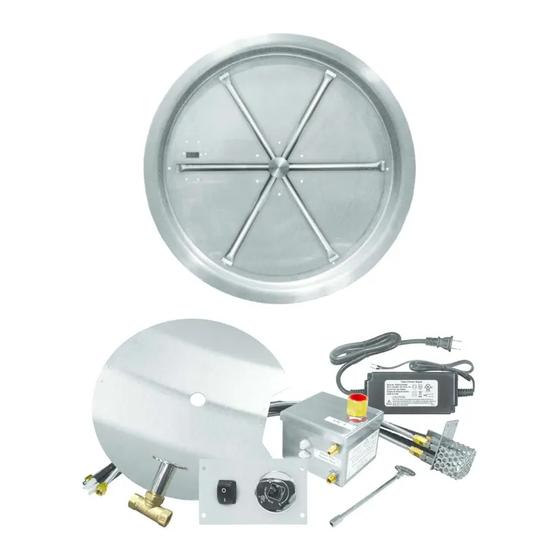

Outdoor Round Pan & Flat Disc Fire Pits
with All Weather System (AWS)
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This system requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
Propane Models
FPB-29RBSAWS-P
FPB-33RBSAWS-P
FPB-26DBSAWS-P
FPB-29DBSAWS-P
FPB-34DBSAWS-P
FPB-39DBSAWS-P
FPB-44DBSAWS-P
INSTALLATION PRECAUTION:
PN#90070
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Certified by Lab Test Certification for USA and
Canada. Meets: ANSI Z21.972014, CSA C22.2 No.
3-M1998 (R2014).
Round Flat Disc
Description
25" Round Pan with 22" Spur Burner
33" Round Pan with 31" Spur Burner
26" Round Flat Disc with 22" Spur Burner
29" Round Flat Disc with 22" Spur Burner
34" Round Flat Disc with 31" Spur Burner
39" Round Flat Disc with 36" Spur Burner
44" Round Flat Disc with 36" Spur Burner
REV. D
Page 1
Advertisement
Table of Contents
Related Manuals for Firegear FPB-29RBSAWS-N
Summary of Contents for Firegear FPB-29RBSAWS-N

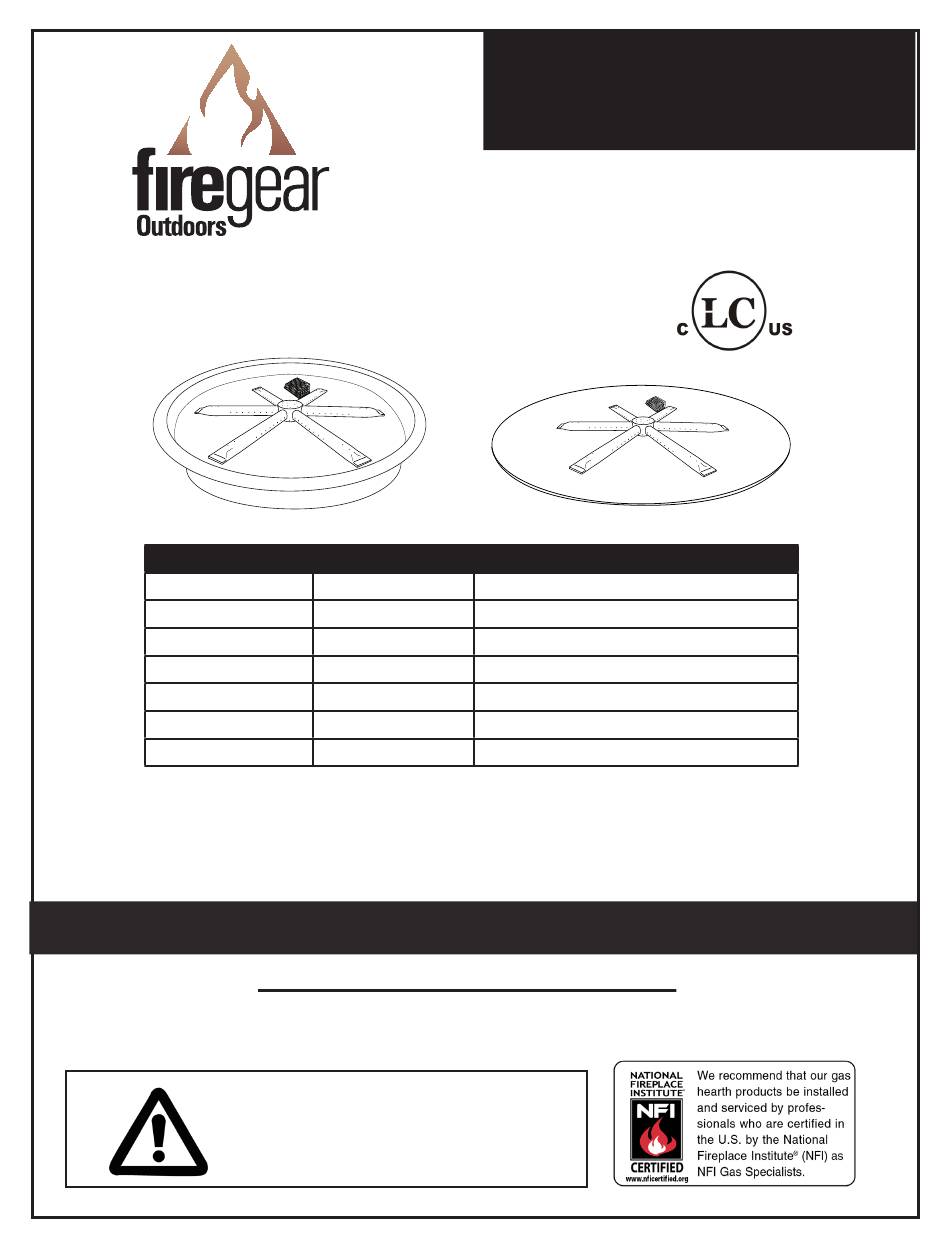

- Page 1 Canada. Meets: ANSI Z21.972014, CSA C22.2 No. 3-M1998 (R2014). Round Pan Drop In Round Flat Disc Natural Models Propane Models Description FPB-29RBSAWS-N FPB-29RBSAWS-P 25” Round Pan with 22” Spur Burner FPB-33RBSAWS-N FPB-33RBSAWS-P 33” Round Pan with 31” Spur Burner FPB-26DBSAWS-N FPB-26DBSAWS-P 26”...
- Page 2 State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. (For more information go to: www.p65Warnings.ca.gov.) Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 2...
-
Page 3: Table Of Contents
This drying out period should be no less than 30 minutes. Continue monitoring the flame from distance to ensure that all popping has ceased before fully enjoying the fire. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 3... -
Page 4: Specifications
FPB-44DBSAWS-N 25/64” FPB-44DBSAWS-P 250,000 (73.26kW) vary slightly from Table 2 specifications. Table 2 Btu Specifications for Burner Spur by Firegear Outdoors Pressure Min. Inlet 3.5” WC (⅛ PSI) (0.87kPa) 8.0” WC (⅓ PSI) (1.99kPa) Max. Inlet 14.0” WC (½ PSI) (3.48kPa) 14.0”... -
Page 5: Preparing A Non Combustible Structure
290,000 Btu’s and it is shipped this manual for a Firegear burner. NOTE: Depending on as a Natural Gas (NG) model. It must be installed with a venting locations, do not place fire pit directly on grass, burner pan, burner, orifice and installed into a dirt, or rocks that could prevent proper ventilation. -
Page 6: Gas Pipe Sizing Chart
This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel Gas Code - current edition) for more details. Table 4 Gas Pipe Sizing Chart Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 6... -
Page 7: Carton Contents - Removing Fire Pit From Carton
Pan lip or disc edge must be unobstructed so it can be lifted out of the fire pit for Hardware Bag servicing. (included with fire pit) Fig. 5 Hardware bag contents. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 7... -
Page 8: Pre-Installation Check List For Single Installation
Natural gas. To convert to Propane (LP) gas, the secondary pilot orifice must be changed. Power Supply - Firegear Outdoors offers two power supplies for use with the fire features. Each power Manual Shut-off/Key Valve - Is there a manual shut-off or... -
Page 9: Power Supply Location For Single Installation
Fig. 5 Example of a single fire feature install with power supply and switch contained within the enclosure, when applicable. Note: Must be 10-feet or more from a pool/spa for this installation. See additional illustration on page 10, Fig. 8. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 9... -
Page 10: Installing Key Valve
The red sleeve from the Non-Combustible adapter connects to the other side of the switch. See Figs. Wall Material 23 and 24 on page 15. Primary Gas Supply Fig. 20 Key valve components Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 10... -
Page 11: Installing Media
Do NOT cover the top of mesh pilot hood with any rock or glass. It must be free an any debris to operate properly. Mesh Pilot Hood Media Fig. 22 Media placement around pilot hood. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 11... -
Page 12: Wiring Diagrams
WIRING DIAGRAM FOR OPTIONAL REMOTE CONTROL Valve Box Weather Proof Power Wire to Valve GFI Box FG-1420-A-OD Receiver LEARN GOE-30VDC Power Supply Fig. 23 Wire diagram of AWS system with optional1420-A remote control. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 12... -
Page 13: Operating Instructions
1. Turn the fire feature OFF by pressing the opposite button on the rocker switch. 2. If you are no longer burning the fire pit until another time, we recommend turning the key valve to OFF position. Firegear Outdoors All Weather Ignition System (AWS) REV. D... -
Page 14: Replacements Parts
To 120VAC To Fire Attach Ground GFI Power Feature(s) Junction box is 6” deep (12-gauge wire & strain relief (12-gauge wire & strain relief supplied by installer) supplied by installer) Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 14... -
Page 15: Replacement Parts List
2-pin Igniter Connector (pilot lead has two white wires under insulation) 2-pin Thermopile Connector (pilot lead has a red and white wire under insulation) Flared Pilot Connection Compression Pilot Connection Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 15... -
Page 16: Troubleshooting
Use a multi-meter to check resistance. No resistance or resistance greater than 8 ohms indicates a defective igniter. Page 27 valve reference shows the igniter and thermopile 2-pin connections for testing. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 16... - Page 17 Thermopile is not defective the only thing left is a Defective Controller inside the valve box. If you have a Defective Controller the only way to fix it is to replace it. Firegear Outdoors All Weather Ignition System (AWS) REV. D...
- Page 18 Often this will result in a small flame that continues to burn on the Main Burner after the feature has been turned OFF. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 18...
-
Page 19: Optional Accessories
Cover/Lid Junction Box NOTE: See the Firegear Outdoors catalogue for a additional accessories not shown above. FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. -
Page 20: Warranty
FIREGEAR LIMITED WARRANTY - 2021 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –... - Page 21 • LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS • LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS) • ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 21...
- Page 22 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 23 Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 23...
- Page 24 What are the symptoms? Please be prepared to explain. Be prepared to send photos to us when on the phone. 10. Found missing or damaged parts? Let us know ASAP or send photos. Fire Pits FPSS 3-30-16 Firegear Outdoors All Weather Ignition System (AWS) REV. D Page 24...
