FPB-34DBSMT-N-SAN
FPB-26DBSMT-N-SAN
Round Flat Pan Fire Pits - Match Throw (MT) Ignition
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
These fire pits are manufactured from the factory for Natural gas only. If you intend on using LP gas then
you must purchase a LP conversion kit. Table of contents for LP converstion kit information.
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Natural Gas
(These fire pits will fit Sanctuary 2 & 3 models)
INSTALLATION PRECAUTION:
PN#90069
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description

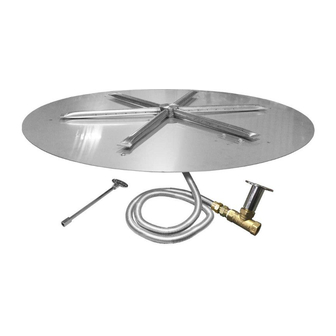

34" Round Burner with 22" Burning Spur
26" Round Burner with 16" Burning Spur
Advertisement
Table of Contents
Related Manuals for Firegear FPB-34DBSMT-N-SAN
Summary of Contents for Firegear FPB-34DBSMT-N-SAN
- Page 1 LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: MODELS Natural Gas Description FPB-34DBSMT-N-SAN 34” Round Burner with 22” Burning Spur FPB-26DBSMT-N-SAN 26” Round Burner with 16” Burning Spur Round Flat Pan Fire Pits - Match Throw (MT) Ignition Installation and Operating Instructions (These fire pits will fit Sanctuary 2 &...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. WARNING DANGER If you smell gas: Do not store or use gasoline or other...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
Fig. 2 Clearance to combustibles Model: Model: N= Natural Gas Orifice P= Propane Gas Orifice Rating FPB-34DBSMT-N-SAN OAS-NG16 FPB-34DBSMT-P-SAN OAS-LP31 125K (36.63kW) FPB-26DBSMT-N-SAN OAS-NG29 FPB-26DBSMT-P-SAN OAS-LP41 (21.98kW) Table 2 Btu Specifications Disclaimer: Btu listings are based on 7.0”WC for Natural Gas and 11.0”WC for Liquid Propane (LP) to the gas valve. - Page 5 Use the specifications listed on pages 4 and 5 for proper clearance to combustibles. Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e.
-
Page 6: High Elevation
7. These products are designed for outdoor use only. Not approved for any indoor use. 8. This fire pit is designed to have Firegear Outdoors lava rock or glass media completely covering the burner tube, so that the burner is not visible. Do not cover more than 1” above the top of burner. Use lava rock a minimum of 1”... -
Page 7: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 8: Removing Burner From Carton
PREPARING BURNERPAN FOR INSTALLATION Burner & Flat Pan Key Valve Assembly Flexible Gas Line Hardware Carton Contents Fig. 4 Removing burner pan from carton. INSTALLING KEY VALVE REMOVING BURNER PAN FROM CARTON Open carton and remove contents. Inspect for any damage The key valve contents: (1) key valve, (1) key and (1) or missing parts. - Page 9 PREPARING BURNERPAN FOR INSTALLATION Non-Combustible Fire Pit Enclousure Burner Flat Pan Valve Gas Supply Fig. 5 Typical Installation Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional support to hold the manual key valve in Non-...
- Page 10 MT OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.
-
Page 11: Replacement Parts
REPLACEMENT PARTS Drawings No to Scale REPLACEMENT PARTS LIST Qty. Description Item Part Number 34-inch round flat stainless disc (used with Sanctuary 2 model) PAN-SS34D 26-inch round flat stainless disc (used with Sanctuary 3 model) PAN-SS26D 22-inch Spur Burner (used with Sanctuary 2 fire feature) B-SPUR-22 16-inch Spur Burner (used with Sanctuary 3 fire feature) B-SPUR-16... -
Page 12: Lp Conversion Maintenance/ Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. - Page 13 U3-8D-S OAS-LPK31 SS499-8, 113-SS4-D5, 125,000 OAS-LP31 FPB-34DBSMT-N-SAN (36.63kW) U3-8D-S Table 6 LP conversion chart When converting Burners to LP gas the main burner orifice must be kept a minimum of 6-inches away from the burner connection (nipple) to prevent any back pressure at the LP orifice. See Fig. 10 below for details. Note: It is acceptable to install a 90°...
-
Page 14: Optional Accessories
Note: No hose supplied. Rated at 130,000 Btu’s Model: FG-LPRK Model: FG-60LHRK NOTE: See the Firegear Outdoors catalog for other accessories also available. FOR TECHNICAL SERVICE, CALL: (800) 966-8126 Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com... -
Page 15: Warranty
FIREGEAR LIMITED WARRANTY - 2022 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –... - Page 16 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 17 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 18 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard St.
- Page 19 Notes: Round Flat Pan - Match Throw (MT) Fire Pits REV. B Page 19...
- Page 20 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
