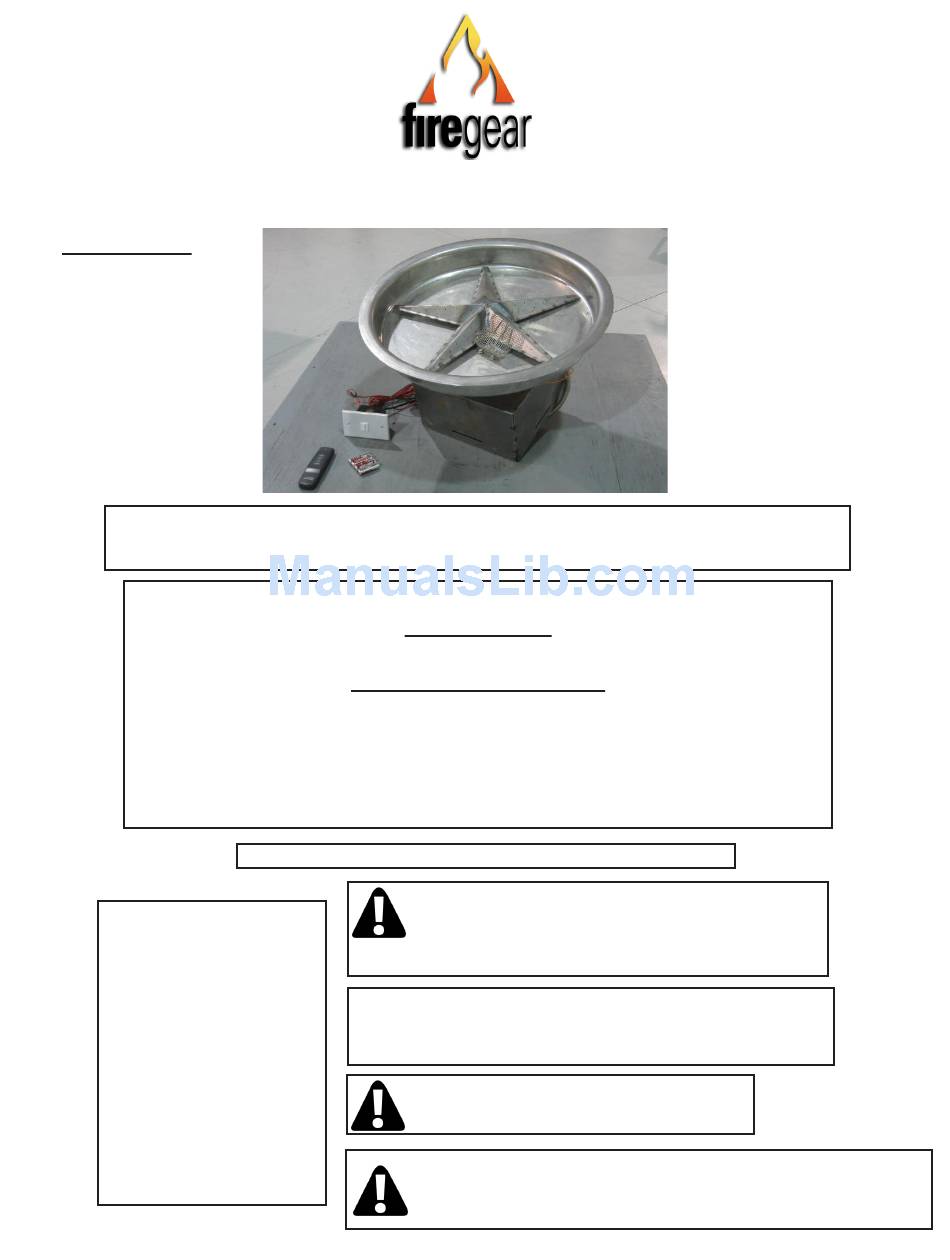

INSTALLATION AND OPERATION INSTRUCTIONS
Model Numbers
- FPB-19 AFEI/N
- FPB-25 AFEI/N
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
WARNING: If the information in these instructions is not followed exactly, a fire or explosion may
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
Immediately call your gas supplier from a neighbor's phone. Follow the gas suppliers instructions.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
WARNING
Improper installation, adjust-
ment, alteration, service, or
maintenance can cause injury
or property damage. Read
the installation, operating
and maintenance instructions
thoroughly before installing or
servicing the equipment.
WARNING
Do no leave unattended when
in use.
WARNING
For outdoor use only
WARNING
Do not use for cooking.
OUTDOOR
FIRE PIT BOWL SYSTEM
NOT ATTEMPT TO INSTALL OR OPERATE
result causing property damage, personal injury or death.
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
If you cannot reach your gas supplier, call the fire department.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
Liquid propane units are designed and certified for use only
with household liquid propane supply period. Do not use
"portable" propane tanks of less than 100-lbs, capacity, LP
units cannot be operated with 20-lb. Propane tanks commonly used
with portable, liquid propane gas grills.
This gas appliance is designed for outdoor use only. It is not intended
for installation in any building, garage, or enclosed structure. It is not
intended for installation in or on recreational vehicles or boats.
WARNING: Follow all gas leak procedures in this
manual, prior to operation.
Fuels used in gas fired appliances, and the products of combustion of such
fuels, contain chemicals know to the State of California to cause cancer,
birth defects and/or other reproductive harm. This warning is issued pursu-
ant to California Health & Safety Code Sec.25249.1
appliance.
SAFETY INFORMATION
REV 9/8/09 Page 1
Advertisement
Related Manuals for Firegear FPB-19 AFEI/N
Summary of Contents for Firegear FPB-19 AFEI/N
- Page 1 OUTDOOR FIRE PIT BOWL SYSTEM INSTALLATION AND OPERATION INSTRUCTIONS Model Numbers - FPB-19 AFEI/N - FPB-25 AFEI/N IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT ATTEMPT TO INSTALL OR OPERATE WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.
- Page 2 PARTS LIST (for FPB-19 AND FPB-25AFEI) PART NAME DESCRIPTION SS Star Burner 19 Star Burner (19 Inch) (1) SS Star Burner 25 Star Burner (25 Inch) (1) SS Fire Pan 19 Fire Pan (19 Inch) (2) SS Fire Pan 25 Fire Pan (25 Inch) (2) AF - 5000 MOD AF - 5000 Module (3)
- Page 3 (11) (10) (12) (15) (16) (13) (14) (19) (20) (17) (18) REV 9/8/09 Page 3...
- Page 4 WARNING Proper clearances from combustible, construction and materials must be maintained from all sides, top and bottom of this appliance. This appliance should never be placed on any combustible surface. This appliance should never be placed under any combustible construction or materials. This appliance should never be placed closer than forty-eight (36’’) inches from any side to any combustible construction or materials.
- Page 5 • Follow the local code requirements for the Gas Type being used. This FPB should be installed in accordance with local codes and ordinances or in the absence of local codes, with the latest National Fuel Gas Code, ANSI Z223.1 or CSA B149.1, Natural and Propane Installation Code in Canada. • Fire Stars create high temperatures, it is very important to have any combustible at a safe distance. • IF 120 VAC is going to be used to Power this system you must and is required to follow all local codes for installation of this electrical outlet. A breaker on wall switch with approved outdoor outlet must be used to insure safety to this Firegear “Fire Pit Bowl System.” When not in use the breaker should be in the OFF position. • Normal operation of the Fire Pit System is with a battery box that is supplied with your system (Fig 4). The battery box has 12 feet of sleeved wire that is to be placed within the junction box provided. This wire should not be cut, and the junction box can be placed in the facing of the vertical finish of the fire pit, if you place the wire underground you should install those wires into an approved protection material. Fig. 3 Fig. 4 •...
- Page 6 INSTALLATION OF THE FIRE RING SYSTEM IN THE PIT ENCLOSURE • Gas lines and fittings must be installed in to the non-combustible structure. All gas connections must be leak tested before installa- tion of the fire ring system. Soapy water, leak detection is required before regular use of the fire pit. •...
- Page 7 All handheld remote’s are shipped with this system are already learned to the module. • Additional transmitters can be learned to this electronic module, up to a total of three transmitters. Contact Firegear offices to discuss additional transmitter options. •...
-
Page 8: Operating Sequence
TROUBLE SHOOTING THE FIREGEAR FIRE PIT NOWL SYSTEM 19’’, 25’’ DIRECT SPARK IGNITION The Firegear Fire Pit Bowl System is controlled by a module inside the value box under the burner. The control module (AF-5000 MOD) has built-in error detection for common operating fault conditions. When the module detects an error, it will emit a series of beeps. The beeping pattern will help to determine the cause of the operating fault. - Page 9 NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFER- ENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFI- CATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. FOR TECHNICAL SERVICE, CALL: U.S. INQUIRIES 888-220-4333 734-595-3550 www.firegear.com MANUFACTURED EXCLUSIVELY FOR FIREGEAR LLC REV 9/8/09 Page 9...
-
Page 10: Warranty
WARRANTY FIREGEAR LLC warranty the FIRE PIT BOWL SYSTEM for (5) five years on only the Stainless Steel Components for the original owner, and this warranty is not transferable. Should any of the Stain- less Steel components fail because of the workmanship or material for the original date of purchase.
