Natural Gas
FPB-19RBSMT-N
FPB-25RBS22MT-N
FPB-29RBS22MT-N
FPB-33RBS31MT-N
FPB-20SBSMT-N
FPB-26SBS22MT-N
FPB-32SBS31MT-N
FPB-38SBS36MT-N
Outdoor Round & Square "Drop in Pans"
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS

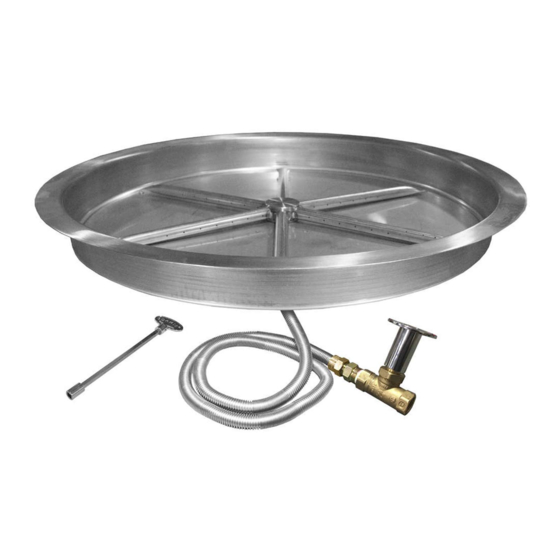

19" Round Stainless Pan with 16" Burning Spur
25" Round Stainless Pan with 22" Burning Spur
29" Round Stainless Pan with 22" Burning Spur
33" Round Stainless Pan with 31" Burning Spur
20" Square Stainless Pan with 16" Burning Spur
26" Square Stainless Pan with 22" Burning Spur
32" Square Stainless Pan with 31" Burning Spur
38" Square Stainless Pan with 36" Burning Spur
with Match Throw (MT) Fire Pits
INSTALLATION PRECAUTION:
Manual #90007
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Description
Advertisement
Table of Contents
Related Manuals for Firegear FPB-19RBSMT-N
Summary of Contents for Firegear FPB-19RBSMT-N
- Page 1 MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: MODELS Natural Gas Description FPB-19RBSMT-N 19” Round Stainless Pan with 16” Burning Spur FPB-25RBS22MT-N 25” Round Stainless Pan with 22” Burning Spur FPB-29RBS22MT-N 29” Round Stainless Pan with 22” Burning Spur FPB-33RBS31MT-N 33”...
- Page 2 CARBON MONOXIDE HAZZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING Do not store our use gasoline or other If you smell gas:...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Specifications
Model: N = Natural Gas Burner Min./Max. Inside Ground Side Combustible Combustible Depth Install Opening Level Size Wall Ceiling Floor FPB-19RBSMT-N 2½” 19¼” - 20½” 19” 8” 36” 96” 18” 16” FPB-25RBS22MT-N 2½” 25¼” - 27½” 25” 8” 36” 96”... -
Page 5: Preparation For Non-Combustible Structure
½” psig (3.5kPa) Examples of Cross Ventilation VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE 2- Firegear 6 x12 vents Fire pits are subjected to many outdoor elements such as rain, snow, wind, heat or cold. A minimum of 18 square inches... -
Page 6: Installation Into An Approved Enclosure
8. These products are designed for outdoor use only. Not approved for any indoor use. 9. This fire pit is designed to have Firegear Outdoors lava rock completely covering the Spur burner, so that the burner is not visible. Do not cover more than 1” above the top of the covered burner. When purchasing lava rock use 1”... -
Page 7: Typical Installation Drawings
Non-Combustible Spur Burner Fire Pit Pan Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional Non-... -
Page 8: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 9: Replacement Parts
MT REPLACEMENT PARTS Drawings not to scale. MT Burning Spur Fire Pits REV. C Page 9... - Page 10 MT REPLACEMENT PARTS Qty. Item Description Part Number 19-inch Round Stainless Pan PAN-SS19R 25-inch Round Stainless Pan PAN-SS25R 29-inch Round Stainless Pan PAN-GV29R 33-inch Round Stainless Pan PAN-GV33R 20-inch Square Stainless Pan PAN-SS20S 26-inch Square Stainless Pan PAN-SS26S 32-inch Square Stainless Pan PAN-SS32S 38-inch Square Stainless Pan PAN-SS38S...
-
Page 11: Converting To Lp Gas
CONVERTING TO LP GAS Converstion Kit Common Parts Btu Ratings LP Orifice OAS-LPK41 SS499-8, 113SS4-D5, 75,000 OAS-LP41 (21.98kW) U3-8D-S OAS-LPK31 SS499-8, 113SS4-D5, 125,000 OAS-LP31 (36.63kW) U3-8D-S OAS-LPK26 SS499-8, 113SS4-D5, 175,000 OAS-LP26 U3-8D-S (51.28kW) OAS-LPK12 SS499-8, 113SS4-D5, 250,000 OAS-LP12 U3-8D-S (73.26kW) Table 6 LP conversion chart When converting Burners to LP gas the main burner orifice must be kept a minimum of 6-inches away from the burner connection (nipple) to prevent any back pressure at the LP orifice. -
Page 12: Trouble Shooting
2. Ensure fire pit enclosure has proper drainage for water and proper ventilation to dry out. ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. - Page 13 Expanded View of Match Throw (MT) Fire Pits Fire Pit Pan Spur Burner / ” Washer Brass Nut OASNG# (Burner Ori ce) U3-8D-S (Fitting) Note: Use joint compound or Te on tape resistant to all T200-9898-46 gasses on all male NPT (Flex Connector) threads;...
- Page 14 FIREGEAR LIMITED WARRANTY - 2021 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 15 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 16 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 17 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors Firegear Outdoors 17322 Gothard Street,...
- Page 18 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
