Outdoor Match Throw (MT) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MODELS
29" Round Galvanized Pan & Firestar
33" Round Galvanized Pan & Firestar
INSTALLTION PRECAUTION:
Description

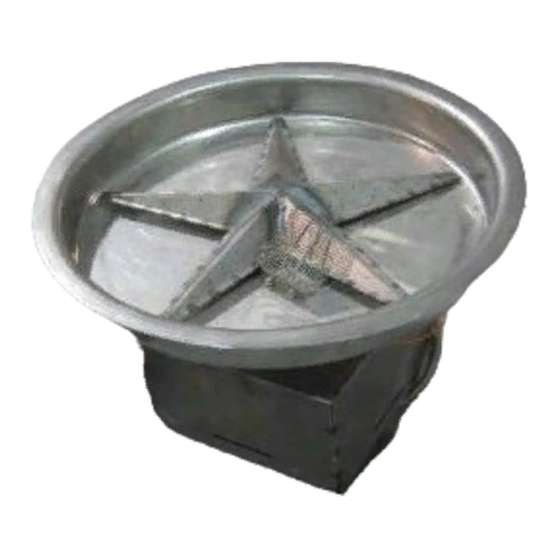

19" Round Stainless Pan & Firestar
25" Round Stainless Pan & Firestar
14" Square Stainless Pan & Firestar
20" Square Stainless Pan & Firestar
26" Square Stainless Pan & Firestar
32" Square Stainless Pan & Firestar
38" Square Stainless Pan & Firestar
Advertisement
Table of Contents
Related Manuals for Firegear FPB-19RFSMT-N
Summary of Contents for Firegear FPB-19RFSMT-N
- Page 1 MODELS Match Throw (MT) Description FPB-19RFSMT-N 19” Round Stainless Pan & Firestar FPB-25RFSMT-N 25” Round Stainless Pan & Firestar FPB-14SFSMT-N 14” Square Stainless Pan & Firestar FPB-20SFSMT-N 20” Square Stainless Pan & Firestar FPB-26SFSMT-N 26” Square Stainless Pan & Firestar FPB-32SFSMT-N 32”...
- Page 2 D ANGER CARBON M ONOXIDE H AZZARD This a ppliance c an p roduce c arbon m onoxide which h as n o o dor. ...
-
Page 3: Table Of Contents
Fuels u sed i n g as f ired a ppliances, a nd t he p roducts o f c ombustion o f s uch f uels, c ontain chemicals ... - Page 4 ALL fire pits in this manual come equipped for Natural gas (NG) however, if you are considering converting to Liquid Propane (LP) gas use the guidelines below for proper tank storage and ensure you purchase the proper orifice air shutter kit. REMOTE PROPANE / LP GAS ENCLOSURES INSTALLATION GUIDELINES If this fire pit is permanently connected to a gas piping...
-
Page 5: Specifications
SPECIFICATIONS Model: Pan Depth Min/Max Cutout Inside Pan Ground Level Match Throw (MT) FPB-19RFSMT-N 2.625” 19.25”/21.5” 19” 8” FPB-25RFSMT-N 2.625” 25.25”/27.5” 25” 8” FPB-14SFSMT-N 2.625” 14.25”/15.75” 14” 8” FPB-20SFSMT-N 2.625” 20.25”/21.75” 20” 8” FPB-26SFSMT-N 2.625” 26.25”/27.75” 26” 8” FPB-32SFSMT-N 2.625”... -
Page 6: Hard Piping To Fire Pit
WARNING: Proper clearances from combustible, construction and materials must be maintained from all sides, top and bottom of this appliance. This appliance should never be placed on any combustible surface. This appliance should never be placed under any combustibles closer then 96-inches. This appliance should never be placed closer than 36-inches from any side to any combustible construction or materials (See fig. -
Page 7: Requirements
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible as well. 2. Only use ¾” gas supply line to the fire pit. Based on the selection of the fire pit size, the proper brass fittings should be used to ensure a proper installation. -
Page 8: Gas Supply
Non-Combustible Fire Pit Pan Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Gas supply shut-off and flex line to the key valve are not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional support to hold the manual key valve in... -
Page 9: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 10: Replacement Parts
REPLACEMENT PARTS Firestar Fire Pits REV. 7-22-14 Page 9... -
Page 11: Replacement Parts List
REPLACEMENT PARTS Qty. Item Description Part Number 19-inch Round Stainless Pan SS19R 25-inch Round Stainless Pan SS25R 14-inch Square Stainless Pan SS14S SS20S 20-inch Square Stainless Pan SS26S 26-inch Square Stainless Pan SS32S 32-inch Square Stainless Pan SS38S 38-inch Square Stainless Pan PAN-GV29R 29-inch Round Black Galvanized Pan PAN-GV33R... -
Page 12: Fire Pit Maintenance/ Trouble Shooting
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 13: Optional Accessories
OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Stainless lid for 19” thru 33” round Lava Stones 1” to 2” size. (20lbs.) LP regulator with 3/8”... -
Page 14: Warranty
LIMITED WARRANTY Skytech II, Inc. (Firegear Outdoors) hereby warrants to he Owner must provide a bill of sale, cancelled check, or payment record to verify purchase date the ORIGINAL PURCHASER of this Fire Pit System, that it will be free from material and workman- and establish warranty period.
