Natural Gas
FPB-G16RBSMT-N
FPB-G25RBSMT-N
FPB-G29RBSMT-N
FPB-G33RBSMT-N
FPB-19RBSMT-N
FPB-25RBSMT-N
FPB-20SBSMT-N
FPB-26SBSMT-N
FPB-32SBSMT-N
FPB-38SBSMT-N
Outdoor Match Throw Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE
MH# 60069
MODELS
Description

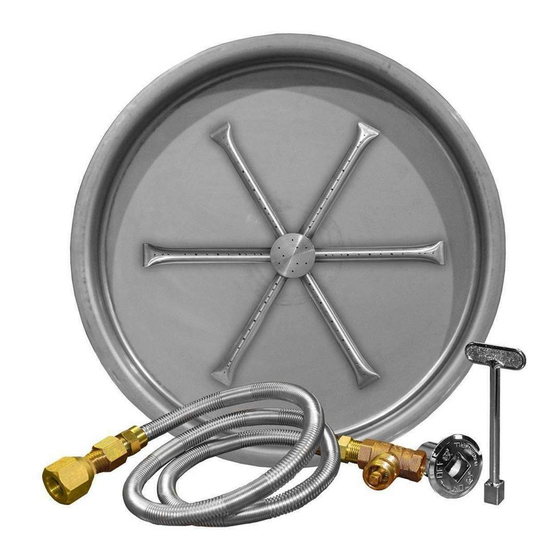

16" G90 Black Pan & Spur Kit
25" G90 Black Pan & Spur Kit
29" G90 Black Pan & Spur Kit
33" G90 Black Pan & Spur Kit
19" Round Stainless Pan & Spur Kit
25" Round Stainless Pan & Spur Kit
20" Square Stainless Pan & Spur Kit
26" Square Stainless Pan & Spur Kit
32" Square Stainless Pan & Spur Kit
38" Square Stainless Pan & Spur Kit
INSTALLATION PRECAUTION:
Propane
FPB-G16RBSMT-P
FPB-G25RBSMT-P
FPB-G29RBSMT-P
FPB-G33RBSMT-P
FPB-19RBSMT-P
FPB-25RBSMT-P
FPB-20SBSMT-P
FPB-26SBSMT-P
FPB-32SBSMT-P
FPB-38SBSMT-P
Advertisement
Table of Contents
Related Manuals for Firegear FPB-G16RBSMT-N
Summary of Contents for Firegear FPB-G16RBSMT-N
- Page 1 MH# 60069 MODELS Natural Gas Description Propane FPB-G16RBSMT-N FPB-G16RBSMT-P 16” G90 Black Pan & Spur Kit FPB-G25RBSMT-N FPB-G25RBSMT-P 25” G90 Black Pan & Spur Kit FPB-G29RBSMT-N FPB-G29RBSMT-P 29” G90 Black Pan & Spur Kit FPB-G33RBSMT-N 33” G90 Black Pan & Spur Kit...
- Page 2 !"#$%& )"&*+#,-+#+.(!%,/"00"&! 1234,56673589:,958,6;<=>9:,95;?<8,@<8<A3=:, B2392,254,8<,<=<;C, D438E,3F,38,58,:897<4:=,4659:,958,G377,H<>C, #:I:;,>4:,F234,56673589:,38,58,:897<4:=,4659:, 4>92,54,5,95@6:;J,F:8FJ,95;,<;,2<@:C, !"#$%& '"&#(#$ "#!$%&!'()**!+,'-! .%!/%0!'0%1)!%1!&')!+,'%*2/)!%1!%03)1! #*,((,4*)!5,6%1'!,/7!*28&27'!2/!03)! 5292/20$!%#!032'!%1!%03)1!,66*2,/9):! 1. Shut off gas to the appliance. ;/!<=>9$*2/7)1!/%0!9%//)90)7!#%1!&')! 2. Extinguish any open flame. '3,**!/%0!4)!'0%1)7!2/!03)!5292/20$!%#!032'! %1!,/$!%03)1!,66*2,/9):! 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
-
Page 3: Table Of Contents
Fuels used in gas fired appliances, and the products of combustion such as fuels, contain chemicals known to cause cancer, birth defects and/or other reproductive harm. This warning is issued pursuant to the California Health & Safety Code Sec. 25249.1 TABLE OF CONTENTS Specifications Preparation for Non-Conbustible Structure... -
Page 4: Specifications
SPECIFICATIONS Model: Model: Natural Gas (NG) Propane Gas (LP) Min./Max. Inside Ground Side Combustible Combustible Depth Install Opening Level Wall Ceiling Floor FPB-G16RBSMT-N FPB-G16RBSMT-P 2.500” 16.5”/17.25” 15.875” 8” 14” 57” 15.5” FPB-G25RBSMT-N FPB-G25RBSMT-P 2.500” 25”/25.5” 23.875” 8” 16” 69” 18”... -
Page 5: Preparation For Non-Conbustible Structure
WARNING: Proper clearances from combustible materials must be maintained from all sides, top and bottom of this appliance. Use the specifications listed on page 3 for proper clearance to combustibles. PREPARING A NON-COMBUSTIBLE STRUCTURE The fire pit can be installed on a flat, stable surface, away from any combustible materials. Install Fire pit on any level, outdoor non-combustible, flat stable surface or a combustible floor according to the clearances specified in this manual. -
Page 6: Installation Into An Approved Enclosure
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual.. We recommend using 3/4”... -
Page 7: Typical Installation Drawings
Non-Combustible Fire Pit Pan Fire Pit Enclousure Key Valve Shut-O Gas Supply NOTE: Key valve and flexible gas lines are supplied. Gas shut-off is not supplied. Note: A 1¼” x 2” black iron or galvanized coupler/nipple (not supplied) can be used as a spacer between the manual valve and the valve flange to add additional Non-... -
Page 8: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 9: Replacement Parts
MT REPLACEMENT PARTS Drawings are not proportioned. MT Burning Spur Fire Pits REV. 5-7-14 Page 8... -
Page 10: Replacement Parts List
MT REPLACEMENT PARTS Qty. Item Description Part Number Pan-GV16R 16-inch G90 Round Galvanized Black Pan Pan-GV25R 25-inch G90 Round Galvanized Black Pan Pan-GV29R 29-inch G90 Round Galvanized Black Pan Pan-GV33R 33-inch G90 Round Galvanized Black Pan Pan-SS19R 19-inch Round Stainless Pan Pan-SS25R 25-inch Round Stainless Pan 20-inch Square Stainless Pan... -
Page 11: Fire Pit Maintenance/ Trouble Shooting
2. Ensure fire pit enclosure has proper drainage for water and proper ventilation to dry out. OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. - Page 12 (855) 498-8324 FOR TECHNICAL SERVICE, CALL: Firegear Outdoors 9230 Conservation Way Fort Wayne, IN 46809 For Sales: (888) 672-8929 www.firegearoutdoors.com WEB SITE: MT Burning Spur Fire Pits REV. 5-7-14 Page 11...
