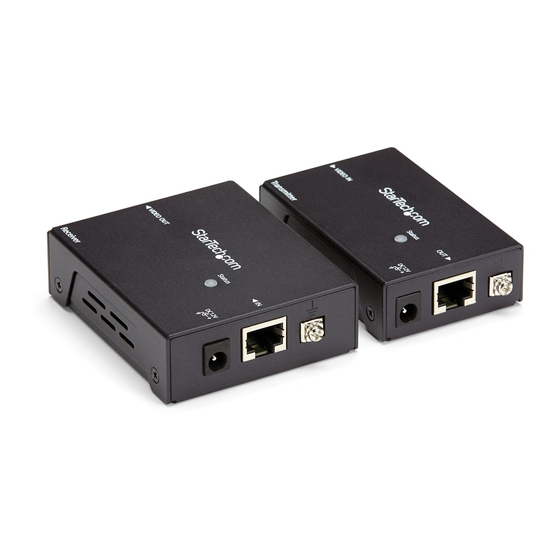

HDMI® over Cat 5e/6 Extender - 70m
ST121HDBTE
*actual product may vary from photos
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 02/24/2015
Advertisement
Table of Contents
Related Manuals for StarTech.com ST121HDBTE
Summary of Contents for StarTech.com ST121HDBTE
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 02/24/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Product Diagram ..................1 Front View – Transmitter/Receiver Unit ..................... 1 Rear View – Transmitter/Receiver Unit ....................1 Introduction ....................2 Packaging Contents ..........................2 System Requirements ..........................2 Installation ....................3 Preparing Your Site ........................... 3 Hardware Installation ..........................3 Specifications ..................4 Technical Support ..................5 Warranty Information ................5... -
Page 4: Product Diagram
Product Diagram Front View – Transmitter/Receiver Unit Transmitter Unit Receiver Unit 1. HDMI® IN 1. HDMI® OUT 2. Status LED 2. Status LED Rear View – Transmitter/Receiver Unit Transmitter Unit Receiver Unit 1. Power Jack 1. Power Jack 2. LINK (RJ-45 Connector) 2. -
Page 5: Introduction
Introduction The ST121HDBTE HDMI® over CAT5e/6 Video Extender kit lets you extend HDMI video and audio up to 230 feet (70 Meters) over a single Cat5 cable. For added versatility both the Transmitter and Receiver can be powered by the same single power source using Power Over Cable (POC). -
Page 6: Installation
Installation Preparing Your Site 1. Determine where the local video source (i.e. computer, Blu-ray Player) will be located and set up the device. 2. Determine where the remote display will be located and place/ mount the display appropriately. NOTE: This HDMI® extender kit features Power over cable, allowing both the transmitter and Receiver to be powered from a single power source that can be connected at either end of the connection. -
Page 7: Specifications
3. Install Receiver Unit a) Position the Receiver Unit near the video display (i.e. television, projector). b) Connect the video source to the HDMI® OUT on the Receiver Unit using an HDMI® cable. c) (Optional) If you’ve chosen to power the kit from the Receiver side, connect the provided power supply. -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
