StarTech.com ST121USBHD Quick Start Manual

HDMI over CAT6 Extender with 4-port USB Hub
Product ID
ST121USBHD
Receiver
1
2
3
Receiver
7
8
Cable Distance
Cable Type
Shielded CAT6
Shielded CAT6
Unshielded CAT6
Shielded/Unshielded CAT5e
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Transmitter
1
4
5
6
Transmitter
7 8
Distance Max Resolution
50m 1080i
40m 1080p
30m 1080p
15m 1080p
Component
1

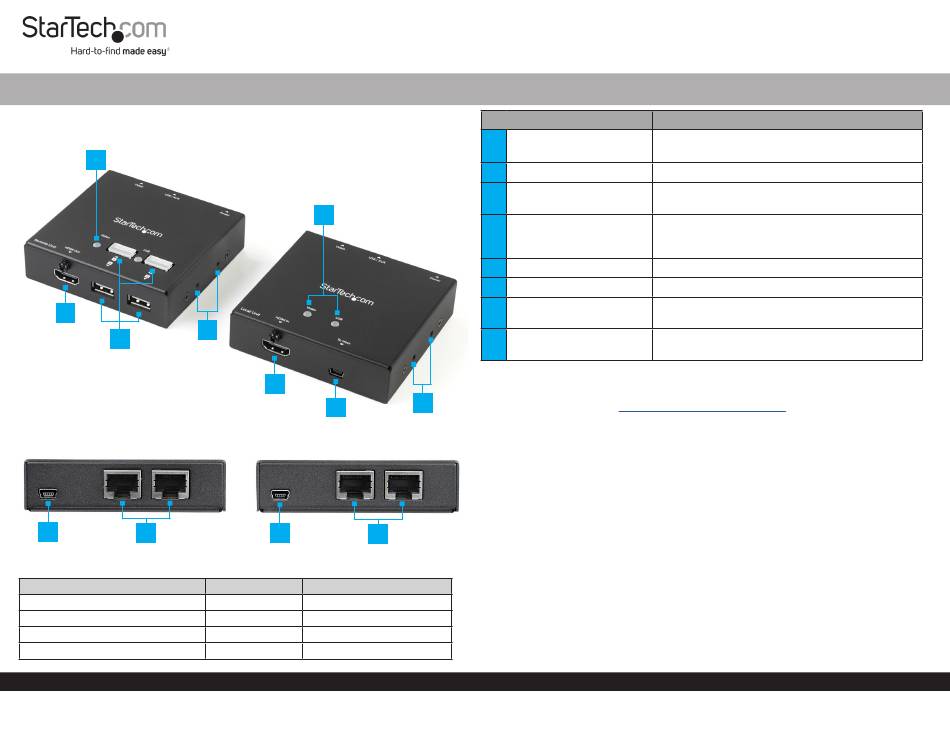

LED Indicators
2 HDMI Output
3
USB 2.0 Hub Ports
4
Mounting Holes
5
HDMI Input
6 USB Host Connection
7
Mini-USB Power Input
8
RJ45 Ports
Product Information
For the latest drivers/software, technical specifications, and declarations of
4
conformance, please visit:
Requirements
HDMI Source Device x 1
•
HDMI Display x 1
•
HDMI Cables x 2
•
(Optional) USB Peripherals x 4
•
(Optional) USB Wall Charger x 2
•
(Optional) Phillips Head Screwdriver for Mounting x 1
•
Package Contents
HDMI Over CAT6 Transmitter x 1
•
HDMI Over CAT6 Receiver x 1
•
Ethernet Cables x 2
•
USB to Mini-USB Cables x 2
•
Universal Power Adapter (NA/EU/EJ/AU) x 1
•
Mounting Kit x 1
•
Quick-Start Guide x 1
•
Function
Status Lights for Video and USB Connections
•
See below for more information
•
Connect to an HDMI Display
•
Connect a Mouse, Keyboard, or other USB
•
Peripherals
Install the included Mounting Kit
•
Two Holes on each side of the Transmitter
•
and Receiver
Connect to an HDMI Source Device
•
Connect to a USB Port on the Host Device
•
Connect to a USB Port on the Host Device, or to
•
an available USB Wall Charger
Connect the Transmitter and Receiver together,
•
using a CAT6/5e Ethernet Cable (sold separately)
www.StarTech.com/ST121USBHD
Quick-Start Guide
Manual Revision: June 13, 2023 8:45 AM
