Altronix HubSat4DV Installation Manual page 6

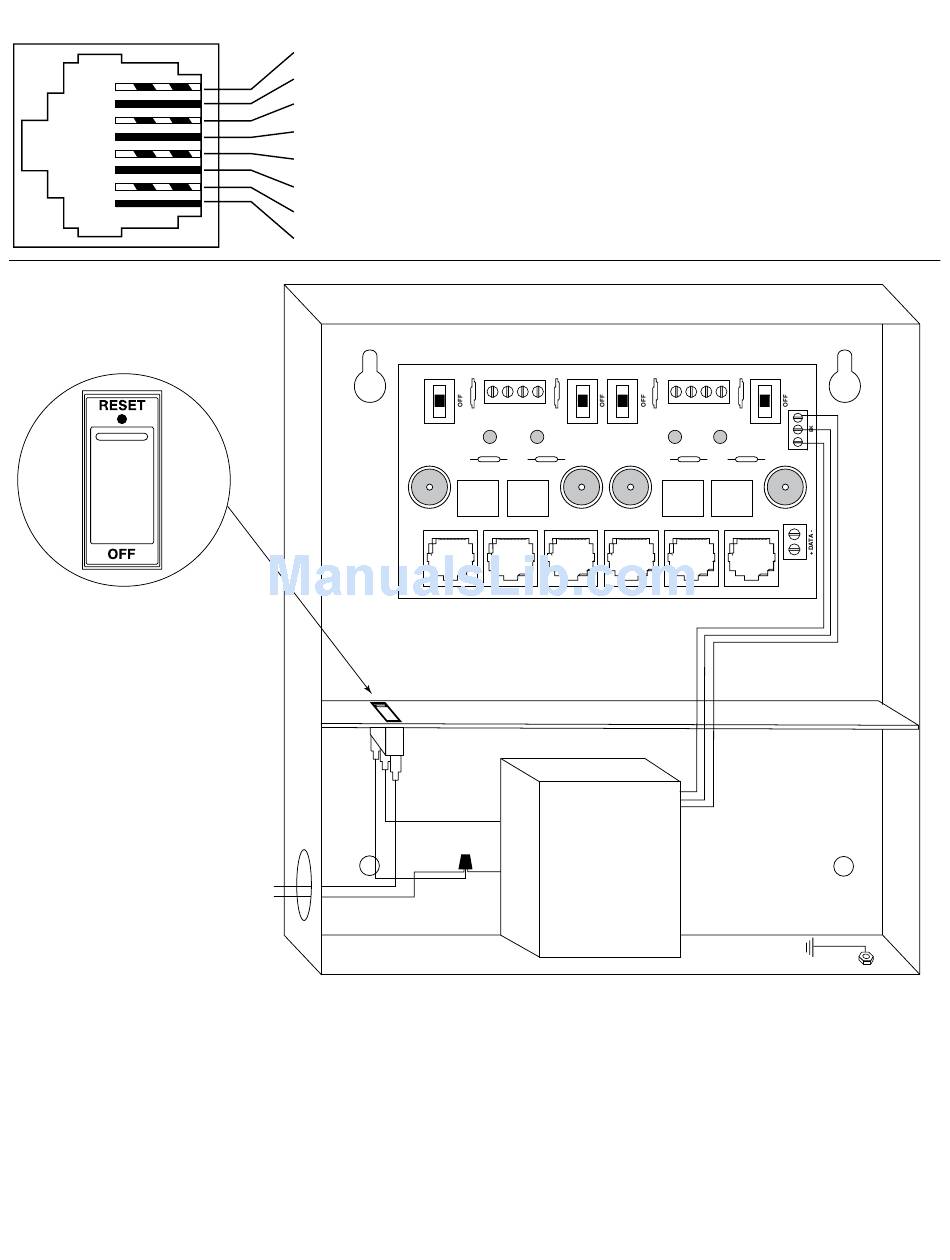

Fig. 3 - CAT5 Wiring Color Codes
(ON)
Fig. 4a
Illuminated master power
disconnect circuit breaker:
• OFF position or
circuit breaker tripped –
Switch not illuminated.
• RESET (ON) position –
Switch illuminated.
- 6 -
1 - White/Orange [VIDEO +]
2 - Orange [VIDEO -- ]
3 - White/Green [DATA +]
4 - Blue [AC 1]
5 - White/Blue [AC 2]
6 - Green [DATA -- ]
7 - White/Brown [AC 2]
8 - Brown [AC 1]
Fig. 4
220VAC
Input
50/60 Hz.
28VAC 28VAC
AUX1 AUX2
24VAC 24VAC
VIDEO1 VIDEO2
PVD1 PVD2 DATA 1-4
Red
Lead
Black
XFMR
Lead
non power-
limited
28VAC 28VAC
AUX3 AUX4
0 (Br)
24VAC 24VAC
24(YL)
VIDEO3 VIDEO4
VIDEO 1-4 PVD3 PVD4
Green Lead
(Ground)
HubSat4DV
