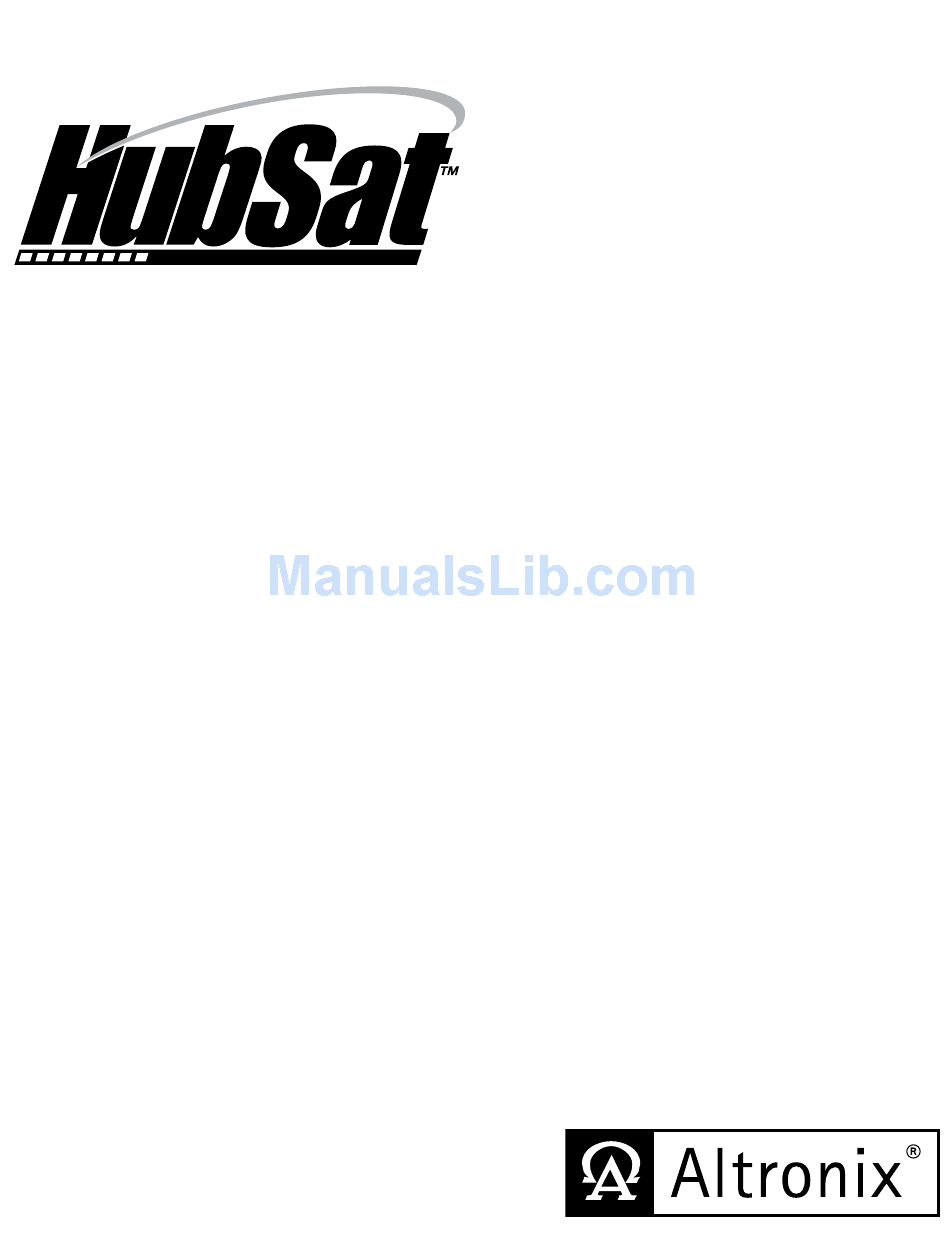

Video • Data • Power

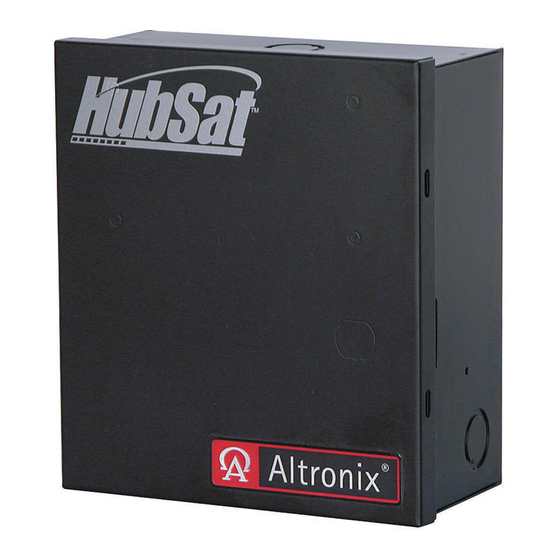

Passive UTP Transceiver Hub
with Integral Camera Power
Installation Guide
Models Include:
HubSat4DV
- Four (4) Camera Channels
HubSat42DV
- HubSat4DV w/four (4) HubWayAv Video Balun/Combiners for 24VAC Cameras
HubSat43DV
- HubSat4DV w/four (4) HubWayDv Video Balun/Combiners for 12VDC Cameras
More than just power.
TM
Rev. 052708
Advertisement
Table of Contents
Related Manuals for Altronix HubSat4DV
Summary of Contents for Altronix HubSat4DV
-
Page 1: Installation Guide
Integral Camera Power Installation Guide Models Include: HubSat4DV - Four (4) Camera Channels HubSat42DV - HubSat4DV w/four (4) HubWayAv Video Balun/Combiners for 24VAC Cameras HubSat43DV - HubSat4DV w/four (4) HubWayDv Video Balun/Combiners for 12VDC Cameras More than just power. Rev. 052708... -
Page 2: Specifications
3. Connect 220VAC 50/60Hz to the black and red flying leads of open frame transformer. Secure ground wire (Green) to earth ground (Fig. 5, pg. 7). The power LEDs (Green) for Channels 1-4 of the HubSat4DV will illuminate when AC power is present (Fig. 1e, pg. 4) 4. - Page 3 (Fig. 1d, pg. 4). 5. Video connection between HubSat4DV and HubWayV/HubWayLDV/HubWayLDHV: Plug the RJ45 connector at one end of a structured cable into the RJ45 jack marked [Video 1 - 4] of the HubSat4DV (Fig. 1g, pg. 4). Plug the RJ45 connector at the opposite end of the structured cable into the RJ45 jack marked [Channels 1-4, Channels 5-8, Channels 9-12, Channels 13-16] of the HubWayV/HubWayLDV/HubWayLDHV (Fig.
- Page 4 Plug the RJ45 connector at one end of a structured cable into the RJ45 jack marked [PVD1] of the HubSat4DV (Fig. 1e, pg. 4). Plug the RJ45 connector at the opposite end of the structured cable into the RJ45 jack of the Video Balun/Combiner located at camera 1.
- Page 5 1. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 4a, pg. 6). 2. Connect one end of the coaxial cable to the BNC connector marked [Video1] of the HubSat4DV (Fig. 1a, pg. 4). Connect the opposite end of the coaxial cable to the BNC video output of camera 1 (Fig. 6a, pg. 7).
- Page 6 Illuminated master power disconnect circuit breaker: • OFF position or circuit breaker tripped – Switch not illuminated. • RESET (ON) position – Switch illuminated. Lead Black XFMR Lead 220VAC non power- Input limited 50/60 Hz. Green Lead (Ground) - 6 - HubSat4DV...
- Page 7 Typical Application Drawing for HubSat4DV as a Passive UTP Transceiver Hub with Integral Camera Power: Fig. 5 Head End Equipment (DVR) Monitor RS485 Data Video Data Power Data CAT-5 Video HubWayAv Power CAT-5 Video Balun Combiner 24VAC PTZ HubWayDv Camera...
-
Page 8: Enclosure Dimensions
5.25” 1” (25.4mm) (133.35mm) (25.4mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIHubSat4DV J17N MEMBER - 8 - HubSat4DV...
