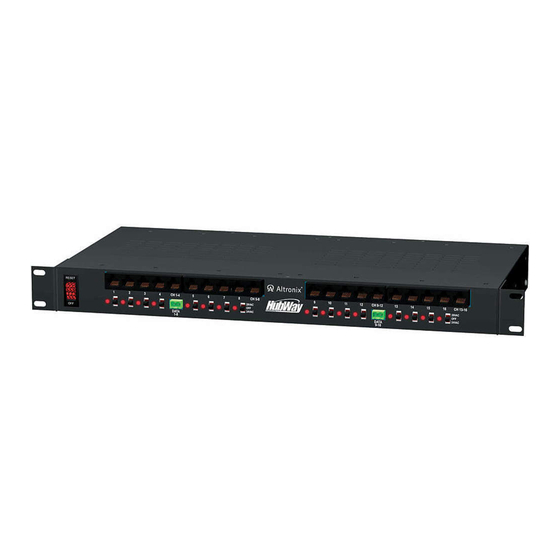

Video • Data • Power
Passive UTP Transceiver Hub
with Integral Camera Power
Installation Guide
Models Include:
HubWay8D
- Eight (8) Camera Channels
HubWay82D
- HubWay8 w/eight (8) HubWayAv
Video Balun/Combiners for 24VAC Cameras
HubWay83D
- HubWay8 w/eight (8) HubWayDv
Video Balun/Combiners for 12VDC Cameras
Rev. 032108
HubWay16D
- Sixteen (16) Camera Channels
HubWay162D
- HubWay16 w/sixteen (16) HubWayAv
Video Balun/Combiners for 24VAC Cameras
HubWay163D
- HubWay16 w/sixteen (16) HubWayDv
Video Balun/Combiners for 12VDC Cameras
More than just power.
TM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Altronix HubWay8D
Summary of Contents for Altronix HubWay8D
-
Page 1: Installation Guide
Video • Data • Power Passive UTP Transceiver Hub with Integral Camera Power Installation Guide Models Include: HubWay8D HubWay16D - Eight (8) Camera Channels - Sixteen (16) Camera Channels HubWay82D HubWay162D - HubWay8 w/eight (8) HubWayAv - HubWay16 w/sixteen (16) HubWayAv... -
Page 2: Common Specifications
Video Balun/Combiners for 12VDC Cameras. Installation Instructions: 1. Set the input voltage selector switch located on the left side of the HubWay8D/16D unit (facing front panel) for 115VAC or 230VAC operation (Fig. 1h, pg. 4). 2. Attach mounting brackets to HubWay unit for rack or wall mount installation (Figs. 6-7, pg. 8). Affix rubber pads to HubWay for shelf installation (Fig. - Page 3 HubWay8D or HubWay16D unit (polarity must be observed) (Fig. 1e, pg. 4). Note: The Data input terminals of the HubWay8D or HubWay16D must be wired in parallel for proper operation. When using fixed cameras disregard this step.
- Page 4 + -- - 4 - HubWay Passive Unit...
- Page 5 Structured Structured Connector Connector Cable from AC Power Cable from 12VDC Power of Camera of Camera HubWay8D to Camera HubWay8D to Camera HubWay16D HubWay16D Data to Data to Camera Camera HubWayAv passes AC voltage from pins 4, 5, 7, 8 to HubWayDv converts AC voltage to DC voltage from pins terminals marked [AC Power] (Fig.
-
Page 6: Typical Applications
Typical Applications: Fig. 4 Head End Equipment (DVR) RS485 Monitor Video Data Rear AC POWER CH 1-4 CH 5-8 28VAC 24VAC + DATA - Front CAT-5 Video Data Four (4) Video Video Video Video (CAT-5) signals on a Power Data Data Power single CAT-5... -
Page 7: Top & Bottom
1U EIA 19” Rack Mount Chassis Mechanical Drawing & Dimensions: 1.625”H x 19.125”W x 8.5”D REAR 1.625" AC POWER TOP & BOTTOM 17.625" 8.5" FRONT CH 1-4 CH 5-8 CH 9-12 CH 13-16 28VAC 28VAC 24VAC 24VAC + DATA -- + DATA -- 9-16 19.125"... - Page 8 Four (4) rubber pads. Rubber Pad Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIHubWay8D/HubWay16D I11H MEMBER - 8 -...
