Passive UTP Transceiver Hub
with Integral Camera Power
Installation Guide
Models Include:

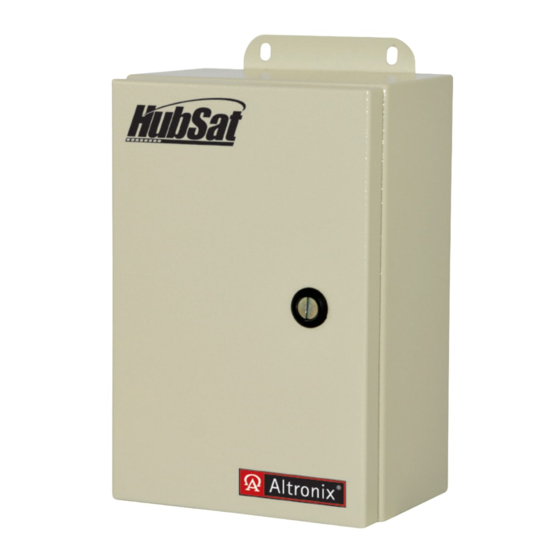

HubSat4WPiV
- Four (4) Channel Outdoor Passive UTP Transceiver Hub with Integral Isolated Camera Power
HubSat42WPiV
- Four (4) Channel Outdoor Passive UTP Transceiver includes four (4) HubWayAv
Video Balun/Combiners
HubSat43WPiV
- Four (4) Channel Outdoor Passive UTP Transceiver includes four (4) HubWayDv
Video Balun/Combiners
Rev. 060210
More than just power.
TM
Advertisement
Related Manuals for Altronix HubSat4WPiV
Summary of Contents for Altronix HubSat4WPiV
- Page 1 Passive UTP Transceiver Hub with Integral Camera Power Installation Guide Models Include: HubSat4WPiV - Four (4) Channel Outdoor Passive UTP Transceiver Hub with Integral Isolated Camera Power HubSat42WPiV - Four (4) Channel Outdoor Passive UTP Transceiver includes four (4) HubWayAv...
-
Page 2: Specifications
24VAC or 28VAC PTC protected outputs with surge suppression. Optionally, the HubSat4WPiV can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cables back to the HubWay, HubWayLD or HubWayLDH Passive and Active UTP Transceiver Hubs. In addi- tion, the HubSat4WPiV provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs. - Page 3 11. Set illuminated master power disconnect circuit breaker to the RESET (ON) position (Fig. 5a, pg. 6) power LEDs (Green) of the HubSat4WPiV will illuminate when AC power is present (Fig. 2e, pg. 4) and HubWayAv or HubWayDv Video Balun/Combiner LEDs will illuminate indicating power is present (Fig. 3b, 2d, pg. 6).
- Page 4 1. Set illuminated master power disconnect circuit breaker to the (OFF) position (Fig. 5a, pg. 6). 2. Connect one end of the coaxial cable to the BNC connector marked [Video1] on HubSat4WPiV (Fig. 2a, pg. 4). Connect the opposite end of the coaxial cable to the BNC video output of camera 1 (Fig. 7a, pg. 7).
- Page 5 HubWayDv converts AC voltage to DC voltage from pins 4, 5, 7, 8 to terminals marked [AC Power] (Fig. 3, pg. 5). 4, 5, 7, 8 to terminals marked [-- 12VDC +] (Fig. 3, pg. 5). HubSat4WPiV - 5 -...
- Page 6 Illuminated master power disconnect circuit breaker: • OFF position or Circuit breaker tripped – Black Switch not illuminated. • RESET (ON) position – Switch illuminated. Black Lead Lead Green Lead (Ground) 220VAC XFMR Input 50/60 Hz. - 6 - HubSat4WPiV...
- Page 7 Typical Application Drawing HubSat4WPiV Passive UTP Transceiver Hub with Integral Isolated Camera Power: Fig. 6 Head End Equipment (DVR) Monitor RS485 Data Video Data Power Data CAT-5 Video HubWayAv Power CAT-5 Video Balun Combiner 24VAC PTZ HubWayDv/Dvi Camera Video Balun...
-
Page 8: Wall Mount Installation
Refer servicing to qualified service personnel. Wall Mount Installation 1. Place unit at the desired location and secure with mounting screws (not included) (Fig. 8 and Fig. 8a, pg. 8). Fig. 8 Fig. 8a - 8 - HubSat4WPiV... - Page 9 This installation should be made by qualified service personnel. This product contains no serviceable parts. PMK1 is in- tended for use with Altronix outdoor rated power supplies or accessories housed in WP1, WP2, WP3 and WP4 enclosures. Brackets are designed for use with the Wormgear Quick Release Straps (two included).
- Page 10 Notes: - 10 - HubSat4WPiV...
- Page 11 Notes: HubSat4WPiV - 11 -...
-
Page 12: Enclosure Dimensions
CARBON STEEL SHEET 4.21” 107mm Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 website: www.altronix.com, e-mail: info@altronix.com. Lifetime Warranty, Made in U.S.A. MEMBER IIHubSat4WPiV D01P - 12 - HubSat4WPiV...
