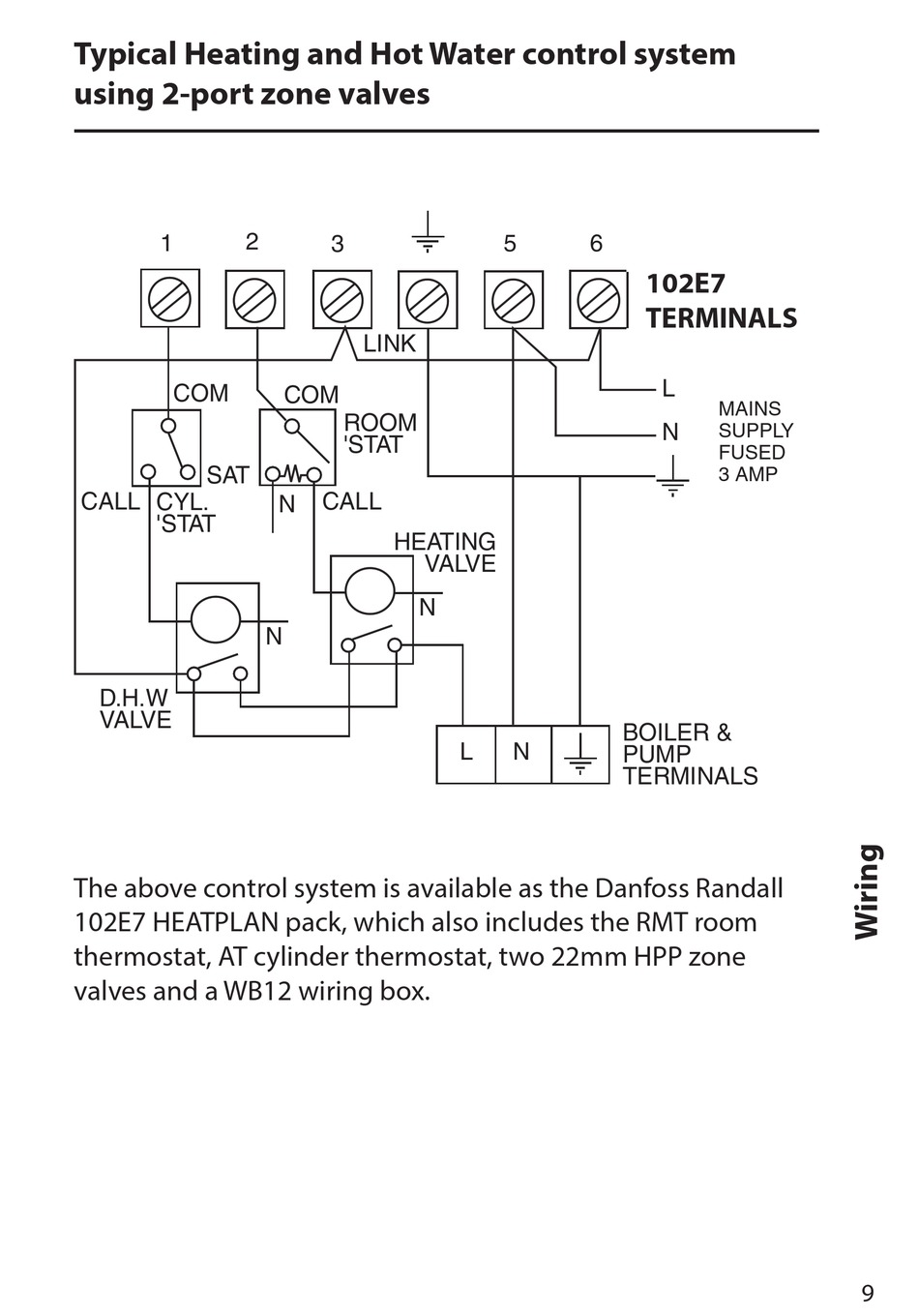

Typical Heating and Hot Water control system
using 2-port zone valves
2
1
COM
SAT
CALL
CYL.
'STAT
D.H.W
VALVE
The above control system is available as the Danfoss Randall
102E7 HEATPLAN pack, which also includes the RMT room
thermostat, AT cylinder thermostat, two 22mm HPP zone
valves and a WB12 wiring box.
3
LINK
COM
ROOM
'STAT
CALL
N
HEATING
VALVE
N
N
5
6
BOILER &
L
N
PUMP
TERMINALS
102E5
102E7
TERMINALS
TERMINALS
L
MAINS
N
SUPPLY
FUSED
3 AMP
9
