Danfoss 102E7 Installation And User Manual page 7

Typical Gravity DHW with Pumped Heating
2
1
COM
CALL
L N

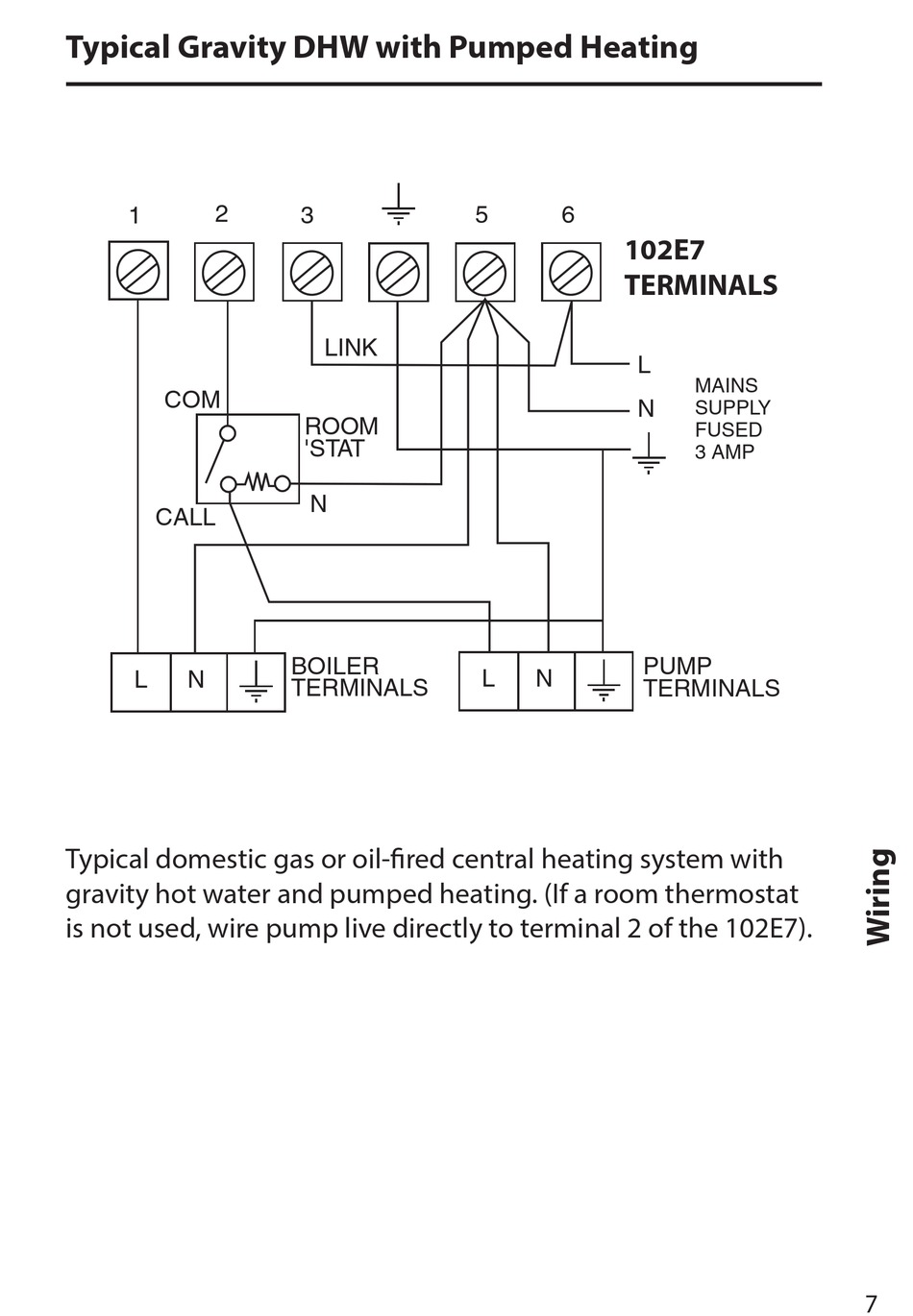

Typical domestic gas or oil-fi red central heating system with
gravity hot water and pumped heating. (If a room thermostat
is not used, wire pump live directly to terminal 2 of the 102E7).
3
LINK
ROOM
'STAT
N
BOILER
TERMINALS
5 6
102E7
102E5
TERMINALS
TERMINALS
L
N
PUMP
L N
TERMINALS
MAINS
SUPPLY
FUSED
3 AMP
7
