- Page 1 DM&P Group NCBox-189 User’s Manual...
- Page 2 OTICE TO SERS DMP Electronics Inc. provides no warranty with regard to this manual, the software, or other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to this manual, the software, or such other information.
- Page 3 AFETY NFORMATION WARNING Do not expose NCBOX-189 to rain or moisture, in order to prevent shock and fire hazard. Never install NCBox-189 in wet locations. Do not open the cabinet to avoid electrical shock. Refer to your nearest dealer for qualified personnel servicing.
- Page 4 RODUCT ESCRIPTION With this product, herewith also known as NCBox-189, which is a simplified & an economical design of an embedded NCBox-189 for CNC machine. The basic specification of this product comprises of the x86 technology design, and with VGA display, USB, PS/2 Keyboard, Mouse, LAN, and Audio Interfaces.
-
Page 5: Table Of Contents
P ......................1 ACKING C ....................1 HECK EFORE 1 – P ......................... 2 REFACE 2 – NCBox-189 O ................... 3 VERVIEW 3 –S ..................... 4 YSTEM PECIFICATION 4 – BIOS ........................5 R NCBox-189 ................5 ECONFIGURING 5 –... -
Page 6: Unpacking Your Ncb Ox

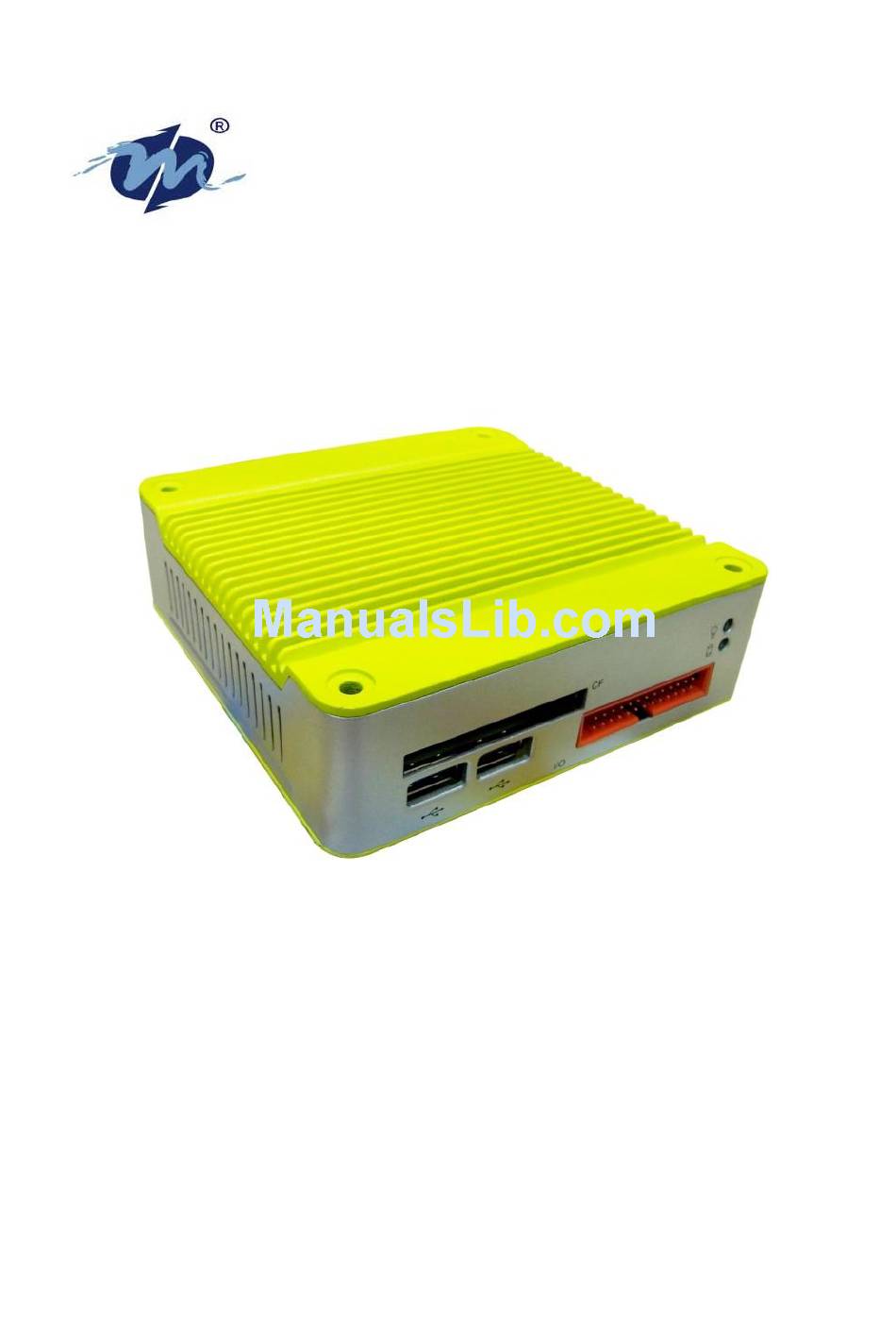

NPACKING Congratulation! You have just acquired NCBox-189, please check the following items: NCBox-189 ACKING IST FOR SERIES Q’ty Item Description NCBox-189 * Note: The accessories are subject to change without immediate notice. HECK EFORE NCBox-189 Figure 1 NCBox-189... -
Page 7: Preface

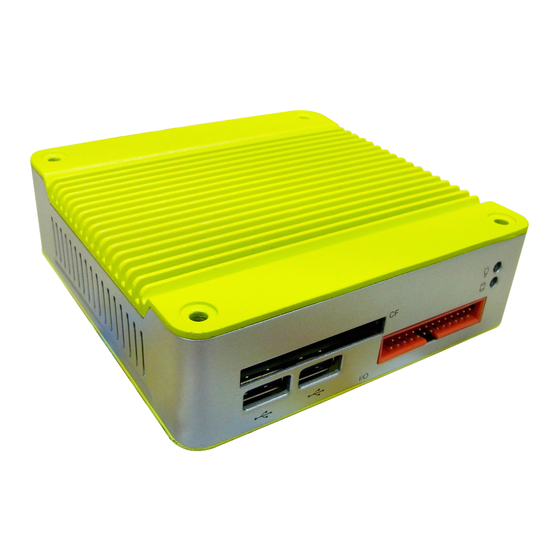

REFACE NCBox-189: The NCBox-189 is a complete computer, which is especially designed for CNC machine controller come with 2 parallel ports easy connect to your stepper driver, NCBox-189 support Microsoft Windows with the Mach3 CNC software and Linux with the LinuxCNC software, makes your CNC machine easiest install and control. -
Page 8: Ncbox-189 Overview
For connection to devices with USB interface (HDD, CD/DVD-ROM, Memory Stick, etc.) Back Panel Power switch DC Power In (8V-24V) PS/2 Keyboard or Mouse (6-pin) VGA 1 Parallel port (Port 278) LAN USB [ort NCBox-189... -
Page 9: System Specification
BIOS 4. RJ-45 LAN AMI BIOS Dimension & Weight 115 x 115 x 35 mm / 505g D-Sub 15Pin Integrated Graphics Chip Operating System Suitable for: Powere Input Windows XP DC 8V-24V Windows Embedded Standard Windows Embedded Compact Linux NCBox-189... -
Page 10: Bios
BIOS NCBox-189 ECONFIGURING Take note that AMI BIOS is used in the NCBox-189. To reconfigure the NCBox- 189, depress or hit the <Del> key to enter your BIOS setup main menu. Select from the menu, the desired setup for change. -
Page 11: Echnical Pecification
ECHNICAL PECIFICATION Model NCBox-189 Processor Vortex86MX+ Memory Onboard 1GB DDR2 Integrated Graphics Chip / D-Sub15-pin 10/100 Mbps LAN (RJ-45 connector) Ethernet Built-in PXE diskless boot function CF Slot 3 ports (2 in the front) PS/2 1 port (for KB/Mice) Parallel... -
Page 12: Taking Care Your Ncb Ox
NCBox-189 is brought directly from a cold location to a warm one, moisture may condense inside NCBox-189. Turn off NCBox-189, and contact your nearest dealer. Do not drop the NCBox-189 from the working table nor place heavy objects on top of the NCBox-189. NCBox-189... -
Page 13: Using Cables For Connection
Do not use cut or damaged cables for connection. LEANING Clean the NCBox-189 with a soft, dry cloth or a soft cloth lightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent such as alcohol or benzene, as these may damage the finish of NCBox-189. -
Page 14: Troubleshooting
ROUBLESHOOTING A. NCBox does not start Make sure the NCBox-189 is properly secured and plugged into a power source before it is turned on. Make sure the power indicator shows the power is on. See section 2 for more information about “NCBox-189 Overview”. -
Page 15: Bios Error Message
Go to “Exit” menu using the Direction keys <↑↓> and choose the option “Load Optimal Defaults”, then press <Enter>. A message dialog appears as seen below, hit “Y” key and press <Enter> to save and recover to the factory setting. “Load Optimal Defaults (Y/N)? Y” (BIOS Setup menu “Exit”) NCBox-189... -
Page 16: Operating System Not Found
ERMS AND ONDITIONS 1. Warranty The warranty terms for NCBox-189 are twelve (12) months from the beginning on the date of invoice. During the warranty period, DMP Electronics Will repair replace the product covered under this limited warranty. 2. Service and Support DMP Electronics Inc. -
Page 17: Return Merchandise Authorization (Rma) Policy
The Purchaser must pre-pay shipping for any defective system or parts returned under the warranty. DMP Electronics Inc. shall not be liable for risk of loss or damage during shipment of your returned system or parts if you fail to insure the shipment. - Page 18 NCBox-189...
