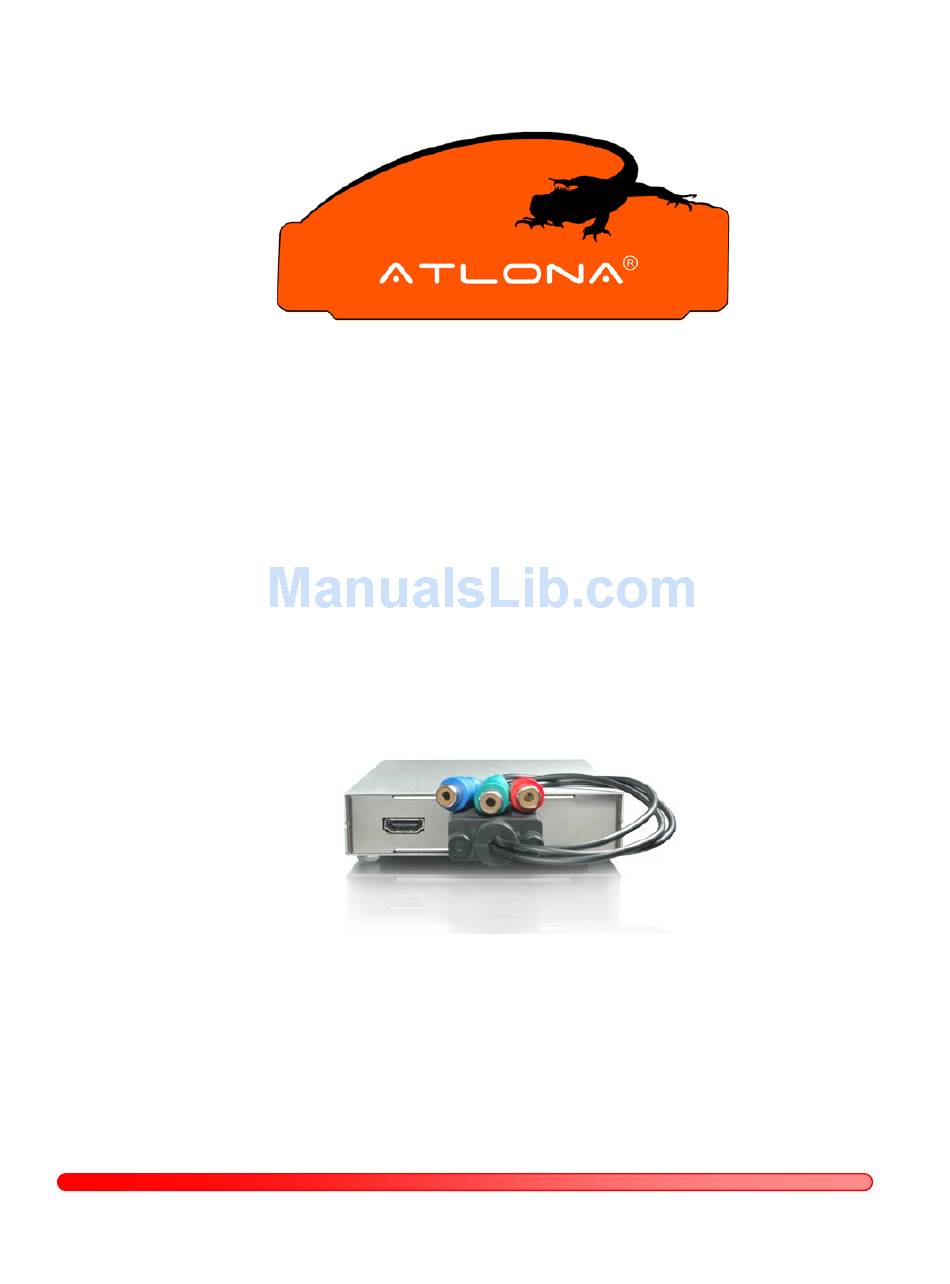

Atlona HD/SD-SDI to HDMI-DVI-YPbPr-RGBHV Converter
AT-HDSDI-AV

User Manual

http://www.atlona.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-HDSDI-AV and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlona AT-HDSDI-AV

  • Page 1: User Manual

    Atlona HD/SD-SDI to HDMI-DVI-YPbPr-RGBHV Converter AT-HDSDI-AV User Manual http://www.atlona.com...
  • Page 2: Safety And Notice

    However, like all electronic equipments, AT-HDSDI-AV should be used with care. Please read and follow the safety instructions to protect yourself form possible injury and to minimize the risk of damage to the unit.
  • Page 3 Introduction Atlona AT-HDSDI-AV provides high quality 12 bit conversion between SDI digital video input and HDMI / DVI digital video output or YPbPr / Composite (CVBS) / RGBHV analog video output. Plus, with an extra DVI output through HDMI type A connector, users can have pure digital video transmission path without analog conversion distortion.
  • Page 4: Package Contents

    Package Contents  1x AT-HDSDI-AV  1x 5V 4A power adapter  1x User Manual  1x VGA to YPbPr adapter  1x HDMI to DVI adapter Technical Specifications  Video Bandwidth: 270 Mbps 1.485 Gbps, 1.485/1.001Gbps  Input signal: HD/SD-SDI (SMPTE 259M / SMPTE 292M / SMPTE 296M) ...
  • Page 5 HD INPUT YPbPr OUT 525p @ 59.94Hz SMPTE 293M, ITU-BT.1358 625p @ 50Hz ITU-BT.1358 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz SMPTE 296M -1, -2 1080i @ 25Hz SMPTE 274M -6 1080i @ 30 / 29.97Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11...
  • Page 6 HD INPUT VGA OUT 525p @ 59.94Hz SMPTE 293M, ITU-BT.1358 625p @ 50Hz ITU-BT.1358 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz SMPTE 296M -1, -2 1080i @ 25Hz SMPTE 274M -6 1080i @ 30 / 29.97Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11...
  • Page 7: Panel Descriptions

    Panel Descriptions Front Panel HD/SD-SDI Input 4. Power Indicator HD/SD Bi-Color LED 5. HD/SD-SDI Output 2 Green: HD 6. IR Receiver (reserved) Orange: SD 7. 5V Power HD/SD-SDI Output 1 Rear Panel 1. HDMI Output 2. YPbPr / RGB Output...
  • Page 8 Bottom An 8-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit. Output formats, video patterns, SD Pedestal, SD Wide, PAL mode, YPbPr / RGB, SD component or SD composite, YC on/off etc. YPbPr / RGB / Composite Pin Definition...
  • Page 9 Pin 1 Pr / Red Pin 9 +5 V Pin 2 Y / Green / Composite Pin 10 Ground Pin 3 Pb / Blue Pin 11 Ground Pin 4 Ground Pin 12 Reserved Pin 5 Ground Pin 13 Horizontal Sync Pin 6 Ground Pin 14...
  • Page 10: Limited Warranty

    Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from Atlona or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, Atlona, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
