Summary of Contents for Atlona AT-HDSDI-AV

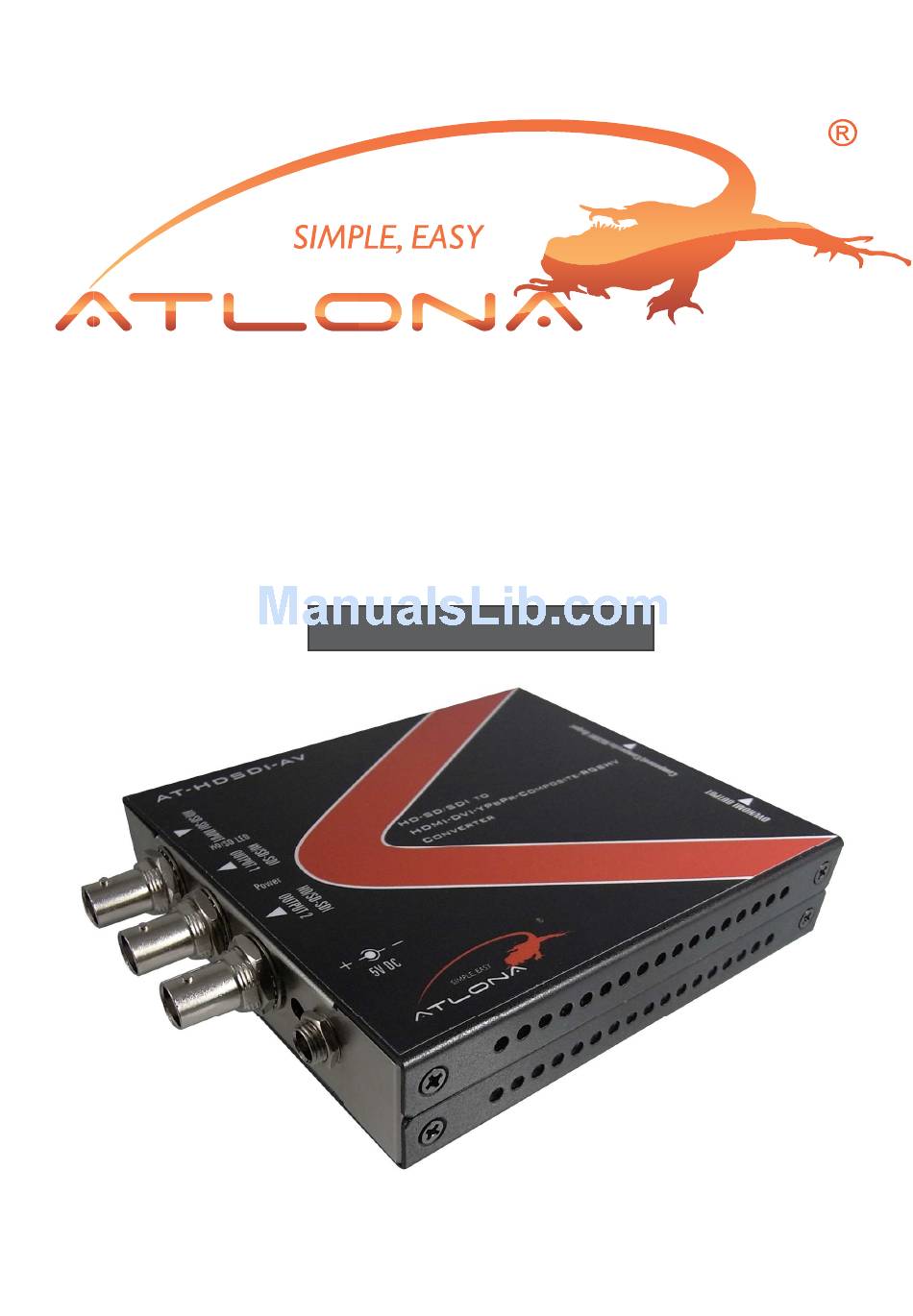

- Page 1 ™ HD/SD-SDI to HDMI /DVI/Component Converter AT-HDSDI-AV User’s Manual Rev.0911...
-
Page 2: Table Of Contents
................ 3. Package Contents ................. 4. Specifications ................ 5. Panel Description ................. 6. DIP Switch ................. 4 7. Supported Resolutions ................. 8. Pin Definitions ................6 9. Safety Information ................. 10. Warranty ................. 8 11. Atlona Product Registration ..............9... -
Page 3: Introduction
HD-SDI formats (SMPTE 259M, SMPTE 292M, and SMPTE 296M), and also features 2 equalized SDI loop outs. Note In some occasions the AT-HDSDI-AV can convert SDI signals to composite or RGBHV output, but not always. FEATURES Excellent quality 12-bit D/A conversion Supported high-definition (HD) formats: 1080i @50/59.94/60Hz, 1035i @50/59.94/60Hz, 720p @50/59.94/60Hz... -
Page 4: Specifications
SPECIFICATIONS Model Name AT-HDSDI-AV Technical SDI standards SD-SDI & HD-SDI Auto HD/SD-SDI detection Video bandwidth 1.485Gbps & 1.485/1.001Gbps [HD] 720p50/59.94/60 1035i50/59.94/60 Video support 1080i50/59.94/60 1080p24/30 [SD] NTSC@59.94Hz, PAL@50Hz [SD-SDI] SMPTE 259M Input signal [HD-SDI] SMPTE 292M, 296M Output signal HDMI (video only) / DVI / component video Output impedance 75Ω... -
Page 5: Panel Description
PANEL DESCRIPTION 1. Front Panel 1. HD/SD-SDI INPUT: connect to your SDI source device 2. HD/SD LED: green light for HD-SDI signal; orange light for SD-SDI signal, no light for no signal 3. HD/SD OUTPUT 1: first equalized HD/SD-SDI signal loop out 4. -
Page 6: Dip Switch
The factory default value from pin-1 to pin-8 is on-on-on-on-on-on-on-on [ - - - - - - - The default value for gain control is Gain +2.2% and the AT-HDSDI-AV will reset the gain control to default value whenever the unit is rebooted. So users may have to reconfigure the desired gain control value after each reboot. -
Page 7: Supported Resolutions
1080p @ 30 / 29.97Hz SMPTE 274M -7, -8 Component Out Composite Out* * * * SD INPUT NTSC PAL B,D,G,H,I Note * * * * It's highly not recommended to use AT-HDSDI-AV for VGA (RGBHV) and composite output. This is for reference only. -
Page 8: Pin Definitions
PIN DEFINITIONS ™ HDMI Pin 1 TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 2 TMDS Data2 Shield Pin 9 TMDS Data0– Pin 16 Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11 TMDS Clock Shield... -
Page 9: Safety Information
Attempting to do so could expose you to Precautions dangerous electrical shock or other hazards. It may also cause damage to your AT-HDSDI-AV. FCC Regulations state that any unauthorized Opening the product will void the warranty. changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this... -
Page 10: Warranty
Atlona Technologies and its suppliers’ entire liability and Customer’s exclusive remedy shall be, at Atlona Technologies’ option, either return of the price paid for the Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. -
Page 11: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights.
