- Page 1 AtlonA HDMI/DVI to Composite and S-Video Down-Converter AT-HD530 User Manual...
-
Page 2: Table Of Contents
..........2. Features ..........3. Package Contents ..........4. Panel Descriptions ..........4.1 Front Panel ..........4.2 Rear Panel ..........5. Connection and Installation ..........6. Specifications ..........7. Safety Information ..........8. Warranty ..........9. Atlona Product Registration .......... -
Page 3: Introduction
Audio. Along with a featured HDMI/DVI loop-out, this converter has the ability to support resolutions up to 1080p. In addition, this unit is able to detect and down convert those resolu- tions of to PAL or NTSC formats. Atlona’s AT-HD530 is perfect for users using CRT or Standard definition displays and HD sources. -
Page 4: Panel Descriptions

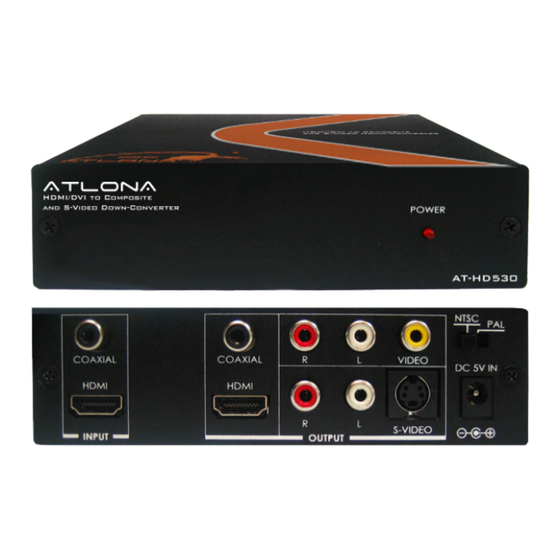

PANEL DESCRIPTIONS 1. Front Panel 1. Power LED: The LED indicator will light up when the unit is powered on. 2. Rear Panel 1. Coaxial Input: Connect the digital audio input to the Coaxial output of the source (ie. DVD player, BluRay, Set-Top-Box) 2. -
Page 5: Connection And Installation
CONNECTION and INSTALLATION AMPLIFIER AT-HD530 DVD recorder or Monitor HDMI TV SPECIFICATIONS Video Input ports HDMI Audio Input ports Digital Coaxial (designed for DVI with Audio Applications) Output ports 1 x Composite-Video with Audio, 1 x S-Video with Audio Power Supply 5V/2.6A (universal) -
Page 6: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 7: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication. -
Page 8: Atlona Product Registration
At Atlona, we respect and protect your privacy and assure you that your registration information is completely secure. Of course, Atlona product registration is totally voluntary and failure to register will not diminish your limited warranty rights. To register go to www.atlona.com/registration...
