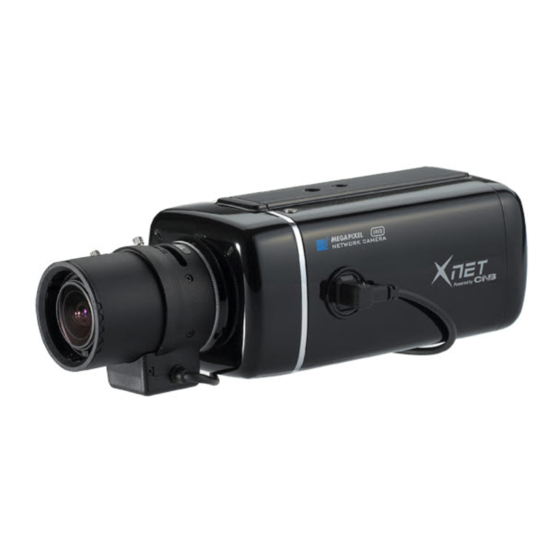

CNB XNET IGP2035F User Manual

Hide thumbs Also See for XNET IGP2035F:
Table of Contents

Advertisement

Quick Links

Download this manual
Ver. 1.0
XNET
(IGP2035F)
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XNET IGP2035F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CNB XNET IGP2035F

Summary of Contents for CNB XNET IGP2035F

  • Page 1 Ver. 1.0 XNET (IGP2035F) User Manual...
  • Page 2 Important Notices The copyright of this manual is owned by CNB Technology Inc. It is illegal to copy and distribute this manual without permission. Damages caused by misuse and by use of parts not recommended will not be applicable for support.
  • Page 3 XNET User Manual Appendix [Warning] This symbol provides a caution for handling XNET network cameras. [Note] This symbol provides a useful tip for handling XNET network cameras. 3 / 50...

  • Page 4: Table Of Contents

    XNET User Manual Index 1. System Administration ....................5 1.1. Logging On ..........................5 1.1.1. Using Internet Explorer ....................... 5 1.1.2. ID and Password ......................... 5 1.2. Configuring Camera ....................... 7 1.3. Web Viewer (Index.html) ......................9 1.4. Status Window ........................11 1.5.

  • Page 5: System Administration

    XNET User Manual 1. System Administration You can log on as an administrator using either Internet browser or ‘CMS’ software. (This manual will describe about using Internet browser only.) Type the IP Address of the XNET product in the address bar and press enter. e.g.) http://192.168.123.100 If the HTTP port has been changed from the default value, enter the new port as shown below:...
  • Page 6 XNET User Manual Figure 1-1 Log-in window The default user name and password is “root” and “admin” respectively. For security purpose, it is recommended to change the administrator’s id and password from their default values. Please be careful not to forget them or expose them to others.

  • Page 7: Configuring Camera

    XNET User Manual When you log in as an administrator, XNET’s Basic Setup page will appear as shown in Figure 1-2. Setup pages for different features can be accessed from this page. Access to each feature is controlled by different user groups (Administrator, Operator, and Viewer.) Main Menu Sub Menu...
  • Page 8 XNET User Manual ● Accessible ▬ Not Accessible Access Function Administrator Operator Viewer Index Page ● ● ● Users ● ▬ ▬ Setup Page Date&Time ● ● ▬ Setup Page ● ▬ ▬ Configuration Maintain Server ● ▬ ▬ Setup Page System / Log ●...

  • Page 9: Web Viewer (Index.html)

    XNET User Manual When you access an XNET product, Web Viewer page will appear automatically. Viewer area displays the video output from the camera, and menu bar contains taps that lead to each feature setting page. Figure 1-3 Web Viewer Page 9 / 50...
  • Page 10 XNET User Manual ITEM DESCRIPTION Captures the still image and displays on a pop-up window. Capture [Save to] c:₩xNetCapture Opens up Basic Setup Page. Setup page for each XNET feature can be opened from this Menu Setting screen. (Please refer to 1.4 for detail) Opens up PTZ page.

  • Page 11: Status Window

    XNET User Manual Status page displays XNET System’s Version and its Ethernet address. Click [ ▷ Status] button to open the page shown in Figure 1-4. Figure 1-4 Status Page (Internet Explorer 6.0) 11 / 50...

  • Page 12: Configuring Users

    XNET User Manual This can give or limit authority to users for controlling Video and other features of XNET system. Click [ ▷ Users] button to open the page shown in Figure 1-5. Figure 1-5 Users Configuration Page 12 / 50...
  • Page 13 XNET User Manual ITEM DESCRIPTION Displays list of registered users. User List "root" is the system’s administrator. "root" cannot be added or deleted. Only the password for “root” can be changed. This adds a new user. Select “[Add_User]” tap in User List Box. To add a new user, enter User name, Password, and User group then click Add button.

  • Page 14: Setting Date &Time

    XNET User Manual & & This page will change Date and Time of XNET system. Click [ ▷ Date & Time] to open the page shown in Figure 1-6. Figure 1-6 Date and Time Page 14 / 50...
  • Page 15 XNET User Manual ITEM DESCRIPTION Current Server Time Displays time of XNET system. Time Zone Selects Time Zone. <Default : GMT+09> Automatically Adjust for Daylight Saving Time Enables/ Disables Daylight Saving time. Changes Sets Date and Time of the Server. 『Synchronize with computer time』...

  • Page 16: Ptz Configuration

    XNET User Manual This page configures PTZ parameters such as protocol upload, select or delete protocol file, set PTZ device address, set uart baudrate, set PTZ pan or tilt speed. Click [▷ PTZ Configuration] to open the page shown in Figure 1-7. Figure 1-7 PTZ Configuration Page 16 / 50...
  • Page 17 XNET User Manual ITEM DESCRIPTION PTZ Protocol Upload Upload PTZ protocol file. Upload Select PTZ protocol file PTZ Protocol List Delete PTZ protocol file Camera ID Set PTZ device address Baudrate Set uart baudrate PTZ Setup Pan Speed Set PTZ pan speed Tilt Speed Set PTZ tilt speed 17 / 50...

  • Page 18: Maintaining Server Configurations

    XNET User Manual This page configures system parameters such as system restart, factory default settings, system upgrade, saving configurations, saving images, and other additional features. Click [ ▷ Maintain Server] to open the page shown in Figure 1-8. Figure 1-8 Server Maintenance Page 18 / 50...
  • Page 19 XNET User Manual ITEM DESCRIPTION Restart Restarts the system. It takes about 45 seconds. Maintain Resets all parameters except for TCP/IP settings. Light Default Server This restore will be followed by a 45 seconds system reset. Resets all parameters to Factory Default setting. Factory Default This will be followed by a 45 seconds system restart.

  • Page 20: System / Log

    XNET User Manual System / Log page provides network camera’s configuration, language, and error information to users. Click [ ▷ System / Log] button to open the page shown in Figure 1-9. Figure 1-9 System / Log Page 20 / 50...
  • Page 21 XNET User Manual ITEM DESCRIPTION System System Displays current configurations for XNet option pages. Settings Overview System LED Enable / Disable System LED. System LED Control Event LED Enable / Disable Event LED. Language File Upload language files. Upload Language File can be downloaded from http://www.cnbtec.com List Display the list of saved language files.

  • Page 22: Configuring Audio

    XNET User Manual Xnet’s Audio features can be configured in this page. Click [ ▷ Audio] button to open the page shown in Figure 1-10. Figure 1-10 Audio Configuration Page ITEM DESCRIPTION Enables or Disables Audio feature Audio Enable Enable audio <Default : Disable>...

  • Page 23: Configuring Video

    XNET User Manual XNET’s Video features can be configured in this page. Click [ ▷ Video] button to open the page shown in Figure 1-11. Figure 1-11 Video Configuration Page 23 / 50...
  • Page 24 XNET User Manual ITEM DESCRIPTION Select a resolution of the video image. Resolution CIF | VGA | D1 | 720p | SXGA Turns Sub Stream feature on or off. <Default : Disable> Sub Stream output is in H.264 & MJPEG Codec. Enable When configuring, select Main Stream or Sub-Stream in the Live View Dual-Codec...

  • Page 25: Configuring Rtp

    XNET User Manual RTP / RTSP protocol ports can be configured in this page. Click [ ▷ RTP] to open the page shown in Figure 1-12. Figure 1-12 RTP page 25 / 50...
  • Page 26 XNET User Manual ITEM DESCRIPTION RTSP Enter RTSP Port of the Main Stream between 1 and 65535. RTSP Port Configuration The default is 554. Enter RTP Start Port between 1024 and 65534. RTP Start The default is 2000. Port The minimum difference between RTP Start and End Port should be 100. Enter RTP End Port between 1124 and 65535.

  • Page 27: Camera Conditions

    XNET User Manual This is related to camera features of the XNET products. Click [ ▷ Camera Conditions button to open the page shown in Figure 1-13 Figure 1-13 Camera Conditions Page 27 / 50...
  • Page 28 XNET User Manual ITEM DESCRIPTION Turns the Video Out feature on or off. Enable Video <Note: Video Out is available if Main Stream’s resolution is set to 720p or less.> Video Out Selects Video format at Video Out terminal between Video Format NTSC and PAL.<Default : Enable>...
  • Page 29 XNET User Manual Select the Speed of Camera Shutter between 1/2 – 1/48000 only in Manual Shutter Speed Exposure mode. Slow Shutter Select the Min Speed of Camera Shutter between 1/2 – 1/30 only in Auto Limit Exposure mode. Select On or Off for reducing Camera’s flickering. Flickerless Depending on Video Out Format (NTSC/PAL), Shutter Min/Max Speed value will be modified.

  • Page 30: Configuring Tcp/Ip Parameters

    XNET User Manual This configures XNET’s network related parameters. Click [ ▷ TCP/IP] button to open the page shown in Figure 1-14. Figure 1-14 Network Setup Page 30 / 50...
  • Page 31 XNET User Manual ITEM DESCRIPTION Turns DHCP on or off. Check DHCP checkbox to get an IP address automatically from the network using DHCP protocol. Obtained IP address can be viewed by Obtain an IP Installer. IP Address If the network does not use DHCP server, the product automatically will wait for server’s response for two minutes and restart (DHCP)

  • Page 32: Configuring Ip Filtering

    XNET User Manual This configures IP Filters for XNET product. Click [ ▷ IP Filtering] button to open the page shown in Figure 1-15. Figure 1-15 IP Filtering Page 32 / 50...
  • Page 33 XNET User Manual ITEM DESCRIPTION IP Filter Displays list of currently established IP Filters. Address List Adds an IP address to filter out. Enter the IP Address to block and click add button to add it to IP Filtering listbox. The updated list can be viewed in IP Address Listbox.

  • Page 34: Configuring Http

    XNET User Manual This configures HTTP port to access XNET’s webpage. Click [ ▷ HTTP] button to open the page shown in Figure 1-16. Figure 1-16 HTTP Page 34 / 50...
  • Page 35 XNET User Manual ITEM DESCRIPTION Enter HTTP Port to access the webpage. HTTP Default port is 80, and any other port number has to be entered at the end HTTP port of the IP address when accessing. (e.g. When using HTTP Port 8080, enter http://192.168.123.100:8080) Enter HTTPS Port to access the webpage.

  • Page 36: Configuring Upnp/Dyndns/Bonjour

    XNET User Manual UPnP is a protocol for IP installer software. You can enable or disable this UPnP, and you can also use a Friendly Name. DynDNS configures XNET’s DDNS server information. Click [ ▷ UPnP/DynDNS] to open the page shown in Figure 1-17. Figure 1-17 UPnP / DynDNS / Bonjour Page 36 / 50...
  • Page 37 XNET User Manual ITEM DESCRIPTION Enables or disables UPnP. Enable UPnP UPnP When enabled, you can use IP Installer’s XNET Auto Search feature. Settings Friendly Name Enter UPnP’s Friendly Name. Enables or disables DynDNS. Enable DynDNS When enabled, you can automatically obtain a domain from DDNS server by simply registering the XNET product.

  • Page 38: Configuring Cms

    XNET User Manual This configures XNET’s CMS Server information. Click [ ▷ CMS] to open the page shown in Figure 1-18. Figure 1-18 CMS Page ITEM DESCRIPTION Enter CMS port number for communication with CMS between 1 and CMS Port 65535.

  • Page 39: Configuring Event Type

    XNET User Manual This is related to XNET’s DDNS Server information. Click [ ▷ Event Types] to view page shown in Figure 1-19. Figure 1-19 Event Types Page 39 / 50...
  • Page 40 XNET User Manual ITEM DESCRIPTION Event Enable Enable Event Enables or disables event processing. Sensor Enables or disables the Alarm sensor. Motion Enables or disables Motion Detection. Event Mode Detection Network Enables or disables Network Linkdown. Linkdown This displays the capture format of images or video for an event recording.

  • Page 41: Configuring Motion Detection Area

    XNET User Manual This defines areas that detect motion, and up to three different areas can be defined in each channel. Click Motion button in Operator mode to open the page shown in Figure 1-20. Figure 1-20 Motion Detection Page 41 / 50...
  • Page 42 XNET User Manual ITEM DESCRIPTION Displays currently defined Motion Detection area. When an area is selected from the list, its defined area gets displayed AREA and highlighted in viewer window. Up to 3 motion detection area can be defined. When this is checked, only the selected area gets displayed in viewer Show Selected Area window.

  • Page 43: Configuring Sensor/Alarm

    XNET User Manual This is related to XNET’s DDNS server information. Click [ ▷ Sensor / Alarm] to open the page shown in Figure 1-21. Figure 1-21 Sensor / Alarm Page 43 / 50...
  • Page 44 XNET User Manual ITEM DESCRIPTION Sensor Selects the signal type for Alarm Input Port between Normally Close Signal Type Setting and Normally Open. Alarm Configures interval between repeating Alarm Out signals between Out Interval Setting 1 and 120 seconds. Select the Alarm Control type either Auto or Manual. Auto : Rings the alarm automatically during the out interval depending Force Off Control...

  • Page 45: Smtp Setup

    XNET User Manual This configures mailing out method of Alarm Images once ‘event’ occurred in the XNET system. Click [ ▷ SMTP] button to open the page shown in Figure 1-22. Figure 1-22 SMTP Page 45 / 50...
  • Page 46 XNET User Manual ITEM DESCRIPTION Turns Internal SMTP Server on or off. When this box is checked, Alarm Image gets mailed out through an Enable internal mail server. Mail Authentication cannot be used in this mode. Internal SMTP When this box is unchecked, Alarm Image gets mailed out through an Server external mail server.

  • Page 47: Configuring Ftp

    XNET User Manual This configures how the Alarm Images get sent out using FTP once ‘event’ occurred in the XNET system. Click [ ▷ FTP] button to open the page shown in Figure 1-23. Figure 1-23 FTP Page 47 / 50...
  • Page 48 XNET User Manual ITEM DESCRIPTION Enter the address of the FTP server to send Alarm Images to in the event processing. FTP Name The client PC at that IP address has to run the FTP server in order to receive the Alarm Images. Server Enter the port number for the FTP server to send Alarm Images to in FTP Port...

  • Page 49: Configuring And Operating Ptz

    XNET User Manual This controls XNET’s PTZ movement. Click PTZ button in Operator mode to open the page shown in Figure 1-24. Figure 1-24 PTZ Page 49 / 50...
  • Page 50 XNET User Manual ITEM DESCRIPTION Direction Key Moves the view in the x and y direction. Wide Zooms Out Tele Zooms In Focuses Out Action Near Focuses in Push AF Automatically adjust the focus. Set Preset Saves the current position to the values in the Preset Edit box. Move Preset Moves the PTZ to the defined Preset position.
