MPP Solar PIP 1624 User Manual page 9

Warning:
Fault:
Output Information
Indicate output voltage, output frequency, load percent, load in VA and load in
Watt.
Battery Information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100%.
Battery capacity be presented as below.
Load Percentage
Load >50%
50%> Load > 20%
Load < 20%
Load Information
Indicates overload.
Indicates the load level by 0-24%, 25-50%, 50-74% and 75-100%.
Mode Operation Information
flashing with warning code.
lighting with fault code
Battery Voltage
< 1.717V/cell
1.717V/cell ~ 1.8V/cell
1.8 ~ 1.883V/cell
> 1.883 V/cell
< 1.817V/cell
1.817V/cell ~ 1.9V/cell
1.9 ~ 1.983V/cell
> 1.983
< 1.867V/cell
1.867V/cell ~ 1.95V/cell
1.95 ~ 2.033V/cell
> 2.033
0%~25% 25%~50%

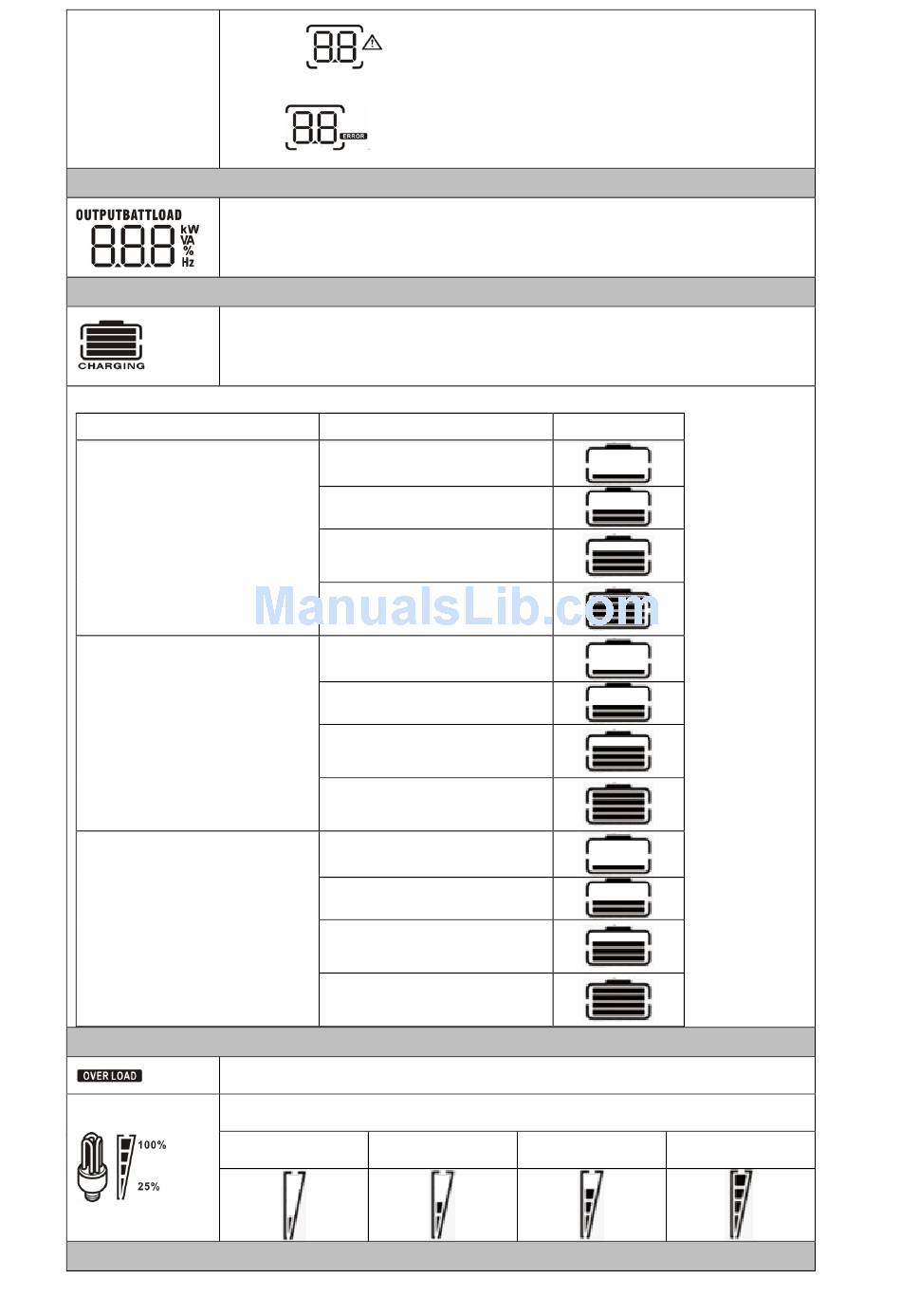

LCD Display
50%~75%
7
75%~100%
