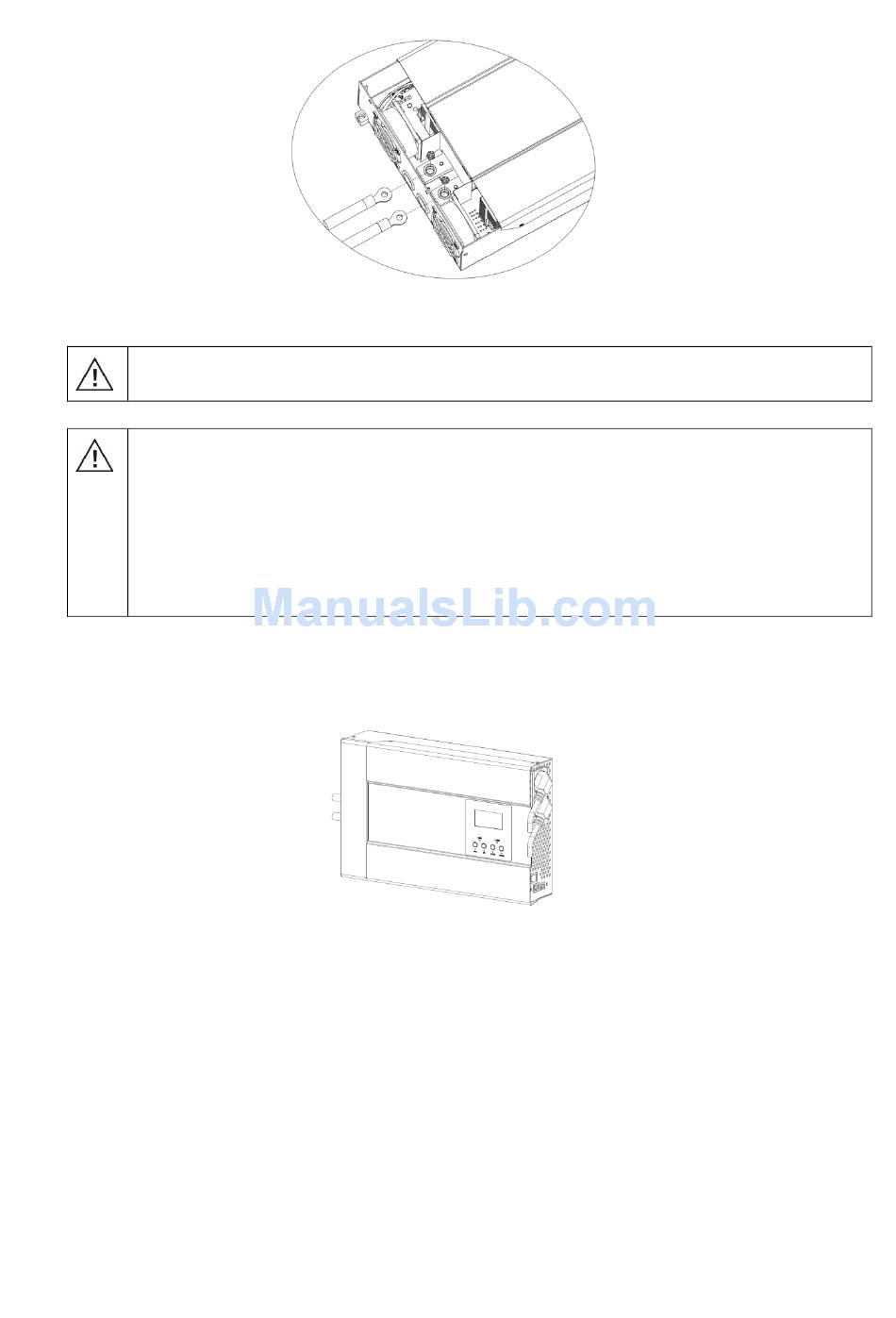

connected and ring terminals are tightly screwed to the battery terminals.
4. Fixing the bottom cover on the unit by two screws, refer to the picture in step 1.
WARNING: Shock Hazard
Installation must be performed with care due to high battery voltage in series.
CAUTION!!
terminal. Otherwise, overheating may occur.
CAUTION!!
connected tightly.
CAUTION!!
positive (+) must be connected to positive (+) and negative (-) must be connected to negative
(-).

AC Output Connection

Connect the load to the output sockets.

5. OPERATION

Power ON/OFF

Once the unit has been properly installed and the batteries are connected well, simply press On/Off switch
to turn on the unit. The unit will work automatically. When press the switch again, the unit will be turned
off.

Operation and Display Panel

The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes
three indicators, four function keys and a LCD display, indicating the operating status and input/output
Do not place anything between the flat part of the inverter terminal and the ring
Do not apply anti-oxidant substance on the terminals before terminals are
Before making the final DC connection or closing DC breaker/disconnector, be sure
5
