Display Setting - MPP Solar PIP 1624 User Manual

20 Backlight control
25 Record Fault code

Display Setting

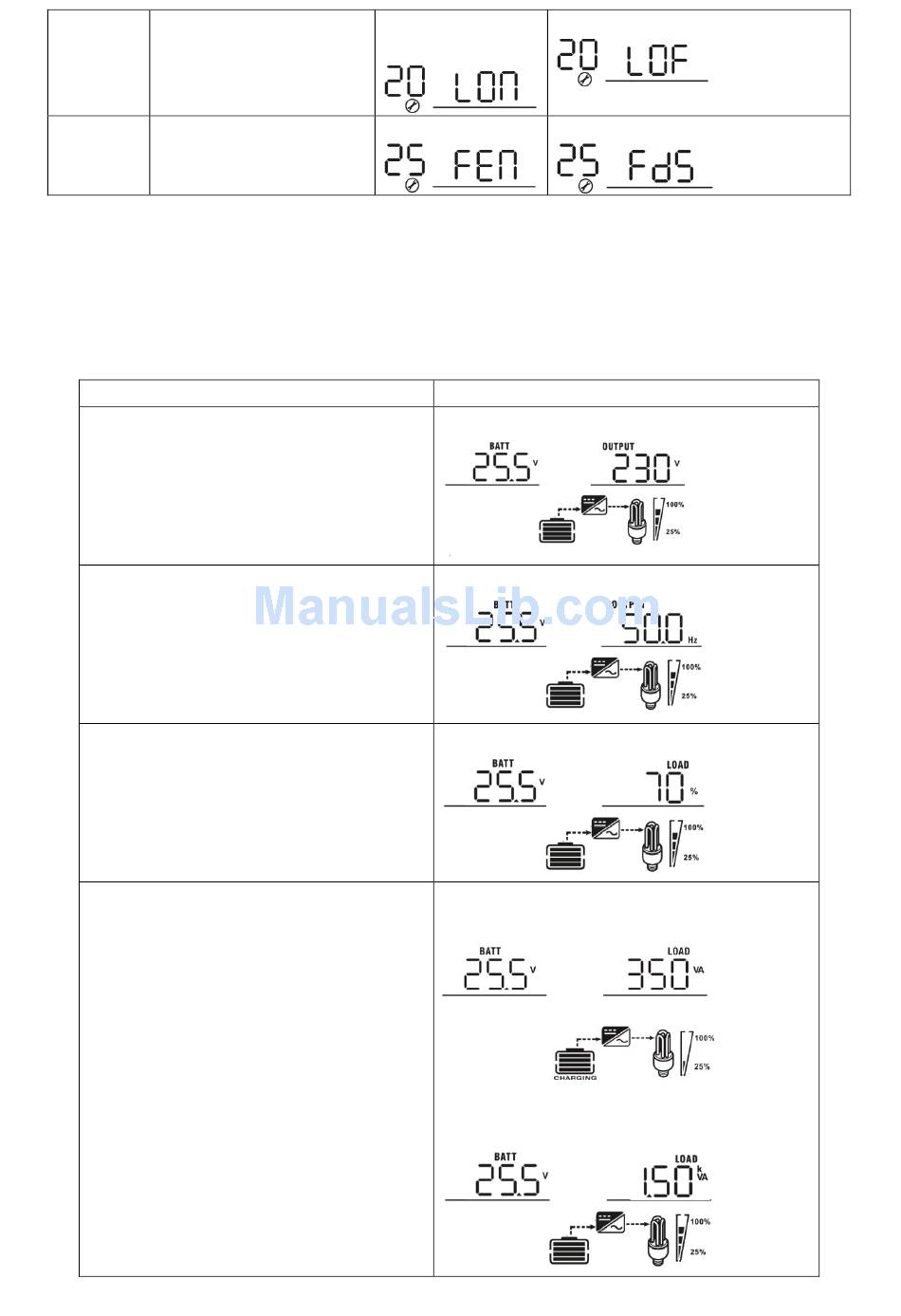

The LCD display information will be switched in turns by pressing "UP" or "DOWN" key. The selectable
information is switched as below order: battery voltage, output voltage, output frequency, load percentage,
load in Watt, load in VA.
Selectable information
Battery voltage/Output voltage
(Default Display Screen)
Output frequency
Load percentage
Load in VA
Backlight on
(default)
Record enable
LCD display
Battery voltage=25.5V, output voltage=230V
Battery voltage=25.5V, Output frequency=50Hz
Battery voltage=25.5V, Load percentage=70%
When connected load is lower than 1kVA, load in
VA will present xxxVA like below chart.
When load is larger than 1kVA (≧1KVA), load in
VA will present x.xkVA like below chart.
9
Backlight off
Record disable (default)
