3. Repeat step # 1 - # 2 to install the control horn
on the opposite aileron.
RIGHT

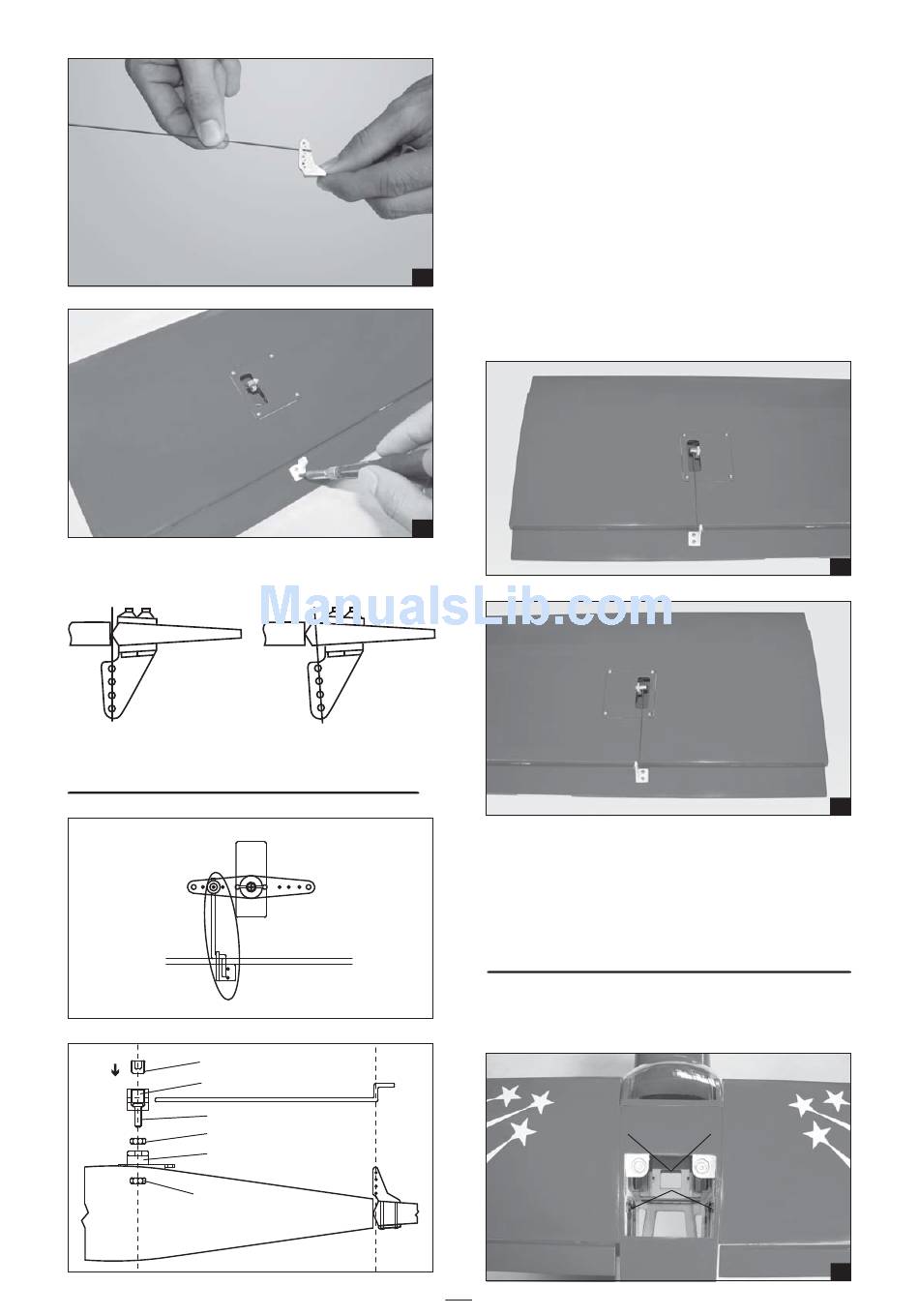

INSTALLING THE AILERON LINKAGES

Machine screw
Metal connector
Screw
M3 Nut
Servo arm
M3 Nut
9
10
WRONG
4
1. Attach the pushrod to the outer hole in the
control horn and slide it through the metal
connector.
2. Locate one nylon servo arm, and using wire
cutters, remove all but one of the arms. Using a
2mm drill bit, enlarge the third hole out from the
center of the arm to accommodate the aileron
pushrod wire.
3. Plug the aileron servo into the receiver and
center the servo. Install the servo arm onto the
servo. The servo arm should be perpendicular
to the servo and point toward the middle of the
wing.
4. Center the aileron and secure the metal connector.
5. Repeat step # 1 - # 4 to install the second
aileron linkage. After both linkages are
completed, connect both of the aileron servo
leads using a Y-harness you have purchased
separately.

INSTALLING THE WING TO THE FUSELAGE

Attach the wings to the joiner tube and using the
nylon thumbscrews to secure the wing panels
to the fuselage.
Screw
11
12
