Summary of Contents for Fanvil i66

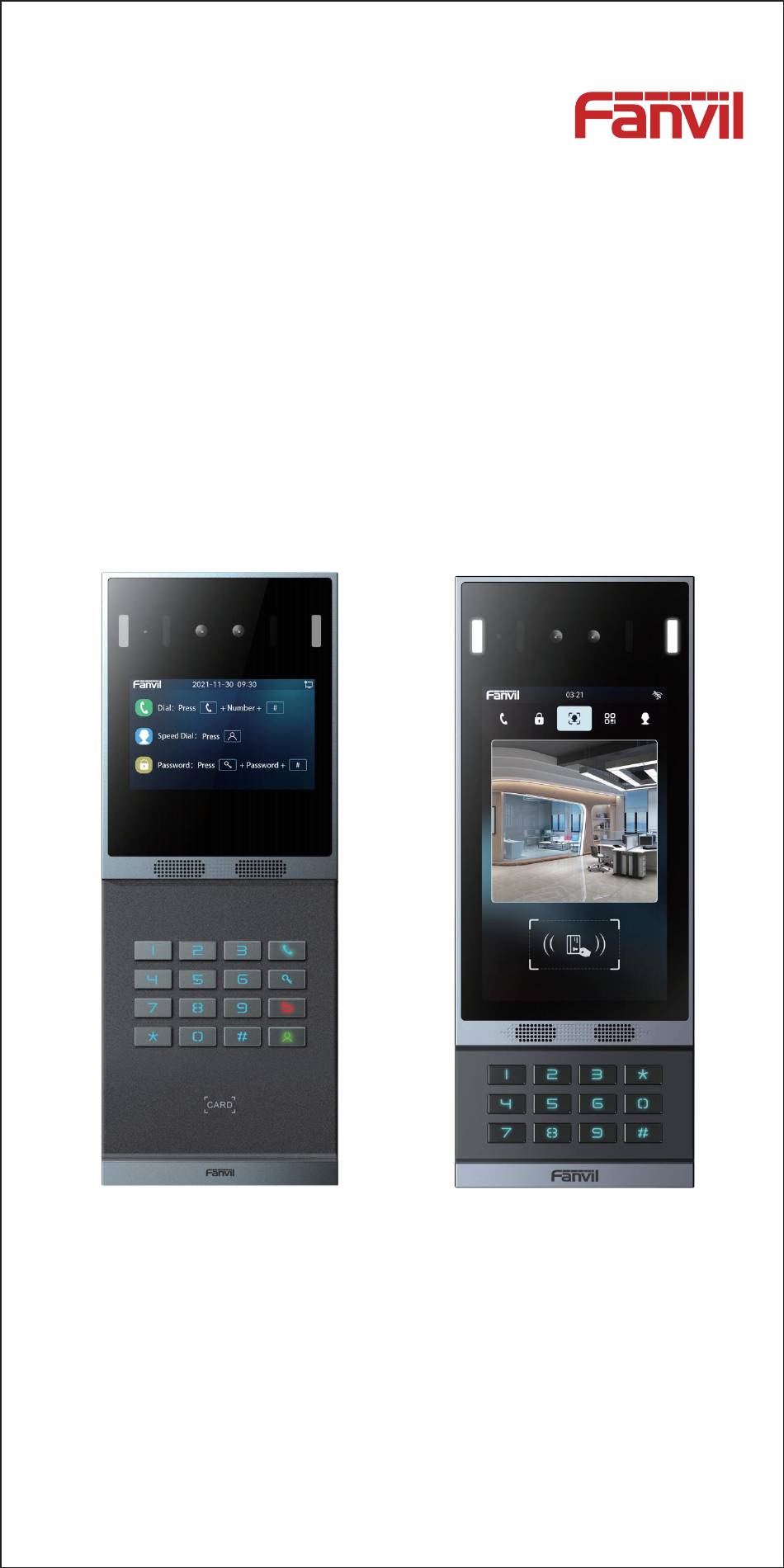

- Page 1 Quick Installation Guide www.fanvil.com...
-
Page 2: Package Contents
Package Contents Video Door Phone Wall Bracket 11CM i66&i67 Quick Installation Guide Quick Installation Guide Mounting Template 22CM www.fanvil.com 29CM Wall-mounting template Screws RFID Cards 2pcs connector and tool Physical specification Model Device size i66&i67 300 X 115.6 X 35 (mm) - Page 3 2) Interface description Open the back cover of the device, there is a row of wiring terminals for connecting the power supply, electric lock control, etc. The connections are as follows: ① ② ⑤ ③ ⑥ ④ ⑦ ⑧ ⑨ Description Number Ethernet interface: standard RJ45 interface, 10/100M self-adaptive, it is...
-
Page 4: Installation Instructions
√ Installation Instructions 3.1.1：Notice • Do not install the i66/i67 to places with condensation, high temperature, grease or dust, • Install the unit at a suitable visual height, with a recommended height of 120~140cm. If it is installed indoors, please maintain a distance of at least 2 meters from light sources and at least 3 meters from doors and windows to avoid direct sunlight. -
Page 5: Installation Diagram
• For scenarios with high security requirements, please configure access with combined authentication. Installation Diagram Figure 3-1 Figure 3-1 The three parts of the i66, Wall mounting: Step 1: Installation preparation A.Check the following contents: • KM3*30 screw x3 •... - Page 6 Step 3: Removing hanging bracket and back shell A. The wall bracket is separated from the device downwards, and use a screwdriver to loosen the 6 screws of the rear case, as shown in the figure 3-3, Figure 3-3-a Figure 3-3-b Step 4: Install the wall bracket, wiring and casing A.
- Page 7 There are two ways to query the IP of the device, as shown below: Method 1: Open the IP scan tool, click the refresh button, search and find the IP address of the device. (Download link: https://www.fanvil.com/) Method 2: Enter the dial interface, enter #*107, enter the password, enter the engineering mode, you can view the IP address of the device, and you can switch between static and dynamic IP modes.
- Page 8 Step 2: Set up a SIP account Through the assigned SIP account, configure the SIP server address, port, user name, password and number respectively. Then check [Enable] and click [Submit] to save this setting. Step 3: Set Speed Dial Keys Set the speed dial parameters of the speed dial key, as shown below, click [Submit]to save this setting.
- Page 9 Step 4: Access control parameter settings Open door settings Swipe to open the door • Web page access security settings→card management→add card→select card type (The standard card provides the door opening function, and the add card and delete card provide the add and delete card function. Default Standard Card） •...
- Page 10 Password to open the door • On the web page, go to Security Settings→Password Management→Add Password →Select Type as Local • Enter your name and password, click Add to add to the password list. • Owners and visitors can directly use the dial pad to enter "6789" (default password) or "Add password to open the door"。...
