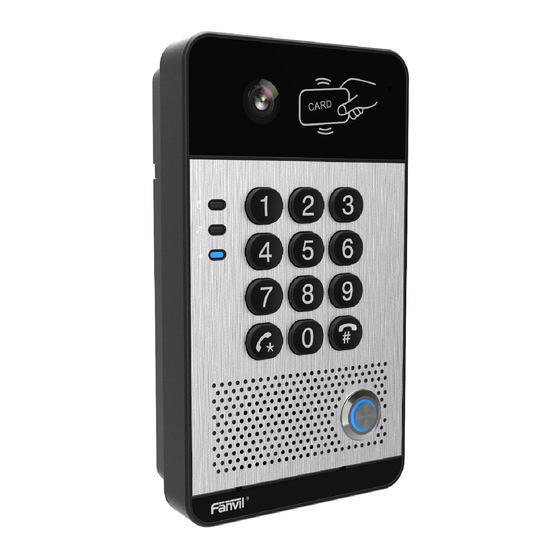

Fanvil I30 User Manual

Ip video door phone
Hide thumbs Also See for I30:
Table of Contents

Advertisement

Quick Links

Download this manual
[键入文字]

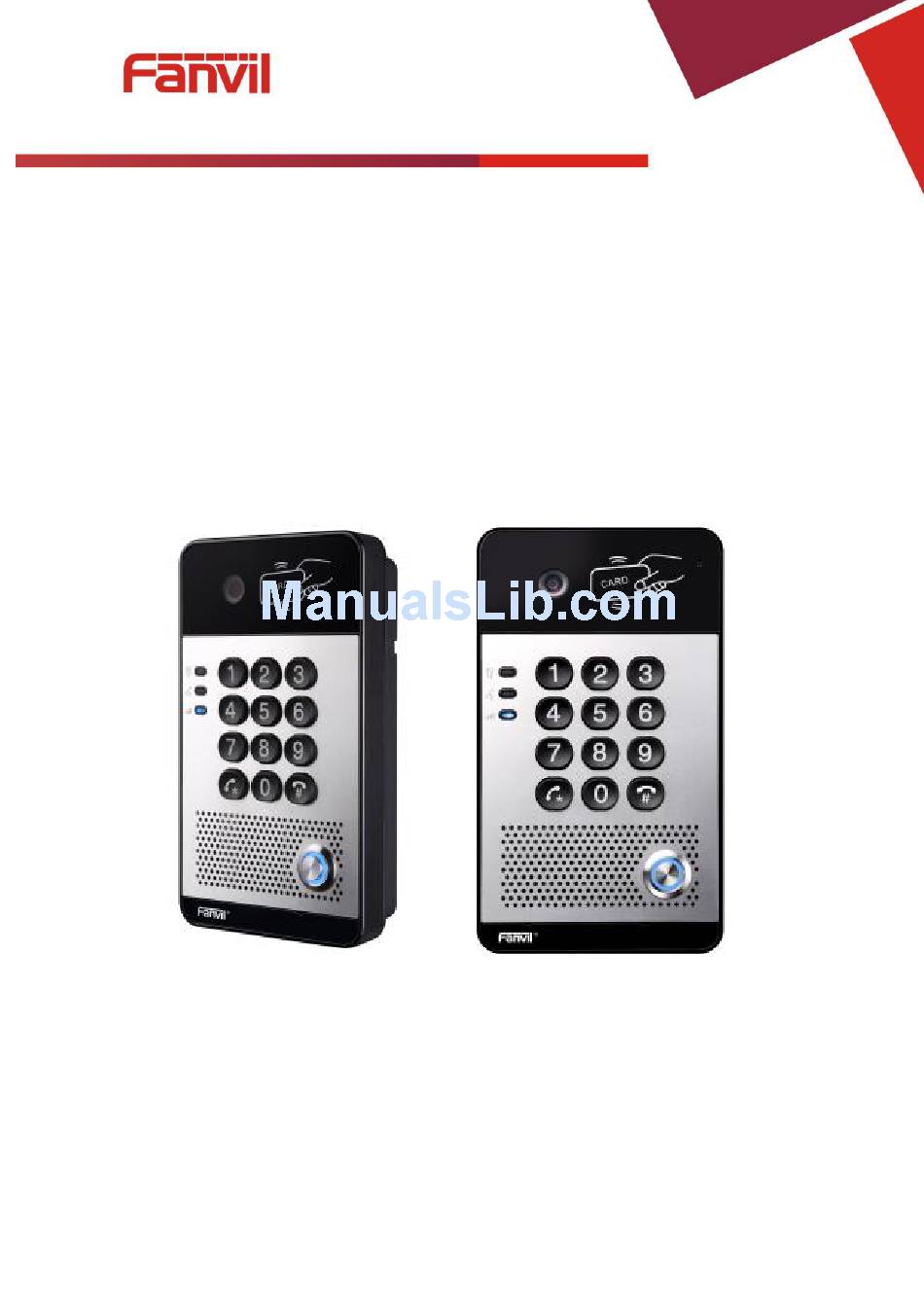

i30 IP Video Door Phone
User Manual V3.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil I30

Summary of Contents for Fanvil I30

  • Page 1 [键入文字] i30 IP Video Door Phone User Manual V3.0...
  • Page 2 [键入文字] Document VER Firmware VER Explanation Time V1.0 2.1.1.2545 Initial issue 20161117 Add FDMS, video linkage function. V2.0 2.1.1.2909 20170726 Changed default in passive mode to the electric-lock. Change company address and add IP scan tool download V3.0 2.1.1.2909 20171027 address in QIG...
  • Page 3 [键入文字] Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.

  • Page 4: Table Of Contents

    [键入文字] Directory I. Product introduction ..........................6 1. Appearance of the product ......................6 2. Description ............................7 II. Start Using ............................8 1. Confirm the connection ........................8 1) Power, Electric Lock, Indoor switch port ..................8 2) Driving mode of electric-lock(Default in passive mode) ..............8 3) Wiring instructions ........................
  • Page 5 [键入文字] (4) EGS Setting ..........................31 a) Features ..........................31 a) Audio ............................34 b) Video ............................35 c) MCAST ............................ 38 d) Action URL ..........................41 e) Time/Date ..........................41 (5) EGS Access ..........................43 (6) EGS Logs ........................... 45 (7) Function Key ..........................

  • Page 6: Product Introduction

    [键入文字] I. Product introduction i30 is a full digital network door phone. It uses mature VoIP solution (Broadcom chip), with stable and reliable performance; it supports hands-free with full-duplex, which voice is loud and clear; I30 have generous appearance, also solid durable, easy for installation, comfortable keypad and low power consumption.

  • Page 7: Description

    [键入文字] 2. Description Buttons and icons Description Function Numeric keyboard Input password to open the door or dial for call Programmable It can be set with a variety of functions in order keys to meet the needs of different occasions Induction zone RFID induction area Camera...

  • Page 8: Start Using

    [键入文字] II. Start Using Before you start to use the equipment, please make the following installation. 1. Confirm the connection  Confirm whether the equipment of the power cord, network cable, electric lock control line connection and the boot-up is normal. (Check the network state of light) 1) Power, Electric Lock, Indoor switch port Voice access the power supply ways: 12v/DC or POE.

  • Page 9: Wiring Instructions

    [键入文字] 3) Wiring instructions  NO: Normally Open Contact.  COM: Common Contact.  NC: Normally Close Contact. Driving Mode Electric lock Jumper port Connections No electricity When the Active Passive when open power to open √ √ √ √ √...

  • Page 10: Quick Setting

    (Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe  Note: when the I30 is powered on, 30s waiting is needed for device running.  Log on to the WEB device configuration.  In a line configuration page, service account, user name, server address and other parameters are required for server address registration.

  • Page 11: Basic Operation

    [键入文字] III. Basic operation 1. Answer a call When a call comes in, the device would answer automatically. If you cancel auto answer feature and set auto answer time, you would hear the ring at the set time and the device would auto answer after configured timer.

  • Page 12: Page Settings

    [键入文字] If access code has been input correctly, the device would play sirens sound to prompt I30 and the remote user, while input error by low-frequency short chirp. Password input successfully followed by high-frequency sirens sound, while input falsely, there would be high-frequency short chirp.

  • Page 13: Configuration Via Web

    [键入文字] 3. Configuration via WEB (1) System a) Information Information Field Name Explanation Display equipment model, hardware version, software version, uptime, last System Information uptime and meminfo. Shows the configuration information of WAN port, including connection mode Network of WAN port (Static, DHCP, PPPoE), MAC address, IP address of WAN port. SIP Accounts Shows the phone numbers and registration status of the 2 SIP LINES.

  • Page 14: B) Account

    [键入文字] b) Account Through this page, admininstrator can add or remove user accounts depend on their needs, or modify existed user accounts permission. Account Field Name Explanation Change Web Authentication Password You can modify the login password of the account Add New User You can add new user User Accounts...

  • Page 15: C) Configurations

    “Save Link As.” Import Configurations Find the config file, and press Update to load it to the equipment. I30 would restore to factory default configuration and remove all Reset to factory defaults configuration information. Upgrade...

  • Page 16: E) Auto Provision

    [键入文字] e) Auto Provision / 54...
  • Page 17 [键入文字] Auto Provision Field Name Explanation Common Settings Show the current config file’s version. If the config file to be downloaded is higher than current version, the configuration would Current Configuration Version be upgraded. If the endpoints confirm the configuration by the Digest method, the configuration would not be upgraded unless it differs from the current configuration Show the common config file’s version.

  • Page 18: F) Fdms

    [键入文字] Static Provisioning Server Set FTP/TFTP/HTTP server IP address for auto update. The address Server Address can be an IP address or domain name with subdirectory. Specify configuration file name. The equipment would use its MAC Configuration File Name ID as the config file name if this is blank. Protocol Type Specify the Protocol type FTP, TFTP or HTTP.

  • Page 19: G) Tools

    [键入文字] Building Number The name of the building where the equipment is installed Room Number The name of the room where the equipment is installed g) Tools Syslog is a protocol used to record log messages using a client/server mechanism. The Syslog server receives the messages from clients, and classifies them based on priority and type.

  • Page 20: Network

    [键入文字] APP Log Level Set the level of APP log. SIP Log Level Set the level of SIP log. Network Packets Capture Capture a packet stream from the equipment. This is normally used to troubleshoot problems. Reboot Phone Some configuration modifications require a reboot to become effective. Clicking the Reboot button would lead to reboot immediately.
  • Page 21 [键入文字] Network parameters must be entered manually and will not change. All Static parameters are provided by the ISP. DHCP Network parameters are provided automatically by a DHCP server. PPPoE Account and Password must be input manually. These are provided by your ISP. If Static IP is chosen, the screen below will appear.

  • Page 22: B) Vpn

    [键入文字] b) VPN The device supports remote connection via VPN. It supports both Layer 2 Tunneling Protocol (L2TP) and OpenVPN protocol. This allows users at remote locations on the public network to make secure connections to local networks. / 54...

  • Page 23: Line

    [键入文字] Field Name Explanation VPN IP Address Shows the current VPN IP address. VPN Mode Enable VPN Enable/Disable VPN. L2TP Select Layer 2 Tunneling Protocol Select OpenVPN Protocol. (Only one protocol may be activated. After the OpenVPN selection is made, the configuration should be saved and the phone be rebooted.) Layer 2 Tunneling Protocol (L2TP) L2TP Server Address...
  • Page 24 [键入文字] / 54...
  • Page 25 [键入文字] Field Name Explanation Basic Settings (Choose the SIP line to configured) Display the current line status at page loading. To get the up to Line Status date line status, user has to refresh the page manually. Username Enter the username of the service account. Display name Enter the display name to be sent in a call request.
  • Page 26 [键入文字] Enable call forward on busy, when the phone is busy, any Call Forward on Busy incoming call will be forwarded to the number specified in the next field Call Forward Number for Busy Set the number of call forward on busy Enable call forward on no answer, when an incoming call is not Call Forward on No Answer answered within the configured delay time, the call will be...
  • Page 27 [键入文字] Set the conference room number when conference type is set to Server Conference Number be Server Transfer Timeout Set the timeout of call transfer process Enable Long Contact Allow more parameters in contact field per RFC 3840 If enabled, the phone will save missed calls into the call history Enable Missed Call Log record.

  • Page 28: B) Basic Settings

    [键入文字] Session Timeout Set the session timer timeout period Enable Rport Set the line to add rport in SIP headers Enable PRACK Set the line to support PRACK SIP message Keep Authentication Keep the authentication parameters from previous authentication Using TCP protocol to guarantee usability of transport for SIP Auto TCP messages above 1500 bytes Enable Feature Sync...
  • Page 29 [键入文字] Basic Settings Field Name Explanation SIP Settings Local SIP Port Set the local SIP port used to send/receive SIP messages. Registration Failure Retry Set the retry interval of SIP REGISTRATION when registration failed. Interval Enable Strict UA Match Enable or disable Strict UA Match STUN Settings Server Address STUN Server IP address...

  • Page 30: C) Dial Peer

    [键入文字] c) Dial Peer Import Dial peer Table Field Name Explanation Select File Select an existing dialing rule file. The file type must be a .CSV Add Dial Peer In order to add an outgoing call number, the outgoing call number can be divided into two types: one is the exact match, and after the exact match, if the number is exactly the same as the user dialing the called number, the device will use the IP address of this number mapping or (This is the area code prefix function of the...

  • Page 31: Egs Setting

    [键入文字] configuring all: number to change the actual call out the number; 3) del, delete the number before the n bit, n by the replacement length set; 4) rep: xxx, the number n before the number is replaced by xxx, n is set by the replacement length. For example, if the user wants to dial the PSTN (010-62281493) through the floor service provided by the VoIP operator, and the actual call should be 010-62281493, then we can configure the called number 9T, then rep: 010, and then delete the length Set to 1.
  • Page 32 [键入文字] Features Field Name Explanation Common Settings Monostable: there is only one fixed action status for door unlocking. Bistable: there are two actions and statuses, door unlocking and door Switch Mode locking. Each action might be triggered and changed to the other status. After changed, the status would be kept.
  • Page 33 [键入文字] APP Door Open Enable or disable the APP Door Open APP door unlocking password. Initial Value is “*”. APP password Enable Indoor Open Enable or disable to use indoor switch to unlock the door. Enable Access Table: enter <Access Code> for opening door during calls. Disable Access Table: enter <Remote Password>...

  • Page 34: A) Audio

    [键入文字] Press "*" to Send Enable or disable the Press "*" to Send, Initial Value is enable Block Out Settings Add or delete blocked numbers – enter the prefix of numbers which should not be dialed by the phone. For example, if 001 is entered, the phone would not dial any number beginning with 001. X and x are wildcards which match single digit.

  • Page 35: B) Video

    [键入文字] Default Ring Type Ring sound – there are 9 standard types and 3 user types. G.729AB Payload Length G.729AB Payload length – adjust from 10 – 60 msec. Tone Standard Configure tone standard area. G.722 Timestamps Choices are 160/20ms or 320/20ms. G.723.1 Bit Rate Choices are 5.3kb/s or 6.3kb/s.
  • Page 36 [键入文字] Video Field Name Explanation Video Capture Brightness Adjust the video brightness level Adjust the video color purity, the higher the value is , the more vivid colors Saturation might be displayed Sharpness Adjust video clarity Contrast Adjust the video brightness ratio Backlight Control Video background brightness Video Format...
  • Page 37 [键入文字] You need to manually select the camera day / night mode, night mode is Manual Set black and white Keep Color Select whether or not the camera is remained as colorized IR-Cut Day and night mode, the camera switches to black and white start Start time of Night time IR-Cut day and night mode, the camera switches to black and white end...

  • Page 38: C) Mcast

    [键入文字] c) MCAST It is easy and convenient to use multicast function to send notice to each member of the multicast via setting the multicast key on the device and sending multicast RTP stream to pre-configured multicast address. By configuring monitoring multicast address on the device, the device monitors and plays the RTP stream which sent by the multicast address.
  • Page 39 [键入文字] Page priority determines the device how to deal with the new receiving multicast RTP streams when it is in multicast session currently. When Page priority switch is enabled, the device would automatically ignore the low priority multicast RTP streams but receive top-level priority multicast RTP streams, and keep the current multicast session in maintained statu;...
  • Page 40 [键入文字]  Pink part (index / priority) Multicast is a sign of listening, but also the monitoring multicast priority. The smaller number refers to higher priority.  Red part (priority) It is the general call, non-multicast call priority. The smaller number refers to higher priority. The followings would explain how to use this option: ...

  • Page 41: D) Action Url

    [键入文字] d) Action URL Action URL Event Settings URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml e) Time/Date / 54...
  • Page 42 [键入文字] Time/Date Field Name Explanation Network Time Server Settings Time Synchronized via SNTP Enable time-sync through SNTP protocol Time Synchronized via DHCP Enable time-sync through DHCP protocol Primary Time Server Set primary time server address Set secondary time server address, when primary server is not reachable, the Secondary Time Server device would try to connect to secondary time server to get time synchronization.

  • Page 43: Egs Access

    [键入文字] Week End The DST end week Weekday End The DST end weekday Hour End The DST end hour Manual Time Settings The ti me might be set manually, needed user to disable SNTP service first. EGS Access EGS Access Field Name Explanation Import Access Table...
  • Page 44 [键入文字] can batch import remote access rule. Access Table According to entrance guard access rules have been added, you can choose single or multiple rules on this list to delete operation. Add Access Rule Name(necessary) User name Virtual extension number, used to make position call instead of real number. Location It might be taken with unit number, or room number.

  • Page 45: Egs Logs

    [键入文字] When entrance guard is in normal state, swipe card (issuing card) would make entrance guard into the issuing state, and then you can swipe a new card, which the card would be added into the database; when you swipe the issuing card again after cards added done, entrance guard would return to normal state.

  • Page 46: Function Key

    [键入文字] 3. If the opening door way is local access, there is no display information. Open type: 1. Local, 2. Remote, 3. Brush card (Temporary Card, Valid Card and Illegal Card). Note: there are three kinds of brushing card feedback results. Type 1.
  • Page 47 [键入文字] Type Number Line Subtype Usage Using Speed Dial mode together with Fill the , can define The SIP Speed Dial whether this call is allowed to be hung up by called account Hot Key party’s SIP re-pressing the speed dial key. correspondi account or In Intercom mode, if the caller’s IP phone...
  • Page 48 [键入文字]  calling configuration If the device is in calls, or it is three-way conference, or initiated multicast communication, the device would not be able to launch a new multicast call. / 54...

  • Page 49: Appendix

    [键入文字] V. Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Broadcom DSS Key 1( stainless steel) Keys Numeric keyboard Support Audio Speaker 3W/4Ω Volume control Adjustable Full duplex speakerphone Support (AEC) Protocols Speech flow Decoding G.729、G.723、G.711、G.722、G.726 Active Switched Output 12V/650mA DC Ports 10/100BASE-TX s Auto-MDIX, RJ-45...

  • Page 50: Basic Functions

    [键入文字] 2. Basic functions  2 SIP lines  PoE Enabled  Full-duplex speakerphone (HF)  Numeric keypad (dialing pad or password input)  Intelligent DSS Keys (Speed Dial/Intercom etc)  Wall-mounting  Integrated RFID Card reader  1 indoor switch interface ...

  • Page 51: Other Instructions

    [键入文字] VI. Other instructions 1. Open door modes  Local control 1) Local Password  Set <Local Password> (the password is "6789" by default) via EGS Setting\Feature\Advanced Settings.  Input password via keypad and press the "#" key, then the door would be unlocked. 2) Private access code ...
  • Page 52 [键入文字]  Add Administrator cards Input a card’s ID, selected <Issuer> or <Revocation> in the types and then click <Add>; you would add administrator card.  Delete Administrator cards Select the admin card need to be deleted, click <Delete>. 2) Add user cards ...
  • Page 53 [键入文字]  Click <Apply>, Card Reader would back to the Normal status.  The issuing records can be found from the door card table list.  Methods 2: used to add cards for professionals  Use issuer admin card to touch card reader induction area, and it would enter issuing card status. ...
  • Page 54 [键入文字] 3) Delete user cards  Method 1: used to batch delete cards for starters.  In web page < EGS Setting →Features →Card Reader Working Mode > option, select <Card Revoking>.  Click <Apply>, card reader would enter the revoking status. ...
