i18

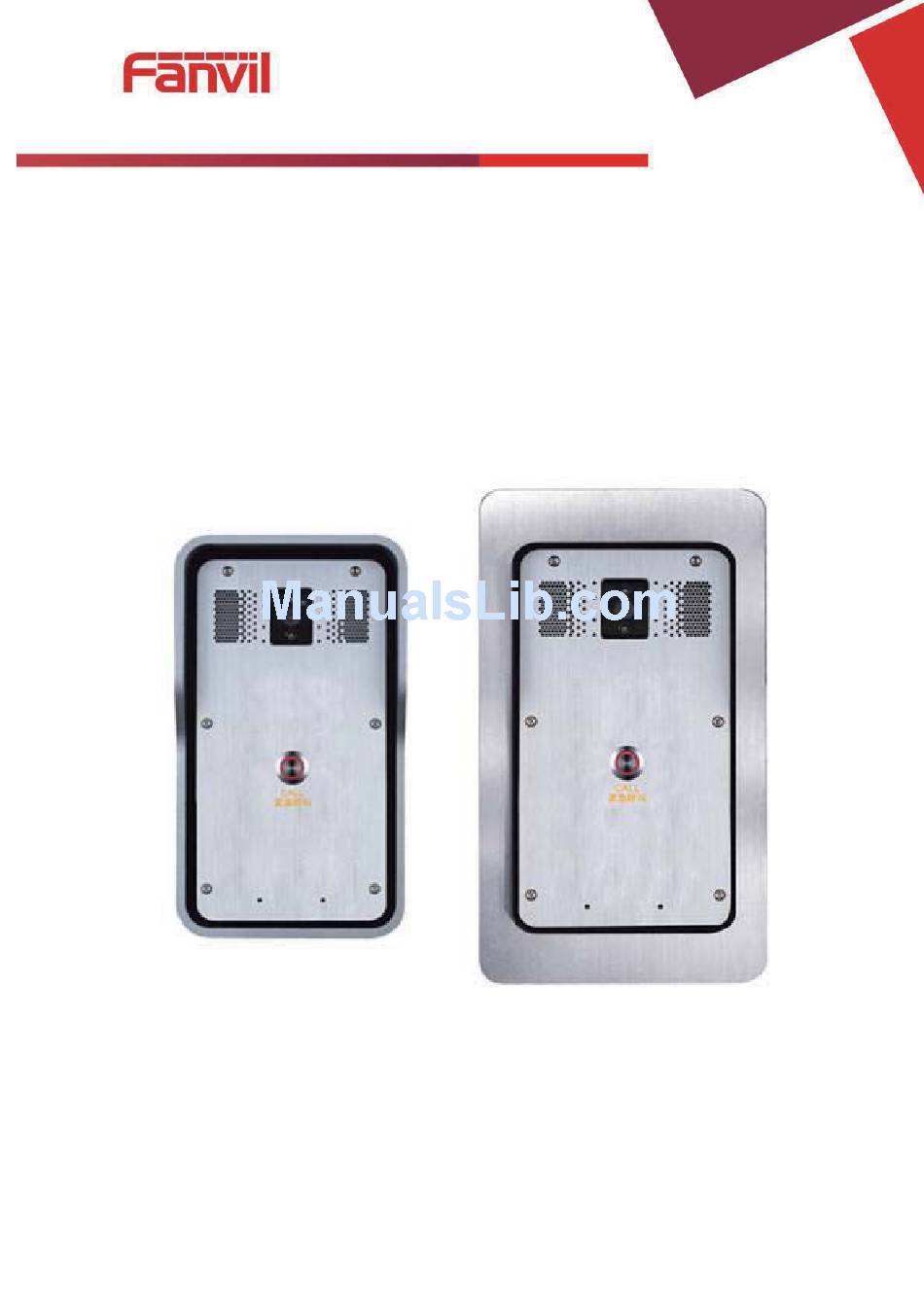

IP Video Intercom User Manual
Wall mounted
In-wall

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fanvil i18

Summary of Contents for Fanvil i18

  • Page 1 IP Video Intercom User Manual Wall mounted In-wall...
  • Page 2 Safety Notices 1. Please use the specified power adapter. If you need to use the power adapter provided by other manufacturers under special circumstances, please make sure that the voltage and current provided is in accordance with the requirements of this product, meanwhile, please use the safety certificated products, otherwise may cause fire or get an electric shock.

  • Page 3: Table Of Contents

    Directory PRODUCT INTRODUCTION ......................5 1. A ......................5 PPEARANCE OF THE PRODUCT 2. D ............................ 5 ESCRIPTION B. START USING ............................ 6 1. C ........................6 ONFIRM THE CONNECTION Power port ..........................6 Power port ..........................6 Security functions Input port ....................6 Security functions Output port ....................
  • Page 4 b) MEDIA ..........................24 c) DND ............................. 26 d) FEATURE ..........................27 e) MCAST ..........................28 Action URL ........................... 31 SAFEGUARDING ........................31 MAINTENANCE ........................34 a) AUTO PROVISION ......................... 34 b) SYSLOG ..........................36 c) CONFIG ..........................37 d) UPDATE ..........................38 e) ACCESS ..........................

  • Page 5: Product Introduction

    A. Product introduction i18 is a full digital natwork Video Intercom, with its core part adopts mature VoIP solution, stable and reliable performance, hands-free adopting digital full-duplex mode, voice loud, video clear, generous appearance, solid durable, easy for installation, comfortable keypad and low power consumption.

  • Page 6: Start Using

    B. Start Using Before you start to use the equipment, please make the following installation: Confirm the connection Confirm whether the equipment of the power cord, network cable connection and the boot-up is normal. (Check the state of indicator light) Power port Switch WAN port...

  • Page 7: Security Functions Output Port

    Security functions Output port CN11 Normally common Normally Normally common Normally close port open close port open Output port 2 Output port 1 Quick Setting The product provides a complete function and parameter setting. Users may need to have the network and SIP protocol knowledge to understand the meaning represented by all parameters.

  • Page 8: Basic Operation

    C. Basic operation 1. Answer a call When a call comes in, the device will answer automatically. If you cancel auto answer feature and set auto answer time, you will hear the bell ring at the set time and the device will auto answer after a timeout.

  • Page 9: Password Configuration

    2. Password Configuration There are two levels of access: root level and general level. A user with root level access can browse and set all configuration parameters, while a user with general level can set all configuration parameters except server parameters for SIP Default user with general level: Username: guest Password: guest...

  • Page 10: B) Wizard

    b) WIZARD Wizard Field Name Explanation Select the appropriate network mode. The equipment supports three network modes: Static IP mode The parameters of a Static IP connection must be provided by your ISP. In this mode, network parameter information will be obtained automatically from a DHCP mode DHCP server.

  • Page 11: D) Time&Date

    d) TIME&DATE Set the time zone and SNTP (Simple Network Time Protocol) server on this page. Daylight Saving Time configuration and Manual Time and Date entry can also be done in this page. Time&Date Field Name Explanation System Current Time Display the current time Simple Network Time Protocol (SNTP) Settings Enable SNTP...

  • Page 12: Network

    (2) NETWORK a) WAN Field Name Explanation WAN Status Active IP address The current IP address of the equipment Current subnet The current Subnet Mask mask Current IP The current Gateway IP address gateway MAC address The MAC address of the equipment...
  • Page 13 WAN Settings Enable Vendor Enable or disable Vendor Identifier Identifier Vendor Identifier Configure display Vendor Identifier Select the appropriate network mode. The equipment supports three network modes: Network parameters must be entered manually and will not change. All parameters Static are provided by the ISP.

  • Page 14: B) Qos&Vlan

    Field Name Explanation Web Server Type Specify Web Server Type – HTTP or HTTPS Port for web browser access. Default value is 80. To enhance security, change this from the default. Setting this port to 0 will disable HTTP access. HTTP Port Example: The IP address is 192.168.1.70 and the port value is 8090, the accessing address is http://192.168.1.70:8090.
  • Page 15 Chart 2 shows an example with two VLANs indicated by red and blue. In this example, frames broadcast from Port 1 will only go to Port 2 since Ports 3 and 4 are in a different VLAN. VLANs can be used to divide a network by restricting the transmission of broadcast frames.

  • Page 16: C) Web Filter

    Field Name Explanation Quality of Service (QoS) Settings Enable DSCP Enable or Disable Differentiated Services Code Point (DSCP) SIP DSCP Specify the value of the SIP DSCP in decimal Audio RTP DSCP Specify the value of the Audio DSCP in decimal Video RTP DSCP Specify the value of the Video DSCP in decimal WAN Port VLAN Settings...

  • Page 17: D) Security

    d) SECURITY Field Name Explanation Update Security File Select the security file to be updated. Click the Update button to update. Delete Security File Select the security file to be deleted. Click the Delete button to Delete. SIP TLS Files Show SIP TLS authentication certificate.
  • Page 18 Field Name Explanation Basic Settings (Choose the SIP line to configured) Shows registration status. If the registration is successful done, it will display “has Status been registered”, otherwise will display “not registered”. The wrong password will display “403 errors” and account number failure will display “timeout”. Server Address SIP server IP address or URI.
  • Page 19 Field Name Explanation Advanced SIP Settings Proxy Server SIP proxy server IP address or URI, (This is normally the same as the SIP Registrar Address Server) Proxy Server Port SIP Proxy server port. Normally 5060. Proxy User SIP Proxy server account. Proxy Password SIP Proxy server password.
  • Page 20 Field Name Explanation Transport Configuration using the transport protocol, TCP, TLS or UDP, the default is UDP. Protocol Enable Rport Enable/Disable support for NAT traversal via RFC3581 (Rport). Enable /disable registration with authentication. It will use the last authentication Keep field which passed authentication by server.

  • Page 21: B) Stun

    b) STUN STUN – Simple Traversal of UDP through NAT –A STUN server allows a phone in a private network to know its public IP and port as well as the type of NAT being used. The equipment can then use this information to register itself to a SIP server so that it can make and receive calls while in a private network.

  • Page 22: Intercom

    Field Name Explanation SIP Line Using STUN (SIP1 or SIP2) Use STUN Use STUN Note: the SIP STUN is used to achieve the SIP penetration of NAT, is the realization of a service, when the equipment configuration of the STUN server IP and port (usually the default is 3478), and select the Use Stun SIP server, the use of NAT equipment to achieve penetration.
  • Page 23 Hot key Settings Enter the phone number in the input box, when you press the shortcut key, equipment will dial set telephone number. This button can also be used to set the IP address, press the shortcut key IP direct dial call.

  • Page 24: B) Media

    operation mechanism Device through the DSS Key configuration of multicast address and port and started coding; set by WEB to monitor the multicast address and port; device sends a multicast, listens to the address of the device can receive the multicast content. calling configuration The call is already exists, and three party or initiated multicast communication, so it will not be able to launch a new multicast call.
  • Page 25 Field Name Explanation Fourth Codec The forth codec choice: G.711A/U, G.722, G.723.1, G.726-32, G.729AB, ILBC and AMR. DTMF Payload The RTP Payload type that indicates DTMF. Default is 101 Type AMR Payload Set the AMR Payload type, Numerical based on between 96-127. Type ILBC Payload Set the ILBC Payload type, Numerical based on between 96-127.

  • Page 26: C) Dnd

    Field Name Explanation RTP Control Protocol(RTCP) Settings CNAME user Set CNAME user CNAME host Set CNAME host Sound Update Choose the ring tone files and then click update to apply Sound Delete Delete the ring tone file Sound Settings Set the ring tong files, format is .mp3 and .wav c) DND Field Name Explanation...

  • Page 27: D) Feature

    d) FEATURE Feature Field Name Explanation Feature Settings Ban Outgoing If enabled, no outgoing calls can be made. Speed Dial Action Default is Speed Dial Hand-down function Enable Telnet Enable or disable Telnet Select Your Tone Standard configuration signal sound. Enable Intercom If enabled, mutes incoming calls during an intercom call.

  • Page 28: E) Mcast

    e) MCAST It is easy and convenient to use multicast function to send notice to each member of the multicast via setting the multicast key on the device and sending multicast RTP stream to pre-configured multicast address. By configuring monitoring multicast address on the device, monitor and play the RTP stream which sent by the multicast address.
  • Page 29 Page priority determines the device how to deal with the new receiving multicast RTP stream when it is in multicast session currently. When Page priority switch is enabled, the device will automatically ignore the low priority multicast RTP stream but receive top-level priority multicast RTP stream, and keep the current multicast session in state;...
  • Page 30 Red part (priority) It is the general call, non multicast call priority. The smaller number refers to high priority. The followings will explain how to use this option: The purpose of setting monitoring multicast "Group 1" or "Group 2" or "Group 3" launched a multicast call.

  • Page 31: F) Action Url

    f) Action URL Action URL Settings URL for various actions performed by the phone. These actions are recorded and sent as xml files to the server. Sample format is http://InternalServer /FileName.xml (5) SAFEGUARDING...
  • Page 32 Safeguarding Field Name Explanation Input settings Input 1 Open /Close Input port1 When choosing the low level trigger (closed trigger), detect the input port 1 (low level) closed trigger. Trigger Mode When choosing the high level trigger (disconnected trigger), detect the input port 1 (high level) disconnected trigger.
  • Page 33 Field Name Explanation Received the terminal equipment to send the DTMF password, if By duration correct, which triggers the corresponding output port (The Port level time change, By < Output Duration > control) Remote DTMF During the call, receive the terminal equipment to send the DTMF trigger By Calling password, if correct, which triggers the corresponding output port (The...

  • Page 34: Maintenance

    (6) MAINTENANCE a) AUTO PROVISION The equipment supports PnP, DHCP, and Phone Flash to obtain configuration parameters. They will be queried in the following order when the equipment boots. DHCP option → PnP server → P hone Flash Field Name Explanation Auto Provision Settings Show the current config file’s version.
  • Page 35 Field Name Explanation Config Encryption key for the configuration file Encryption Key Common Config Encryption key for common configuration file Encryption Key Download Fail Download failed and check times Check Times Save Auto Save the auto provision username and password in the phone until the server url Provision changes Information...

  • Page 36: B) Syslog

    Field Name Explanation 1. Disable – no update Update Mode 2. Update after reboot – update only after reboot. 3. Update at time interval – update at periodic update interval TR069 Settings Enable TR069 Enable/Disable TR069 configuration Enable TR069 Enable or disable TR069 Warning Tone Warning Tone ACS Server Type Select Common or CTC ACS Server Type.

  • Page 37: C) Config

    Level 4: warning; System may work correctly but needs attention. Level 5: notice; It is the normal but significant condition. Level 6: Informational; It is the normal daily messages. Level 7: debug; Debug messages normally used by system designer. This level can only be displayed via telnet.

  • Page 38: D) Update

    Field Name Explanation Save Save the current equipment configuration. Clicking this saves all configuration changes and makes them effective immediately. Configuration Backup Save the equipment configuration to a txt or xml file. Please note to Right click on the choice and then choose “Save Link As.” Configuration Reset Content Click the "clear"...

  • Page 39: E) Access

    e) ACCESS Through this page, user can add or remove users depends on their needs and can modify existing user permission. Field Name Explanation User Settings User shows the current user name Show the user level; admin user can modify the configuration. General user can only User level read the configuration.

  • Page 40: Logout

    (7) LOGOUT Click <Logout> from the web to exit. Users need to enter their user name and password again when visit next time.

  • Page 41: Appendix

    E. Appendix 1. Technical parameters Communication protocol SIP 2.0(RFC-3261) Main chipset Freescale i.MX 6Quad DSS key materials Stainless steel DSS Key 1 or 2 Audio amplifier Volume control Adjustable Full duplex Support (AEC) speakerphone Speech flow DTMF TYPE In-band, Out-of-band(RFC 2833), SIP INFO wideband speech G.722 code...

  • Page 42: Basic Functions

    2. Basic functions 2 SIP Lines PoE Enabled Full-duplex speakerphone (HF) Intelligent DSS Keys (Speed Dial/intercom etc) Wall mounted / In-wall Special integrated noise reduction module Dual microphone Omnidirectional voice pickup 2 embedded short circuit input interfaces 2 embedded short circuit output interfaces. Support 4 controlled events: remote DTMF; remote server’s commands;...

  • Page 43: The Broadcast Terminal Configuration Notice

    4. The broadcast terminal configuration notice How to avoid an incoherency sound when the broadcast playing? When the terminal use as broadcast, the speaker is loud, if not set mute for microphone, the AEC (echo cancellation) of equipment will be activated, which leads the sound incoherence. In order to avoid such circumstance, when the equipment turn to use as radio should be set as intercom mode, and activate the intercom mute, so as to ensure the broadcast quality.
