5.8.6.3

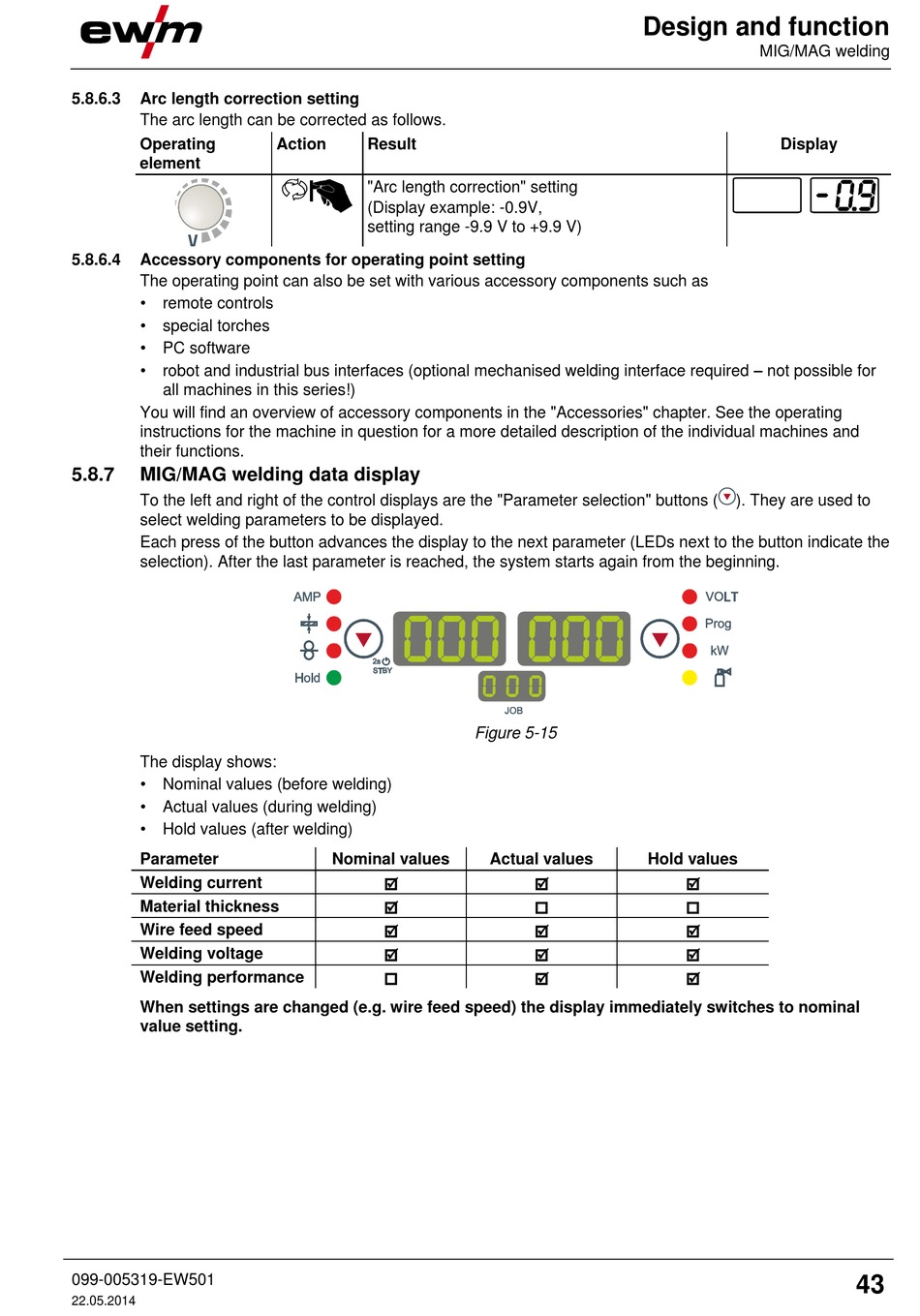

Arc length correction setting

The arc length can be corrected as follows.
Operating
element
5.8.6.4

Accessory components for operating point setting

The operating point can also be set with various accessory components such as
•
remote controls
•
special torches
•
PC software
• robot and industrial bus interfaces (optional mechanised welding interface required – not possible for
all machines in this series!)
You will find an overview of accessory components in the "Accessories" chapter. See the operating
instructions for the machine in question for a more detailed description of the individual machines and
their functions.
5.8.7

MIG/MAG welding data display

To the left and right of the control displays are the "Parameter selection" buttons (
select welding parameters to be displayed.
Each press of the button advances the display to the next parameter (LEDs next to the button indicate the
selection). After the last parameter is reached, the system starts again from the beginning.
The display shows:
•
Nominal values (before welding)
•
Actual values (during welding)
•
Hold values (after welding)
Parameter
Welding current
Material thickness
Wire feed speed
Welding voltage
Welding performance
When settings are changed (e.g. wire feed speed) the display immediately switches to nominal
value setting.
099-005319-EW501
22.05.2014
Action Result
"Arc length correction" setting
(Display example: -0.9V,
setting range -9.9 V to +9.9 V)
Nominal values





Design and function
Figure 5-15
Actual values Hold values





MIG/MAG welding
Display
). They are used to





43
