Operating elements in the machine

Item Symbol
1
2
3
4
5
099-005319-EW501
22.05.2014
Machine description – quick overview
Description 0
Wire spool holder
Wire feed unit
Welding torch function changeover switch (special welding torch required)
Changing over programs or JOBs
Infinite adjustment of welding performance.
Key button, automatic cutout
Wire feed motor supply voltage fuse
press to reset a triggered fuse
PC interface, serial (D-Sub connection socket, 9-pole)
Machine control – Operating elements

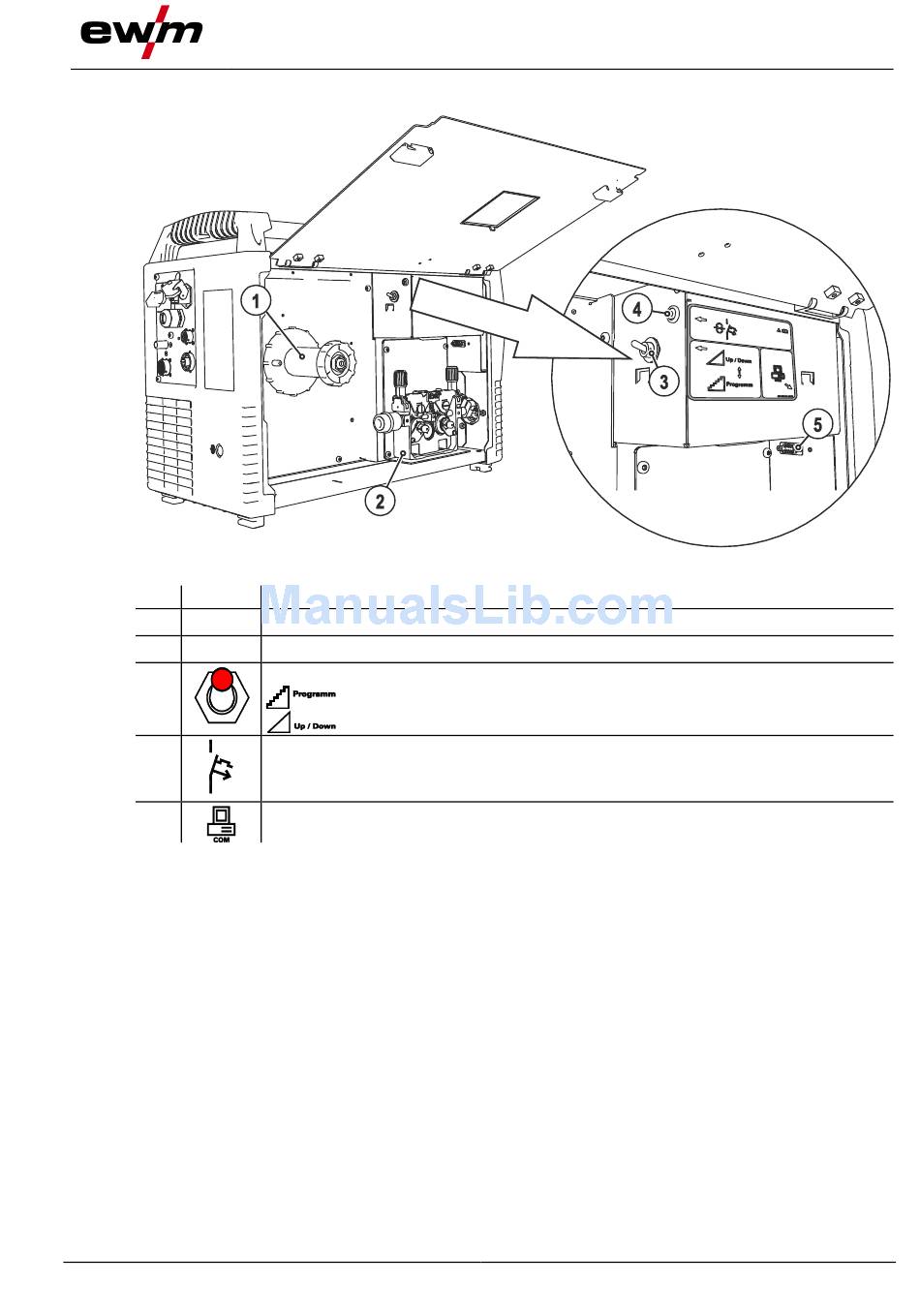

Figure 4-5
23
