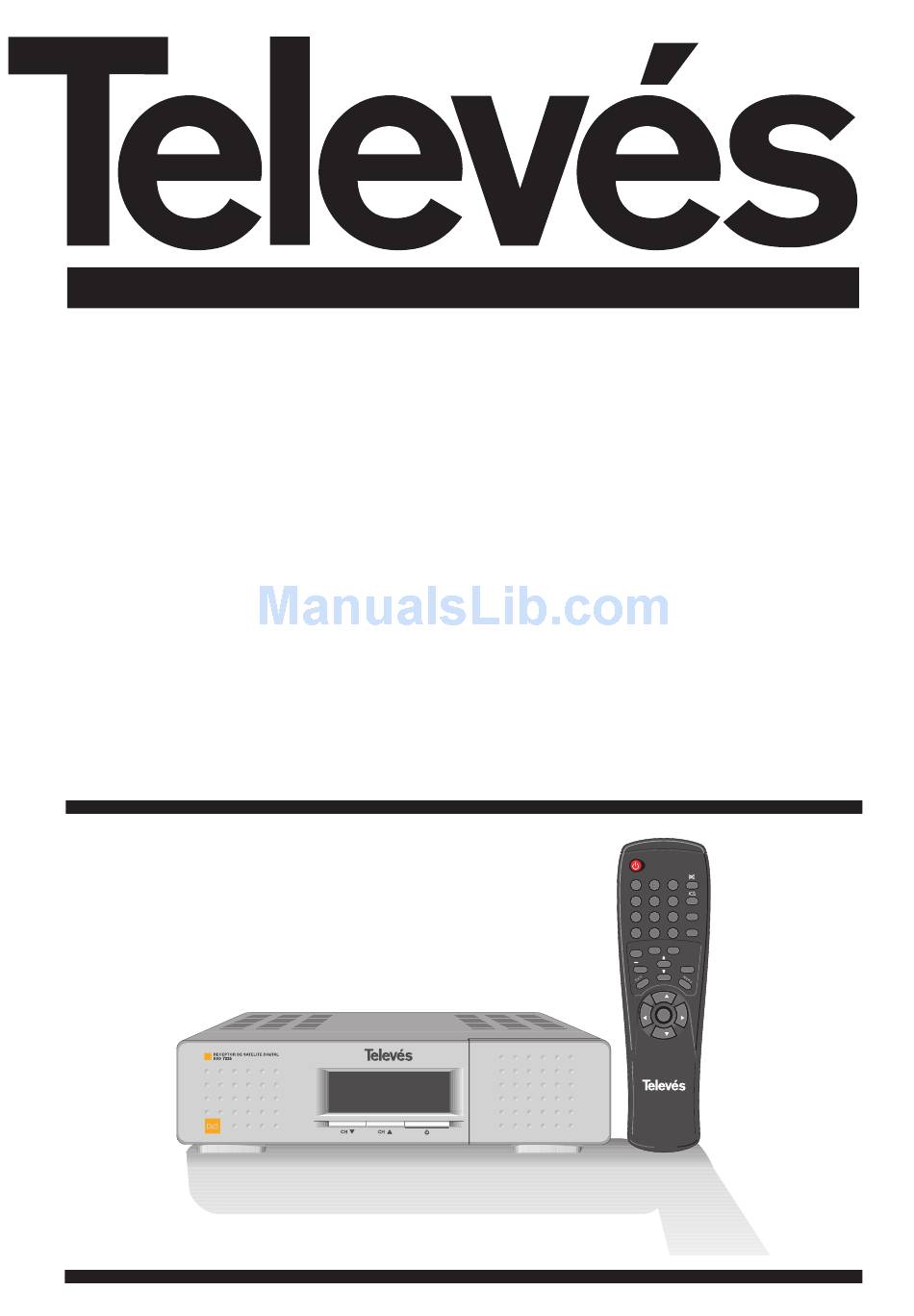

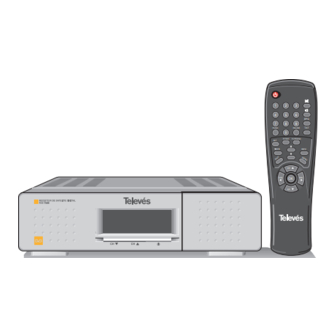

- Page 1 Receptor Satelite Digital Manual do utilizador Digital Satellite Receiver User instructions “RSD - 7235” FUNC PAUSE TV/SAT TV/RADIO INFO © Copyright, Televés, S.A.
-
Page 2: Table Of Contents
User instructions “RSD - 7235” INDEX ................. . 1.- Safety . -
Page 3: Safety
User instructions “RSD - 7235” 1.- Safety The Receiver which you have just purchased has been manufactured to meet international safety standards. We recommend that you carefully read the safety instructions below. POWERING: 110 - 240 V~ 50/60 Hz. OVERLOAD: Do not overload the mains sockets, extenders or adapters to avoid fire hazard. -
Page 4: Before Beginning
- Clock. monitors. 2.3.- Equipment Check that all of the following parts are in the box: 1 - Satellite Receiver RSD-7235 1 - Remote Control Unit 2 - “AA”, “R6” or “UM-3” batteries 1 - User manual... -
Page 5: Description Of Panels And Connections
User instructions “RSD - 7235” 3.- Description of panels and connections Fig. 1 Front Panel Button Function To switch the Receiver on and off In normal mode, this goes down through the channels; in a menu, it selects the previous element. In normal mode, this goes up through the channels;... - Page 6 User instructions “RSD - 7235” Fig. -1- Fig. -2- FUNC PAUSE > 95 % TV/SAT TV/RADIO INFO > 50°C < -5°C Fig. -3-...
-
Page 7: Installation Of Equipment
Satellite reception Terrestrial reception DiSEqC 7268 DO NOT PLUG THE Note: RECEIVER INTO THE - All of the cables MAINS until all the cables have been correctly that are used in connection to the connected. Receiver are shielded. RSD-7235 (Recommended) -
Page 8: Ready To Begin
User instructions “RSD - 7235” 5.- Ready to begin 5.1.- How to start Switch the TV on as well as all the additional equipment that may be connected to the system. (( S )) 2/ 8: eng Switch the satellite receiver on , by pressing the ON button on the receiver ( ) or on the remote control unit. -
Page 9: How To Mute The Sound
User instructions “RSD - 7235” 5.4.- How to mute the sound Press the button to mute the sound. 2/ 8: eng To switch the sound back on again, press the same button once more. The sound returns with the same volume as before. To adjust the volume press the VOL and VOL buttons. -
Page 10: Electronic Programming Guide (Epg)
“RSD - 7235” 5.8.- Electronic Programming Guide (EPG) The RSD-7235 receives and stores information on the TV and Radio channels that are being watched. This includes detailed information on the time schedule of the next programme. This guide is very easy to use, as it displays all the information in a single window onscreen. -
Page 11: How To Use The Favorite Channel List
User instructions “RSD - 7235” 5.10.- How to use the Favourite Channel List You can easily select your favourite TV or Radio channels using the Favourite Channel List. This list only contains your personally selected favourite TV or Radio channels. While watching a TV channel or listening to a Radio channel, press the OK button to see the Favourite Channel List. -
Page 12: Main Menu
User instructions “RSD - 7235” 6.-Main Menu Press the MENU button when you a watching a programme and the main menu will appear on screen. Channel Manager TV Channel Radio Channel Program Guide Select one of the menu options and press the OK button. Timer User Installation Antenna Setup... -
Page 13: Channel Manager Menu
User instructions “RSD - 7235” 7.- Channel Manager Menu 7.1.- TV/RADIO Channels Channels can be controlled directly with the TV and Radio channels list. The functions of the channels can be edited when you are watching them. In this The TV channel list (or radio) is menu, you can create/edit favourite programmes, move, lock, rename, erase empty before the channel search. - Page 14 User instructions “RSD - 7235” - Rename channels: By placing the cursor over this option, you can move to the right-hand column using the button. Select the channel with the name that you want to change and then press OK. An alphanumeric table appears.
-
Page 15: User Installation Menu
User instructions “RSD - 7235” 8.- User Installation menu 8.1.- Antenna Setup This menu lets you enter the configuration parameters of the antenna. You can access this menu by pressing the OK button over the “Antenna Setup” option of the main menu. You can assign satellites, LNBs and switches to 16 antennas in this menu. - Page 16 User instructions “RSD - 7235” In the menu, when we select the “Signal level” option and press the OK button over it, we are informed of the signal level with which we receive the satellite. This is useful when we are installing the antenna, as it serves as a guide Antenna Satellite ASTRA...
-
Page 17: Auto Search (Satellite Exploration)
User instructions “RSD - 7235” 8.2.- Auto Search (Satellite exploration) To carry out the search of programmes offered by any of the satellites in your installation, press the OK button over the “Auto Search” option in the main menu. If you are in the “Antenna Setup” section, you can go directly to this menu by pressing the OK button over the “Go to Auto Search”... - Page 18 User instructions “RSD - 7235” This input frequency range is based on the frequency values of the local oscillator that is assigned to each transponder. The frequency range covers all the values. Press the OK button over the “OK” box in the menu to confirm the type of search.
-
Page 19: Tp Setup (Transponder Exploration)
User instructions “RSD - 7235” 8.3.- TP Setup (Transponder exploration) If you want to look for new channels in a recently launched satellite, or in one that has only recently been programmed into the Receiver, or in a newly installed transponder of a satellite that already existed, the best way to do this is to use the “TP Setup”... - Page 20 User instructions “RSD - 7235” The receiver also disposes of the manual “Set PID” option, although it should know this data. In general, this option does not need to be used as the receiver automatically detects all the programmes contained in the transponder. However, for some programmes that are transmitted in test mode, we Antenna Transponder...
-
Page 21: Parental Lock (Access Control)
User instructions “RSD - 7235” 8.4.- Parental Lock (access control) When you consider it necessary, you can lock certain channels with the “Parental Lock” option. With this option, you can stop your children from seeing channels which you believe to be inappropriate for them. Only those who know the password can access these channels to watch them. -
Page 22: Options
User instructions “RSD - 7235” 8.5.- Options In this menu, you can select the parameter values indicated below. You can access this menu by pressing the OK button over the “Options” option in the main menu. OSD Language You can change the language that is used for the menus using the buttons in the “OSD language”. -
Page 23: Data Transfer (Receiver Download)
User instructions “RSD - 7235” 8.6.- Data transfer (Receiver download) This RSD receiver disposes of the possibility of transfering data and software to another RSD receiver via an RS-232 cable. Connect the TV to the main RSD receiver and select “Data Transfer” in the main menu. -
Page 24: How To Reset The Receiver To The Factory Settings
User instructions “RSD - 7235” 8.7.- How to reset the Receiver to the factory settings This function changes all the parameters that you may have entered back to to those set at factory. The receiver will carry out the following changes when you press the OK button over “Factory Default”: Channel Manager TV Channel... -
Page 25: Electronic Programming Guide (Epg)
To activate this menu press the OK button over the “Receiver Info.” option on the main menu. Press the EXIT button to exit this menu. Product: RSD-7235 SW Version: 1.03d(102F) HW Version: 1200-130-L ROM Version: D1.02 Televés S.A. -
Page 26: Annex 1.- Motor Position Setting
User instructions “RSD - 7235” Annex 1.- Motor Position Setting This menu lets you change the orientation of the motorised antenna to select the new orbital positions of the different satellites or to correct the satellite positions that have already been stored. In "Antenna Setup"... -
Page 28: Technical Specifications
User instructions “RSD - 7235” Technical Specifications Fully compatible with DVB norme Video decoder MPEG-2 Main Profile @ Main Level Process rate up to 15Mbits/s Video format 4:3, 16:9 Audio decoder MPEG-1 layer I & II (Musicam Audio) Mono, Dual, Stereo, Joint Stereo System resources Processor STi 5500... -
Page 30: List Of Pre-Programmed Channels
“RSD - 7235” Nº Programa Idioma Satelite Nº Programa Idioma Satelite Nº Programa Idioma Satelite No. Program Language Satellite No. Program Language Satellite No. Program Language Satellite Euronews Français Hot Bird EinsMuXx Allemand Astra 123 RAIeducat Italien Hot Bird TV5 Europe Français Astra MDR Fersehen Allemand... - Page 31 “RSD - 7235” Nº Programa Idioma Satelite Nº Programa Idioma Satelite Nº Programa Idioma Satelite No. Program Language Satellite No. Program Language Satellite No. Program Language Satellite 184 Tv.nrw Hot Bird 245 IRIB 2 Iran Hot Bird 306 TEST Turkie Turksat 185 TV Polonie Pologne...
- Page 32 “RSD - 7235” Nº Programa Idioma Satelite Nº Programa Idioma Satelite Nº Programa Idioma Satelite No. Program Language Satellite No. Program Language Satellite No. Program Language Satellite 367 Service2 Eutel W3 422 QVC Astra 28° 477 ART Music Astra 28° 368 ISIK TV Eutel W3 423 Q-I...
-
Page 34: Guarantee
Televes S.A. offers a six-month guarantee, beginning from the date of purchase. Retain the receipt to determine this date. During the guarantee period, Televes S.A. is responsible for the faults produced due to the defects of the equipment or manufacturing. Televes S.A. complies with the guarantee by repairing or substituting the faulty equipment as it believes necessary. - Page 35 33 01 60 18 30 40. Tel. 981 52 22 00 Fax 981 52 22 62 33 01 60 18 30 49. televes@televes.com televes.fr@televes.com TELEVES MIDDLE EAST FZE www.televes.com P.O. Box 17199 JEBEL ALI FREE ZONE DUBAI, UNITED ARAB EMIRATES Miembro de número del...
