Summary of Contents for Televes ZAS HD SAT

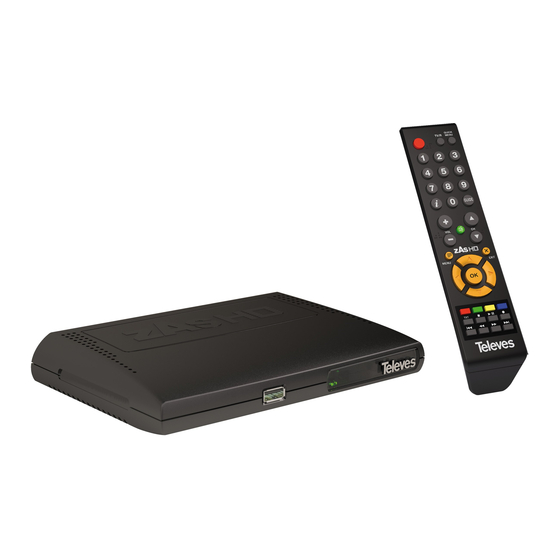

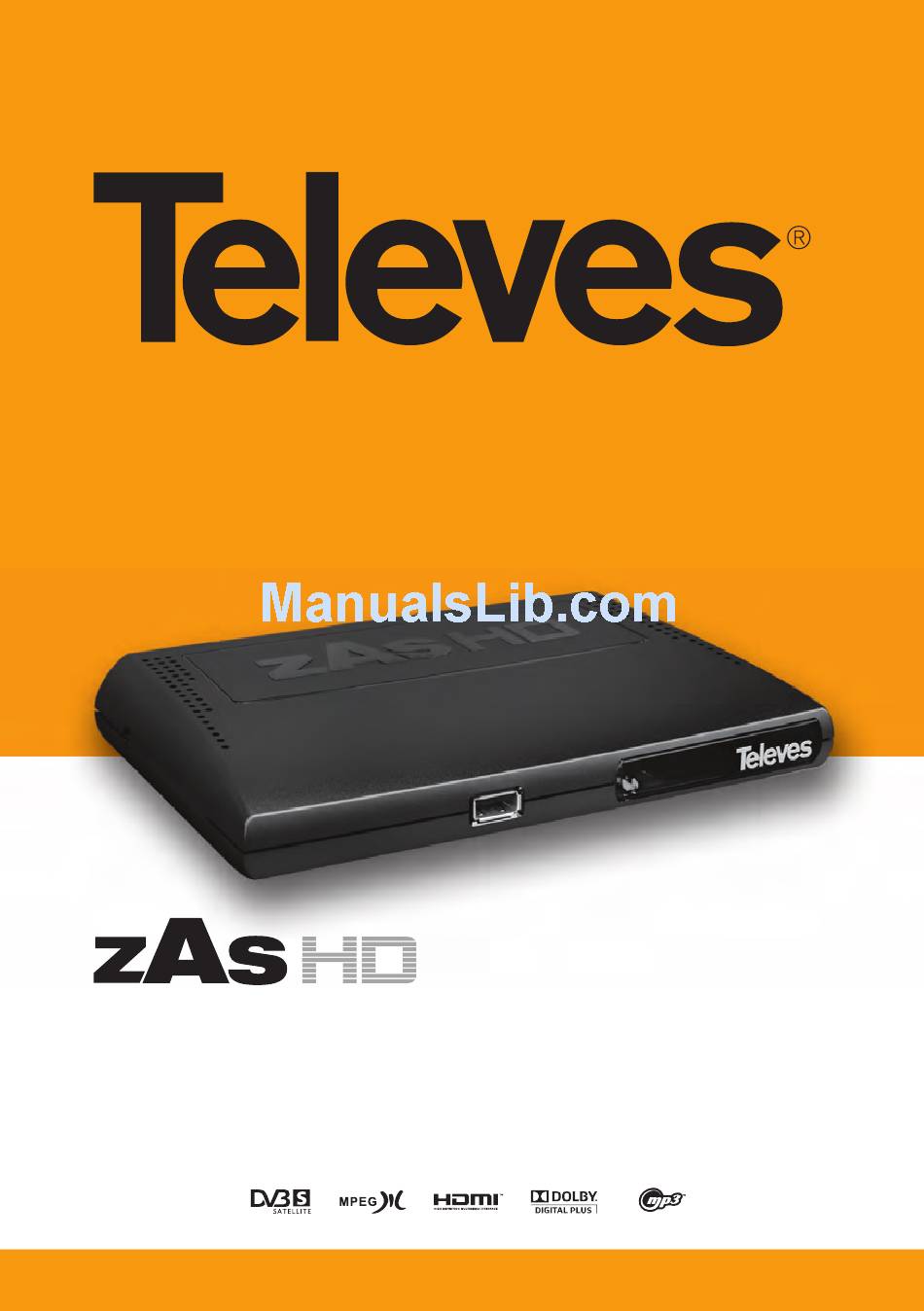

- Page 1 Ref. 717501 SATELLITE User Manual High Definition TV Satellite Receiver w w w . t e l e v e s . c o m...
-
Page 3: Table Of Contents
2.3. ZAS HD SAT general operation ........ -
Page 4: Safety Recommendations
¡ Read carefully this manual before attempting to install or handle this receiver ! The ZAS HD SAT just purchased has been manufactured according to international safety standards. Dispose of electronics you no longer need in a friendly environment and in >... -
Page 5: General Information
Throughout this manual you will see that the use of the Up to 5000 programmes can be stored. ZAS HD SAT receiver is based on a variety of menus easy Quick and easy software upgrading via USB port. to use. -
Page 6: Description Of Connections
High Definition TV Satellite Receiver 3. Description of connections Receiver Front Panel Name Function description HOST USB Connection for a PEN DRIVE, memory card reader or external hard drive (FAT 32) with separate powering. Operating LED (Red: Standby; Green: power ON). IR sensor. -
Page 7: Remote Control Unit
3.1. Remote Control Unit Button Function description Switches between “power ON” and “STANDBY” mode. TV/R Switches between TV and Radio. Direct access to functions: Subtitles, Language, Screen QUICK MENU format and SCART switching-off. To select a desired program number. 0 ... 9 Direct data entry on the menu. -
Page 8: Setting-Up
HD SAT (simple installation). Connect the video and audio signals between the receiver ZAS HD SAT and the TV set by means of a SCART or a HDMI extender. Turn-on the equipments. Power the receiver ZAS HD SAT using its mains adapter ... -
Page 9: First Steps
5. First steps After the wiring is complete, the mains adapter plugged, and the ZAS HD SAT powered ON with the RCU (press button , it needs some time to make a self-check and be ready to work. The front LED flashes during this period. Do not switch off the receiver or press any key. - Page 10 High Definition TV Satellite Receiver This screen will indicate if you have a DiSEqC, Motor or Unicable device in your antenna installation. If you have a simple installation, ie an antenna connected directly to the receiver, keep the option “None. ” In paragraph Satellite, you must indicate the satellite your antenna is pointing.
-
Page 11: Basic Functions
6. Basic functions 6.1. TV or Radio selection While watching a TV channel, press TV / R on the remote control unit to switch between TV and Radio channels. Pressing this key again, you return to the previous mode. ... -
Page 12: Volume / Mute Control
High Definition TV Satellite Receiver : Channel information : Indicates that the channel audio in Dolby Digital Plus UDIO format. : Indicates that the channel transmits several audios. AUDIO Infomation banner : Indicates that the channel provides subtitles. AUDIO odia las matemáticas matemáticas : Indicates that the channel provides teletext. -
Page 13: Quick Menu
6.5. Quick menu A quick way to access some of the functions of ZAS HD SAT such as the subtitle language, audio language, the image format or disabling the SCART, by pressing the QUICK MENU. The selected option appears highlighted. Use keys ... -
Page 14: Teletext
The “=” indication is displayed beside the page number. Press OK again to run the page. The control of the ZAS HD SAT features coloured buttons that facilitate fast access to teletext pages. -
Page 15: Electronic Program Guide (Epg)
7. Electronic Program Guide (EPG) The ZAS HD SAT provides the “Program Guide” for the user to access the TV guide (and also radio guide), which displays information on current programming (or subsequent) of different channels such as name, start time, end time, a brief summary ... -
Page 16: Main Menu
High Definition TV Satellite Receiver 8. Main menu Press MENU to activate the main menu. This menu includes six submenus as shown in the picture: - Channel Lists - Timers - Installation and Setup - System Information - Recording Assistant - Media Browser Select from the menu options with the keys ... -
Page 17: Channel List Menu
9. Channel list menu Press MENU, select ‘Channel List’ with keys and press OK. It shows all the lists of available channels. The lists are editable by the user, i.e., a personalised list can be created. Use this option to order the channels to your convenience. -
Page 18: Complete Radio List
High Definition TV Satellite Receiver 9.4. Complete Radio list The complete list of Radio shows all the radio channels that have been found during the “channel searching”. The management of these channels is equal to the “FTA channels”. You will not be able to hear encrypted channels. 9.5. -
Page 19: Timers
10. Timers Through this menu you will be able to make the ZAS HD SAT record an event at a programmed time. Up to 20 different events can be programmed. The list is displayed empty if no event is created. ... -
Page 20: Installation And Configuration Setting-Up
High Definition TV Satellite Receiver 11. Installation and Configuration Setting-up This menu lets you customize the functions of the ZAS HD SAT to suit your preferences. 11.1. Preferences Time bar information Between 1 and 10 seconds, select the time to show the ... -
Page 21: Regional Settings
11.3. Regional Settings Through this menu you can select the zone where is the receiver and how to select the time zone. Country Select the country where the receiver is installed with the keys . Available options are: Spain, Portugal, United Kingdom, Germany, France and Italy. -
Page 22: Access Control
High Definition TV Satellite Receiver Language 1/ Language 2 Audio Select a language among those available for the audio using the keys . If the language 1 chosen is not available, we will use the selected language 2. If the program does not have the desired language for audio, by default it will use the first language transmitted. - Page 23 - Don’t forget your new password. Without it, you will not be able to access the menus and/or locked programmes. - If you forget your password, or if you have any questions, or send us your suggestions and feedback, contact us at the email address “asistenciatecnica@televes.com.”...
-
Page 24: Channels Searching
High Definition TV Satellite Receiver 11.6. Channels searching This section describes the steps required for configuring the installation, the channel searching or maintaining lists of channels. Antenna configuration This menu lets you configure the receiver according to your installation (simple, DiSEqC, Motor, Unicable). keys let you to scroll through the choices. - Page 25 8 way splitter Your installation has a 8 input DiSEqC switch, each connected to an antenna oriented to different satellites. It works the same as the 2 inputs. Motor Your facility has a motor to move the antenna and point it automatically to the selected satellite*.
- Page 26 High Definition TV Satellite Receiver Unicable Your facility has a Unicable system, where you can connect up to 8 receivers in a single cable. In the “IF Channel” option, select one of the 8 IF channels for your receiver. If the center frequency for the selected channel is not ...
- Page 27 NIT and list all channels that appear in it. Update channels list If you have an updated list of channels and wish to update the ZAS HD SAT, proceed as follows: Copy the list in a memory stick (pen drive) FAT 32 in the ...
- Page 28 Select the list you want to export and press OK. Move the cursor to “YES” and press OK. The ZAS HD SAT shall record the channel list of the memory stick. The recording may take a few moments. Please wait.
-
Page 29: Maintenance
Connect the memory stick to the receiver (front USB connector). Select “USB Software Update” option and press OK. The ZAS HD SAT will look for the update and proceed with its installation. The update may take a few moments. Please wait. ... -
Page 30: System Information
High Definition TV Satellite Receiver 12. System information This feature allows you to display information about the receiver such as name, software and hardware versions, serial number, ... etc. Select the “System Information” option using the keys, and press OK. A screen with the current values is displayed. -
Page 31: Recording Wizard
13. Recording Wizard This menu allows you to manage the information available on disk or pen drive (memory stick). Select “Recording Wizard” and click OK. It then shows a list of recorded files on the external drive and free space on it. -
Page 32: Recording
High Definition TV Satellite Receiver 14. Recording The ZAS SAT HD lets you record a program on an external drive in two ways: a) real-time, b) using the “Timer”. For this feature be possible, you must have an external disk formatted with FAT 32, a pen drive (memory stick) or a memory card reader. -
Page 33: Timeshift Function
TimeShift function For this function be possible, you must have an external disk or a USB drive (memory stick) formatted FAT 32. The time lapse between the real time video and that recorded onto disc is called TimeShift. - Press the key while watching a TV programme. -
Page 34: Media Browser
High Definition TV Satellite Receiver 15. Media Browser This option allows you to watch video files into formats AVI, MKV and MP4, listen to audio files in MP3 format, or display image files in JPEG format from a USB device or a card reader SD / MMC. - Page 35 Music - By using the keys select the ‘Music’ parameter and press OK to confirm. - By using the keys select the directory where are the audio files. Click OK to accept the folder, or EXIT to go up a level in the directory. - Only are shown audio files in the directory or folder.
-
Page 36: Glossary
High Definition TV Satellite Receiver 16. Glossary DVB: Digital Video Broadcasting. LNB : Low Noise Block Consortium of various international organizations and It is a device used for receiving signals from satellites. companies whose objective is the realization of standards Located in the focus of the dish, converts the microwave worldwide aimed at the development of digital television. -
Page 37: Menu Structure
Menu structure Menu Channels list FTA TV channels FTA Radio channels Complete TV list Complete Radio list Favourites A Favourites B Favourites C Favourites D Favourites E Favourites F Timers Installation and Configuration Setting-up Preferences Time bar information Output settings HDMI output SCART video format Aspect ratio... -
Page 38: Technical Specifications
High Definition TV Satellite Receiver Technical specifications LNB / Tuner Input connector A ....1 x F Output connector ....1 x F Input frequency . -
Page 39: Troubleshooting
Troubleshooting Before getting in touch with your local service, be sure to follow the instructions below. If your receiver does not work correctly after reading the list of troubleshooting, please contact your local dealer or service center. What is happening Possible why What to do The front panel LED... - Page 40 High Definition TV Satellite Receiver What is happening Possible why What to do There is no sound or (I) The volume of your TV and / or (I) Check the volume on your TV and / or Receiver sound is too low receiver is very low or at a minimum.
- Page 41 Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license from Dolby Laboratories. The acronym HDMI, the HDMI logo and High Definition Multimedia Interface are trademarks of HDMI Licensing LLC. Treatment of electrical and electronic equipment at the end of its useful life (applicable in the European Union and European countries with selective residual collection systems).
- Page 42 High Definition TV Satellite Receiver...
- Page 44 717501_005_EN...
