Installing the PCI Expansion Card

• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.

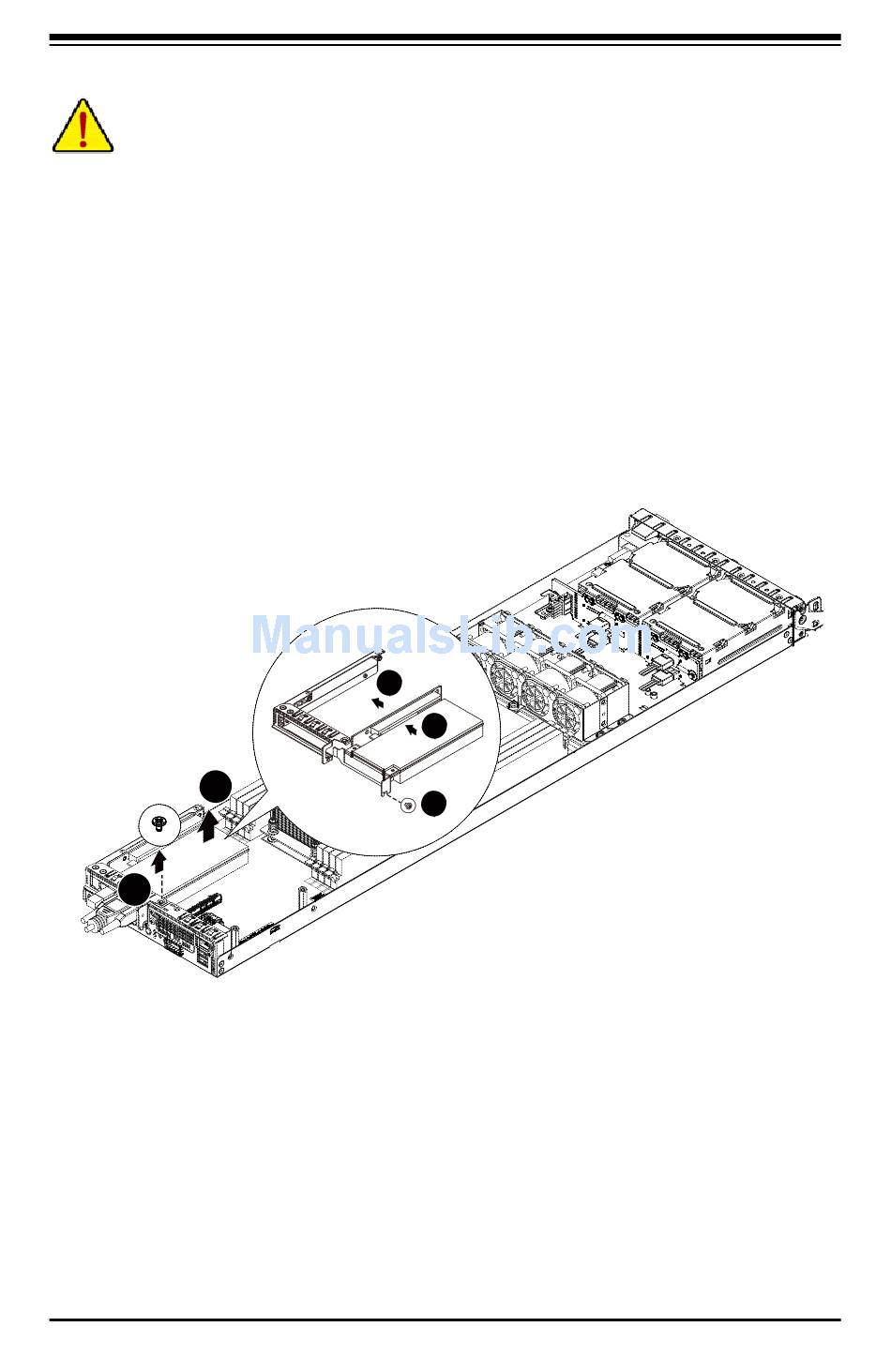

Follow these instructions to PCI Expansion card:
1. Loosen the riser bracket screw.
2. lift the riser bracket slightly.
3. Attach the mini PCI card slot to the riser bracket.
4. Securing the mini PCI card with two screws.
5. Orient the PCI card with the riser guide connector and push into the slot until the PCI card sits in the
PCI card connector.
6. Reverse the previous steps to install the riser bracket.
2
1
3
4
5
- 25 - Hardware Installation
