Installing Add-on Card (Optional)

• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.

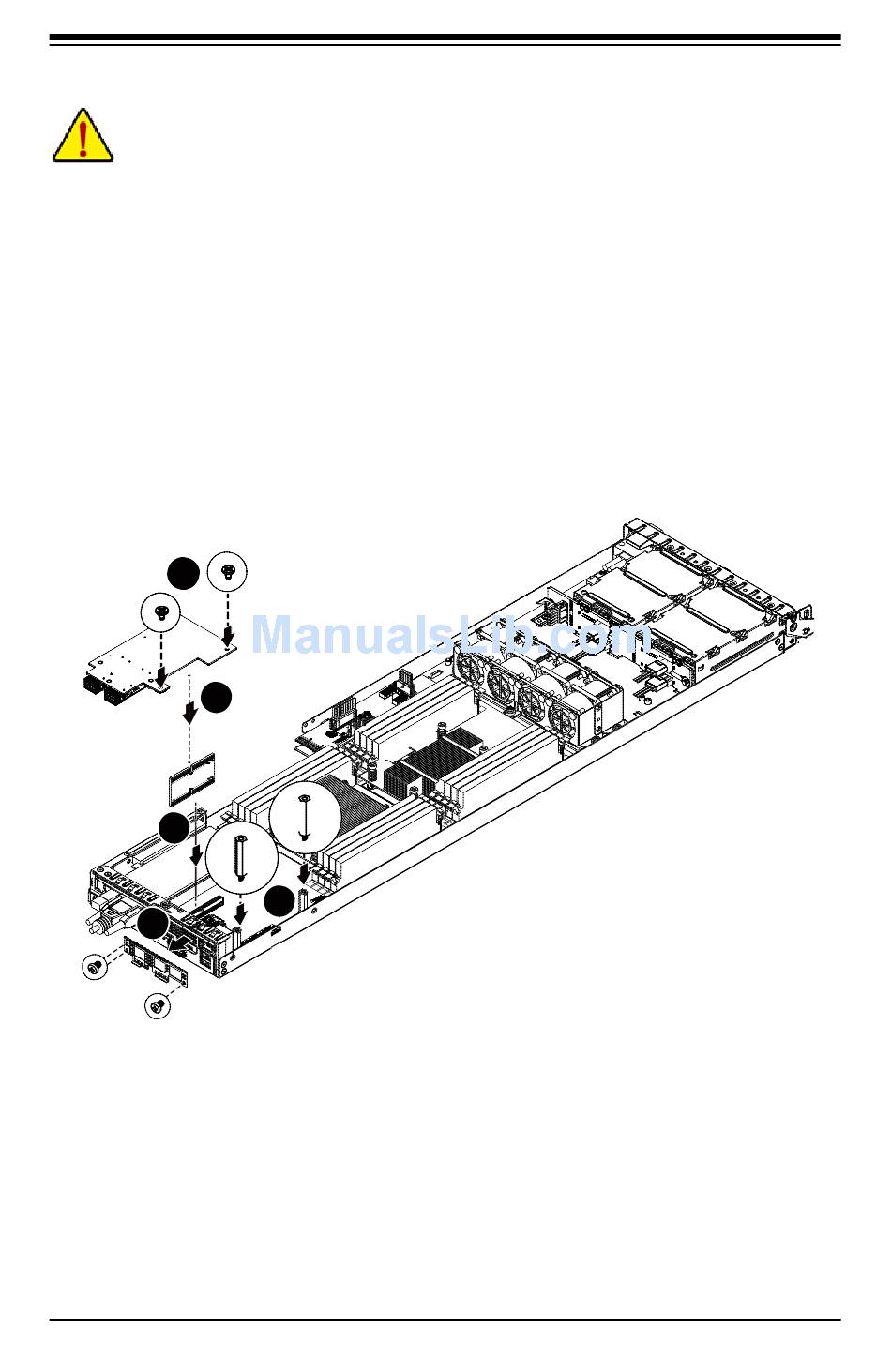

Follow these instructions to install Add-on card:
1. Remove the fan duct from the system following the steps outlined in 2-4 Removing and Installing
the Fan Duct.
2. Remove the rear bracket.
3. Secure the stand-off on the motherboard with screws.
4. Attach the interposer card to the add-on card.
5. Insert the add-on card into the selected slot (MEZZ_1)and secure the card with screws. Make sure
that the card is properly seated.
6. Secure the add-on card in place with screws.
5
4
3
1
Hardware Installation
2
