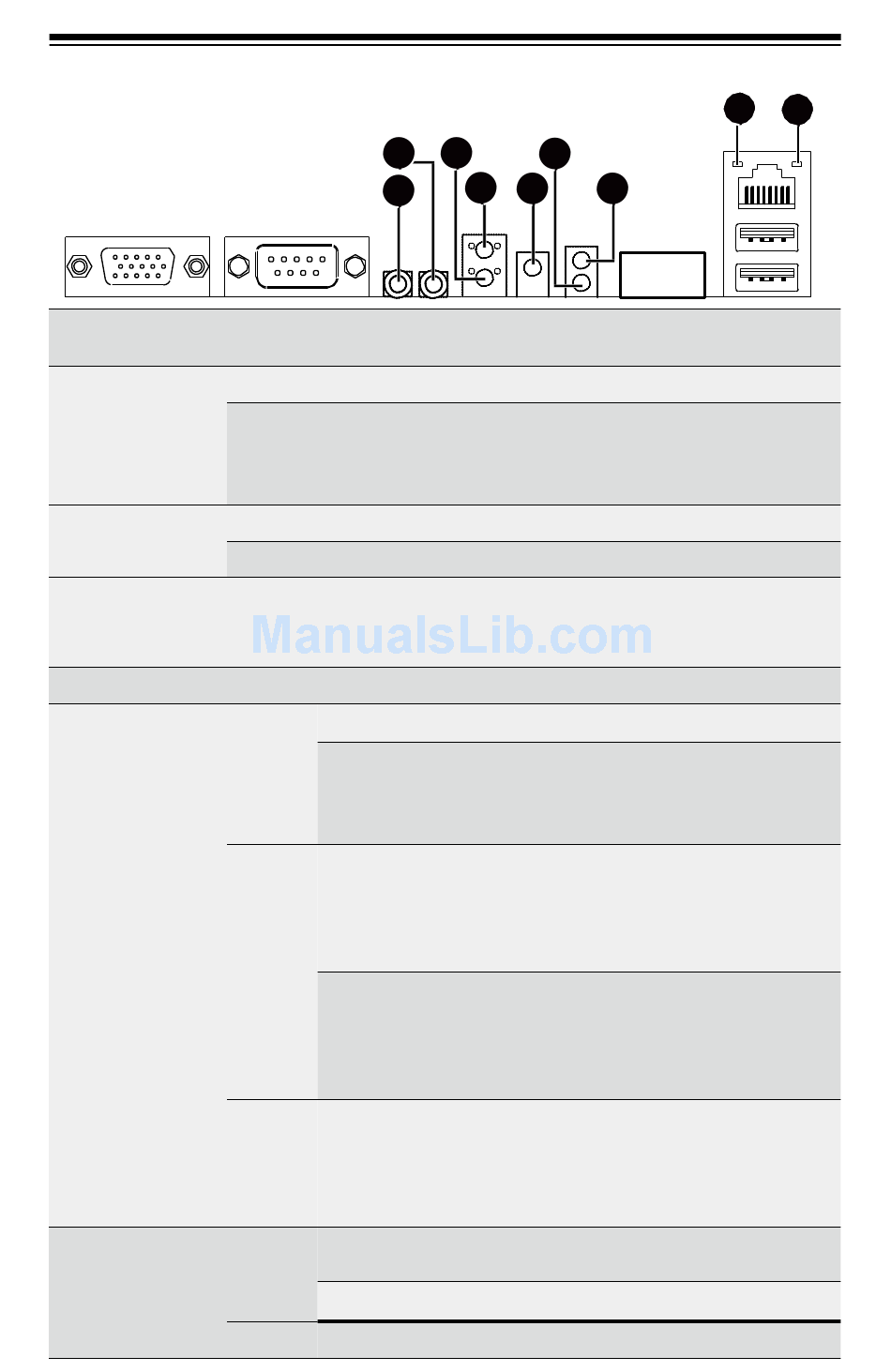

Rear System Button and LEDs
No.
Name
Power button
1.
and LED
ID Button
2.
and LED
3.
NMI button
4.
Reset Button
System
5.
Status LED
LAN2 Active/
6.
Link LED
2
1
Color
Status
Green
Solid On
N/A
Off
Blue
Solid On
N/A
Off
Green
Solid On
Blink
Amber
Solid On
Blink
N/A
Off
Green
Solid On
Blink
N/A
Off
3
7
4
5
Critical
Event
N/A
System is powered on
•
System is not powered on or in ACPI S5
state (power off)
•
System is in ACPI S4 state
(hibernate mode)
N/A
System identification is active.
N/A
System identification is disabled.
Press the button server generates a NMI to the
processor if the multiple-bit ECC errors occur,
which effectively halt the server.
Press the button to reset the system.
N/A
System is operating normally.
Degrade condition, may
indicates the following:
N/A
•
CPU failure
•
DIMM killed
Critical condition, may indicates the following:
•
Power module failure Yes
•
System fan failure
•
Power supply voltage issue
•
System temperature/voltage issue
Non-critical condition, may
indicates the following:
N/A
•
Redundant power module failure
•
Temperature and voltage issue
•
Chassis intrusion
System is not ready.
May indicate the following:
N/A
•
POST error
•
NMI error
•
Processor or terminator missing
Link between system and network
N/A
or no access
N/A
Data transmission or receiving is occurring
- 33 -
N/A
No data transmission or receiving is occurring
8
6
Description
Hardware Installation
9
N/A
