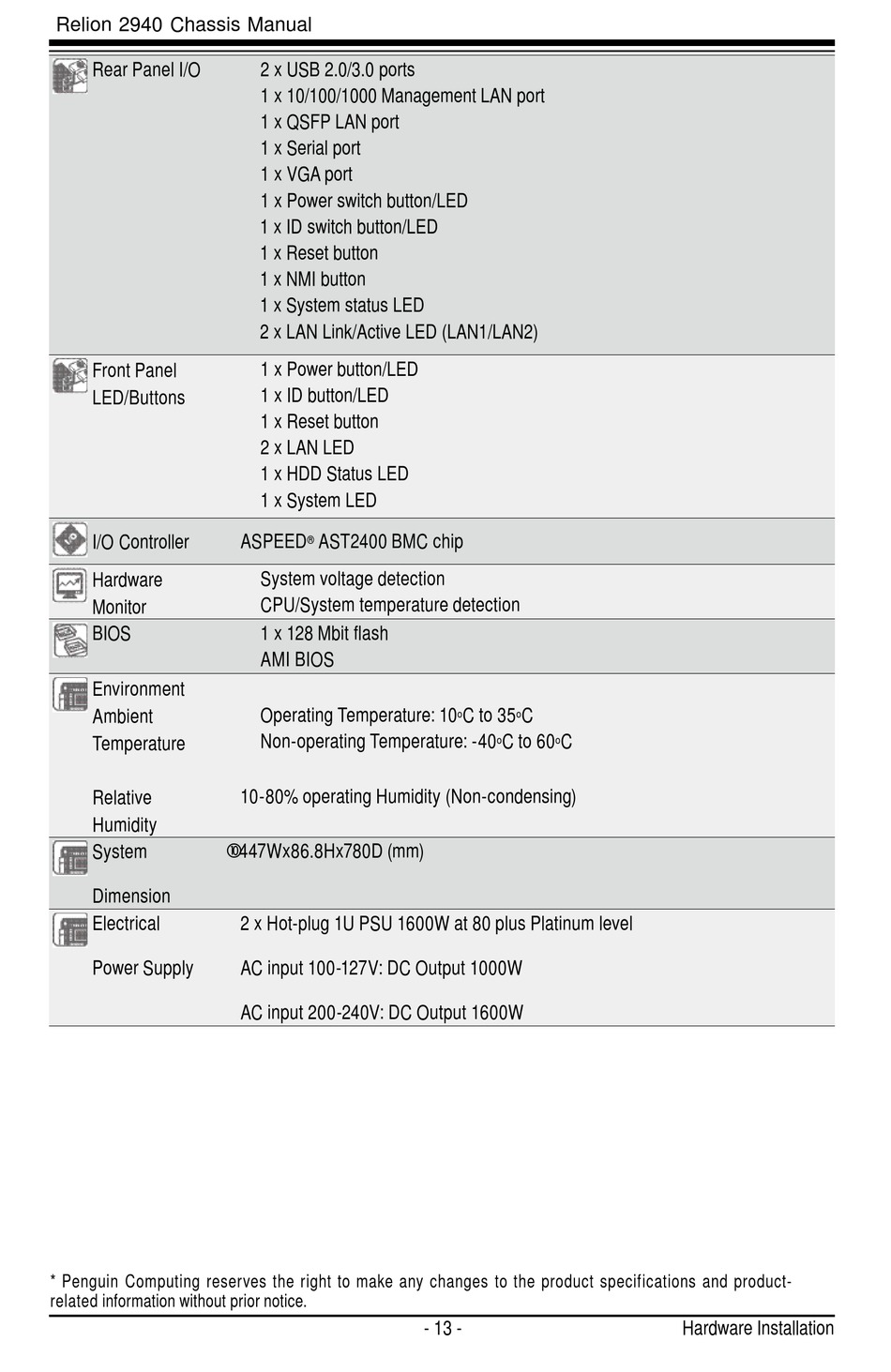

Relion 2940 Chassis Manual
Rear Panel I/O
Front Panel
LED/Buttons
I/O Controller
Hardware
Monitor
BIOS
Environment
Ambient
Temperature
Relative
Humidity
System
Dimension
Electrical
Power Supply
* Penguin Computing reserves the right to make any changes to the product specifications and product-
related information without prior notice.
2 x USB 2.0/3.0 ports
1 x 10/100/1000 Management LAN port
1 x QSFP LAN port
1 x Serial port
1 x VGA port
1 x Power switch button/LED
1 x ID switch button/LED
1 x Reset button
1 x NMI button
1 x System status LED
2 x LAN Link/Active LED (LAN1/LAN2)
1 x Power button/LED
1 x ID button/LED
1 x Reset button
2 x LAN LED
1 x HDD Status LED
1 x System LED
ASPEED AST2400 BMC chip
®
System voltage detection
CPU/System temperature detection
1 x 128 Mbit flash
AMI BIOS
Operating Temperature: 10
Non-operating Temperature: -40
10-80% operating Humidity (Non-condensing)
 447Wx86.8Hx780D (mm)
2 x Hot-plug 1U PSU 1600W at 80 plus Platinum level
AC input 100-127V: DC Output 1000W
AC input 200-240V: DC Output 1600W
C to 35 C
o o
C to 60 C
o o
