Installing the Memory

Read the following guidelines before you begin to install the memory:
• Make sure that the motherboard supports the memory. It is recommended that memory of the
same capacity, brand, speed, and chips be used.
• Always turn off the computer and unplug the power cord from the power outlet before installing
the memory to prevent hardware damage.
• Memory modules have a foolproof design. A memory module can be installed in only one
direction. If you are unable to insert the memory, switch the direction.

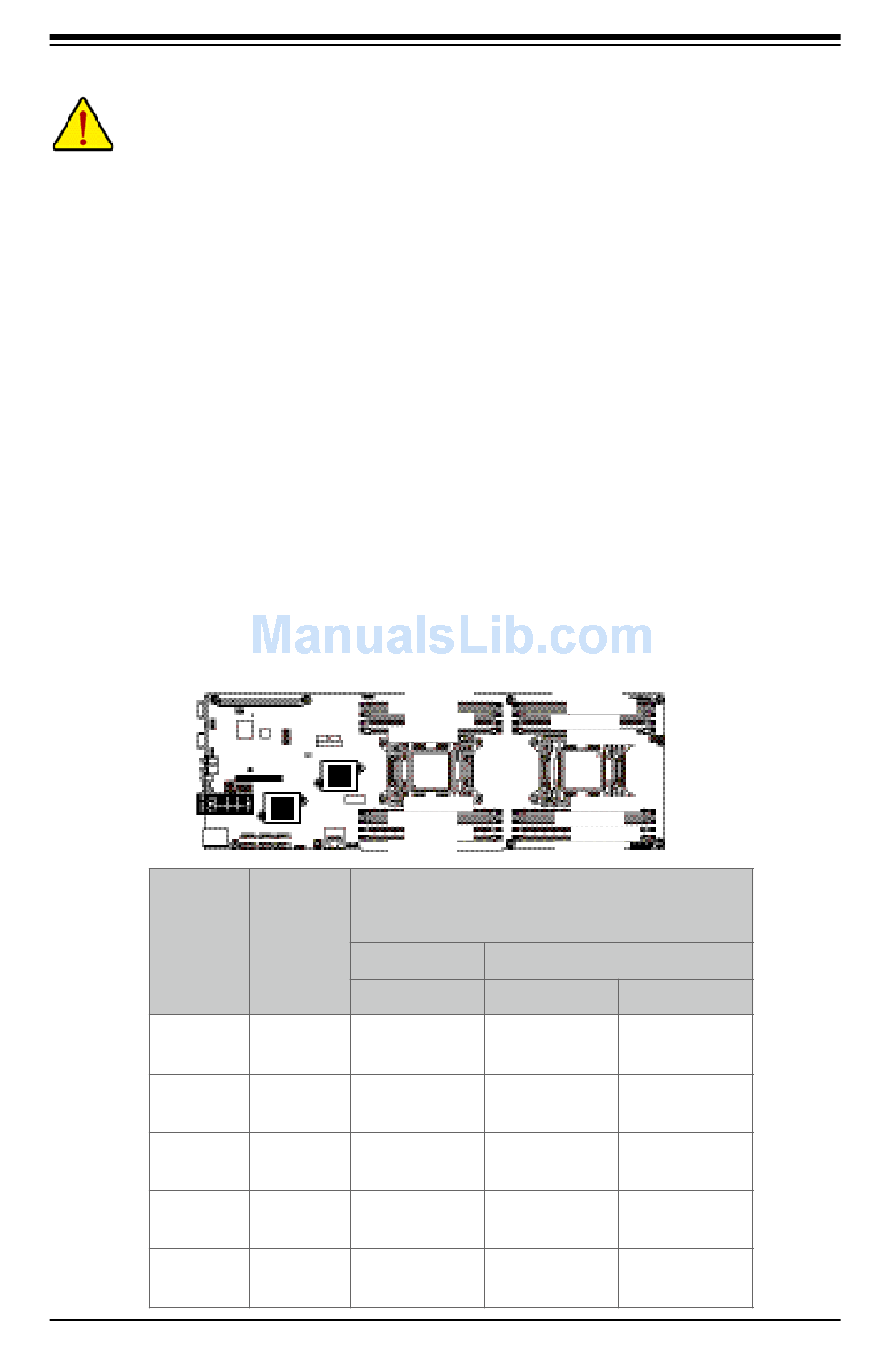

2-5-1 Four Channel Memory Configuration

The system provides sixteen DDR4 memory sockets and supports Four Channel Technology. After the
memory is installed, the BIOS will automatically detect the specifications and capacity of the memory.
Enabling Four Channel memory mode will be four times of the original memory bandwidth.
The four DDR4 memory sockets are divided into four channels each channel has two memory sockets as
following:
Channel 1: DIMM_P0_A0/DIMM_P0_A1 (For pimary CPU)/
DIMM_P1_E0/DIMM_P1_E1 (For secondary CPU)
Channel 2: DIMM_P0_B0/DIMM_P0_B1 (For pimary CPU)
DIMM_P1_F0/DIMM_P1_F1 (For secondary CPU)
Channel 3: DIMM_P0_C0/DIMM_P0_C1 (For pimary CPU)
DIMM_P1_G0/DIMM_P1_G1 (For secondary CPU)
Channel 4: DIMM_P0_D0/DIMM_P0_D1 (For pimary CPU)
DIMM_P1_H0/DIMM_P1_H1 (For secondary CPU)
Type
RDIMM
RDIMM
RDIMM
RDIMM
LRDIMM
DIMM_P0_C0
DIMM_P0_C1
DIMM_P0_D0
DIMM_P0_D1
DIMM_P0_B1
DIMM_P0_B0
DIMM_P0_A1
DIMM_P0_A0
Ranks Per
Slot Per Channel (SPC) and DIMM Per Channel (DPC)
DIMM and
Data Width
1 Slot Per Channel
1DPC
SRx4 2133
SRx8 2133
DRx8 2133
DRx4 2133
QRx4 2133
- 23 -
DIMM_P1_E0
DIMM_P1_E1
DIMM_P1_F0
DIMM_P1_F1
DIMM_P1_H1
DIMM_P1_H0
DIMM_P1_G1
DIMM_P1_G0
Speed (MT/s);
2 Slot Per Channel
1DPC 2DPC
2133 1866
2133 1866
2133 1866
2133 1866
2133 2133
