Installing the PCI Expansion Card

• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the
system is powered-down and all power sources have been disconnected from the server prior to
installing a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
• The PCI riser assembly does not include a riser card or any cabling as standard. To install a PCI
card, a riser card must be installed.

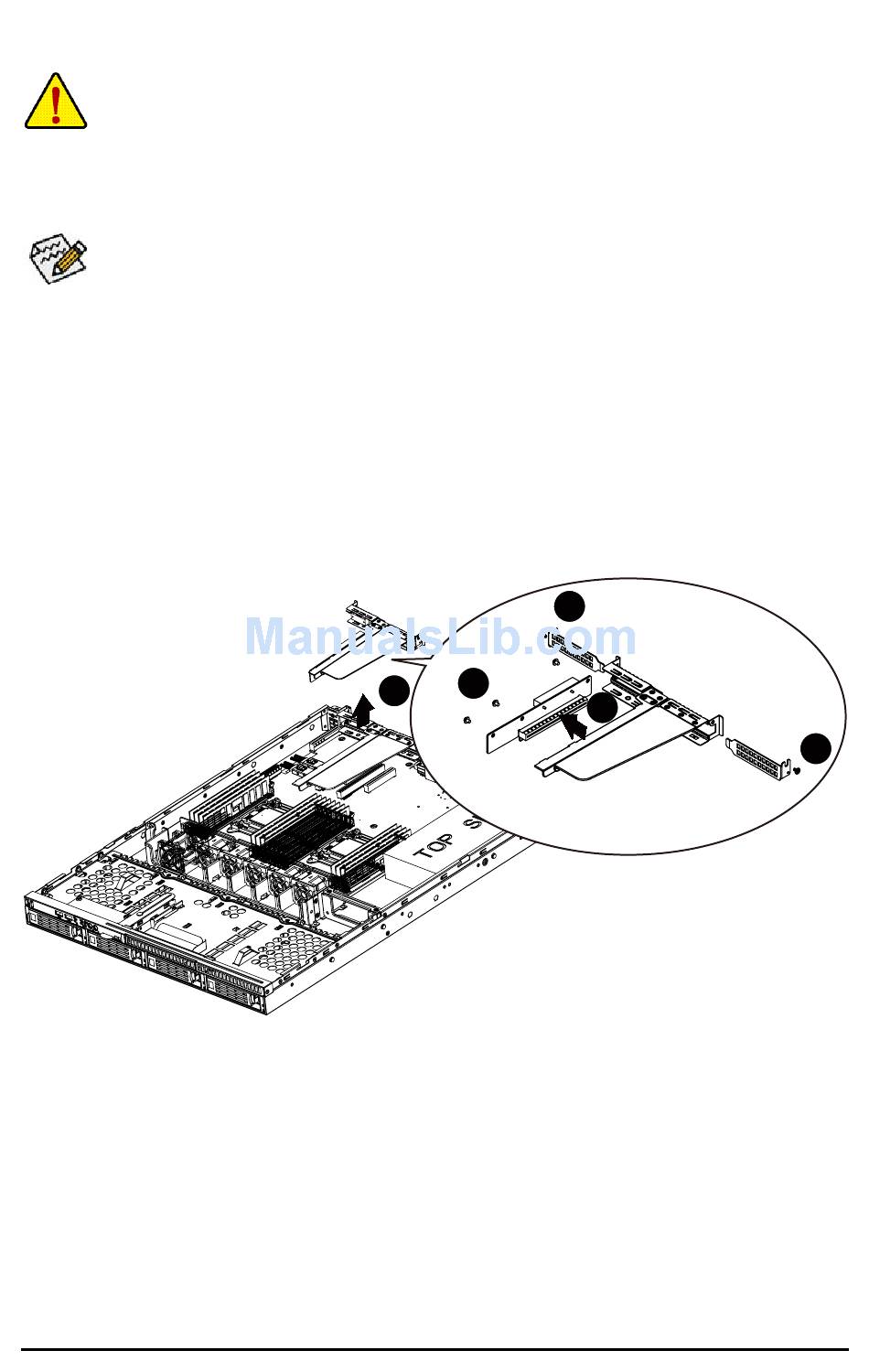

Follow these instructions to PCI Expansion card:
1. Lift the riser bracket slightly.
2. Turn around the riser bracket and loosen the PCI bracket screws.
3. Attach the mini PCI card slot to the riser bracket.
4. Securing the mini PCI card with three screws.
5. Orient the PCI card with the riser guide connector and push into the slot until the PCI card sits in the
PCI card connector.
6. To install the riser bracket follow the instructions for removing the riser bracket in the reverse order.
4
1
- 23 -
2
3
Hardware Installation
2
