Installing a Hard Disk Drive into 2.5" Hot Swap Hard Drive Carrier

1. Remove the drive carrier by pressing the green latch to unlock (see letter A). Pull out the black
lever and slide the carrier out (see letter B).

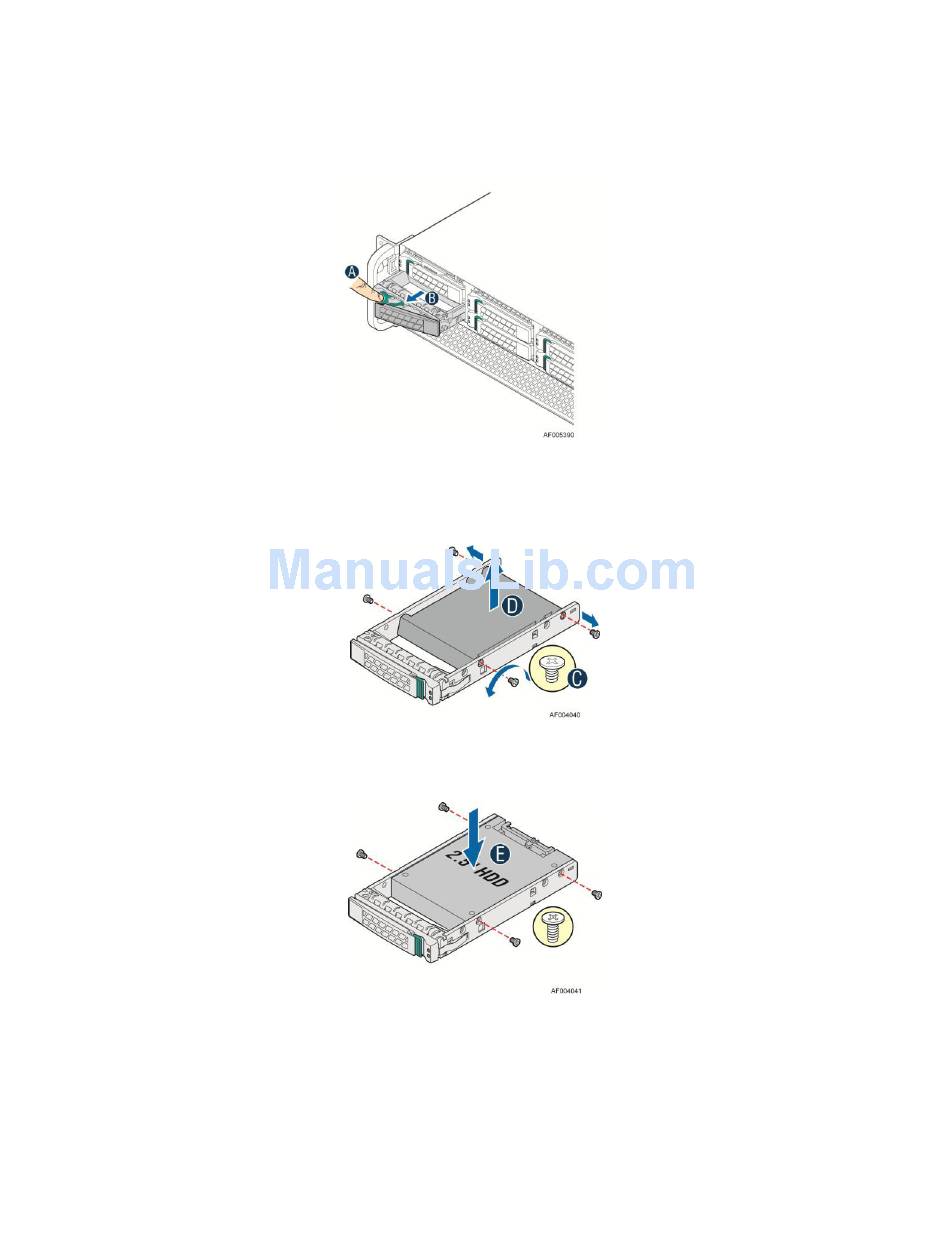

Figure 53. Installing Hard Disk Drive – Removing 2.5" HDD carrier
2. Remove the four screws securing the plastic drive blank from the 2.5" HDD carrier (see letter
C). Disengage the plastic drive blank from the HDD carrier. Remove the plastic drive blank
from the 2.5" HDD carrier (see letter D).
Figure 54. Installing Hard Disk Drive – Removing Plastic Drive Blank
3. Install the hard disk drive using the four screws as shown. Make Sure the connector end of the
drive matches the backplane connector (see letter E).
Figure 55. Installing Hard Disk Drive – Installing 2.5" HDD
®
