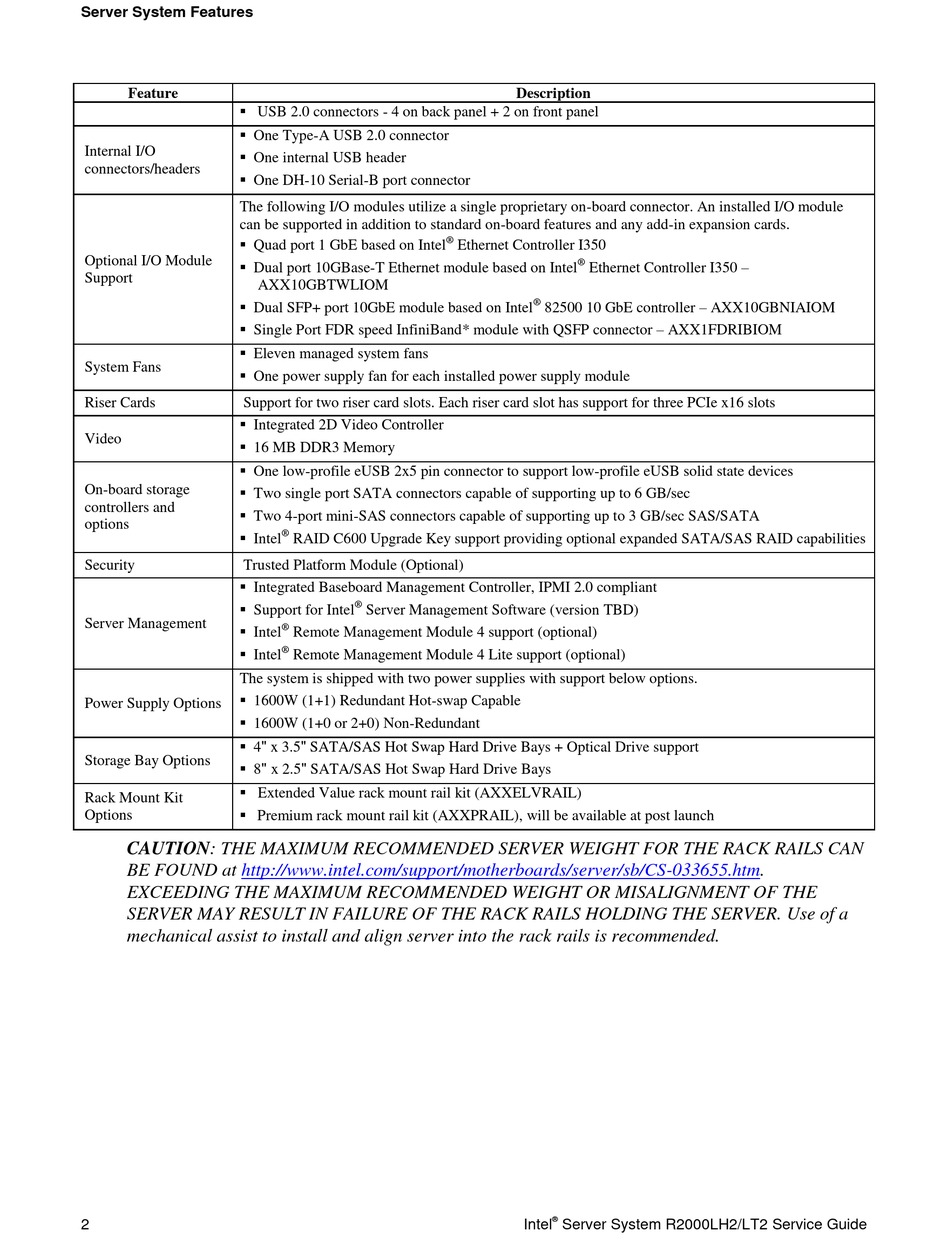

Server System Features
Feature
 USB 2.0 connectors - 4 on back panel + 2 on front panel
 One Type-A USB 2.0 connector
Internal I/O
 One internal USB header
connectors/headers
 One DH-10 Serial-B port connector
The following I/O modules utilize a single proprietary on-board connector. An installed I/O module
can be supported in addition to standard on-board features and any add-in expansion cards.
 Quad port 1 GbE based on Intel
Optional I/O Module
 Dual port 10GBase-T Ethernet module based on Intel
Support
AXX10GBTWLIOM
 Dual SFP+ port 10GbE module based on Intel
 Single Port FDR speed InfiniBand* module with QSFP connector – AXX1FDRIBIOM
 Eleven managed system fans
System Fans
 One power supply fan for each installed power supply module
Riser Cards Support for two riser card slots. Each riser card slot has support for three PCIe x16 slots
 Integrated 2D Video Controller
Video
 16 MB DDR3 Memory
 One low-profile eUSB 2x5 pin connector to support low-profile eUSB solid state devices
On-board storage
 Two single port SATA connectors capable of supporting up to 6 GB/sec
controllers and
 Two 4-port mini-SAS connectors capable of supporting up to 3 GB/sec SAS/SATA
options
 Intel
Security Trusted Platform Module (Optional)
 Integrated Baseboard Management Controller, IPMI 2.0 compliant
 Support for Intel
Server Management
 Intel
 Intel
The system is shipped with two power supplies with support below options.
 1600W (1+1) Redundant Hot-swap Capable
Power Supply Options
 1600W (1+0 or 2+0) Non-Redundant
 4" x 3.5" SATA/SAS Hot Swap Hard Drive Bays + Optical Drive support
Storage Bay Options
 8" x 2.5" SATA/SAS Hot Swap Hard Drive Bays
 Extended Value rack mount rail kit (AXXELVRAIL)
Rack Mount Kit
 Premium rack mount rail kit (AXXPRAIL), will be available at post launch
Options
CAUTION: THE MAXIMUM RECOMMENDED SERVER WEIGHT FOR THE RACK RAILS CAN
BE FOUND at http://www.intel.com/support/motherboards/server/sb/CS-033655.htm.
EXCEEDING THE MAXIMUM RECOMMENDED WEIGHT OR MISALIGNMENT OF THE
SERVER MAY RESULT IN FAILURE OF THE RACK RAILS HOLDING THE SERVER. Use of a
mechanical assist to install and align server into the rack rails is recommended.
2
®
Ethernet Controller I350
®
RAID C600 Upgrade Key support providing optional expanded SATA/SAS RAID capabilities
®
Server Management Software (version TBD)
®
Remote Management Module 4 support (optional)
®
Remote Management Module 4 Lite support (optional)
Description
Ethernet Controller I350 –
®
82500 10 GbE controller – AXX10GBNIAIOM
®
®
