Hardware Installations and Upgrades
4. With the lever open, insert the hard disk drive assembly into the chassis, then push in the lever
to lock it into place (see letter F).

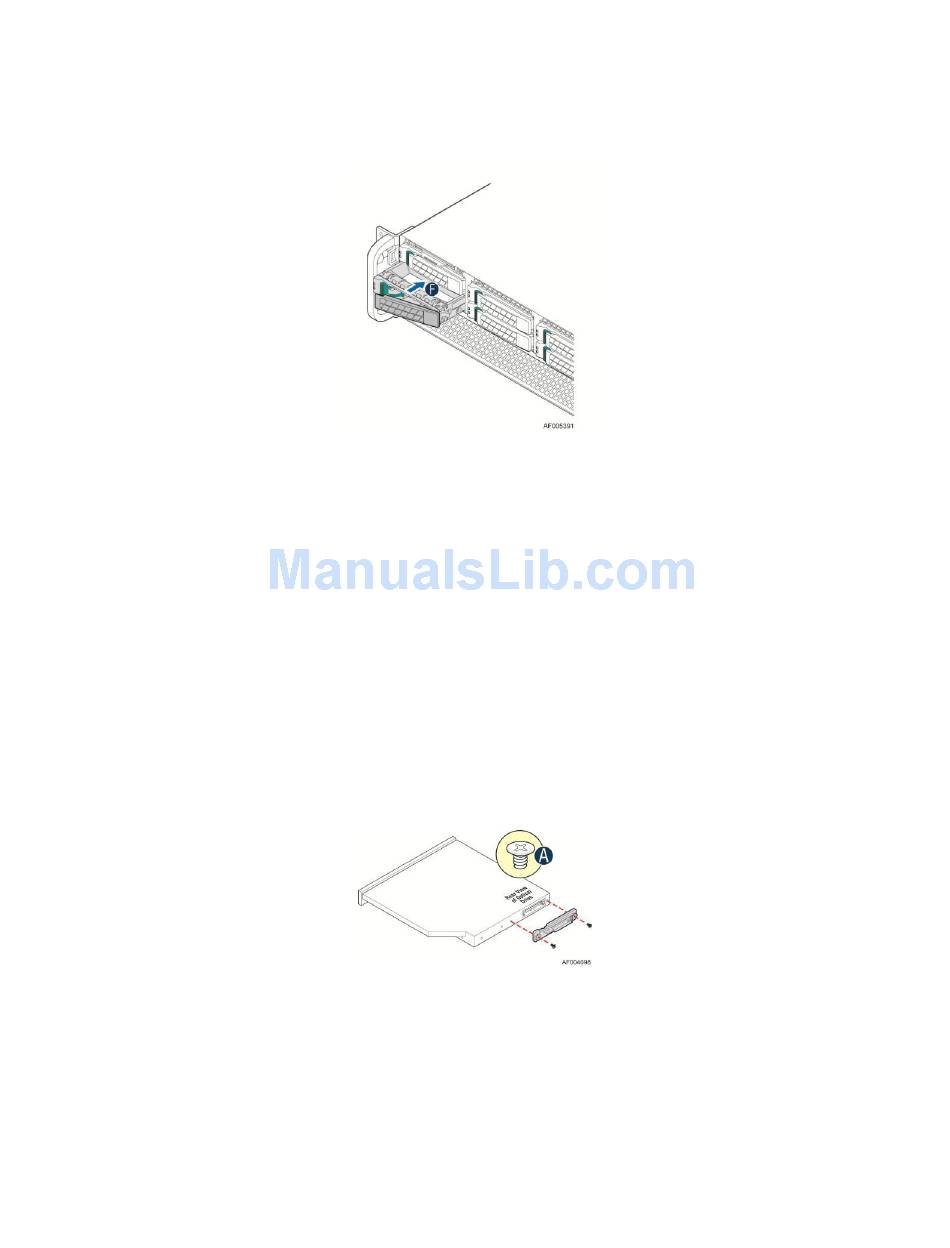

Figure 56. Installing Hard Disk Drive – Inserting 2.5" HDD assembly

Installing and Removing a Slimline Optical Drive

Cautions: The slimline optical drive is NOT hot-swappable. Before removing or replacing the drive, you
must first take the server out of service, turn off all peripheral devices connected to the system, turn off
the system by pressing the power button, and unplug the AC power cord from the system or wall outlet.
To maintain proper system cooling, a filler panel must be installed if you do not install a device at this
location.
Before installing or removing the slimline optical drive, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see

Installing a Slimline Optical Drive

1. Install the plastic guide onto the back of the drive and attach with two screws as shown (see
letter A).
36

Figure 57. Installing the Plastic Guide to the Optical Drive

Removing the System Cover.
®
