Removing and Installing the Front Fan Bezel
Removing the Front Fan Bezel
Follow these steps to remove the front fan bezel:
1. Loosing the two screws on left and right end (see letter A).
2. Remove the front fan bezel from the chassis (see letter B)
Installing the Front Fan Bezel
1. Slide in the bezel (see letter A). .
2. Secure the bezel to the chassis with the two screws on left and right end as shown (see
letter B).
18

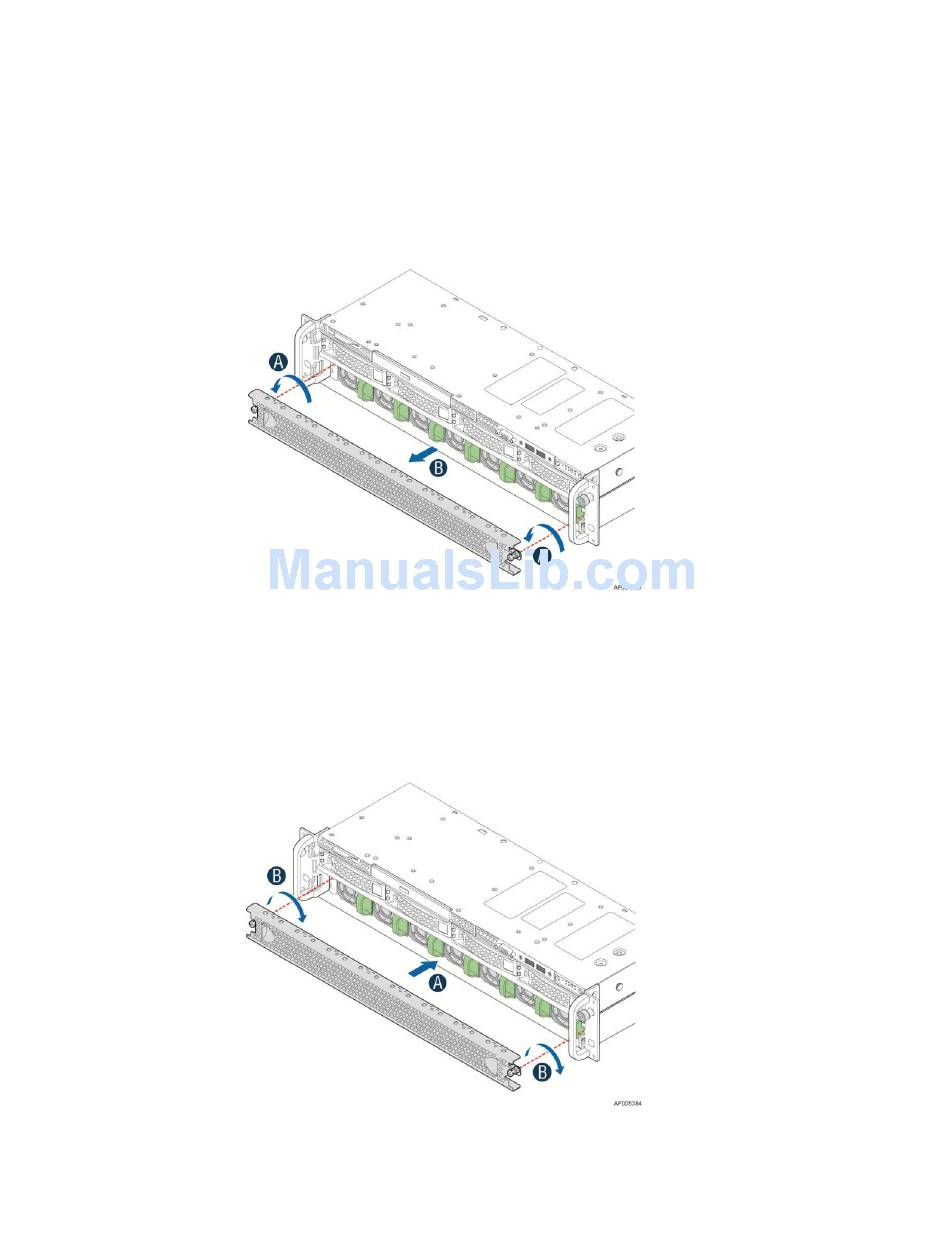

Figure 21. Removing the Front Fan Bezel
Figure 22. Installing the Front Fan Bezel
®
Intel
Server System R2000LH2/LT2 Service Guide
