Removing and Installing the Front Bezel (Optional)

Removing the Front Bezel

If your system includes a front bezel, follow these steps to remove the front bezel:
1. Unlock the bezel if it is locked.
2. Remove the left end of front bezel from rack handle (see letter A).
3. Rotate the front bezel anticlockwise to release the latches on the right end from the rack
handle (see letter B).

Installing the Front Bezel

Note: Before installing the bezel, you must install the rack handles.
1. Lock the right end of the front bezel to the rack handle (see letter A).
2. Rotate the front bezel clockwise till the left end clicks into place (see letter B).
3. Lock the bezel if needed.
®
Intel Server System R2000LH2/LT2 Service Guide

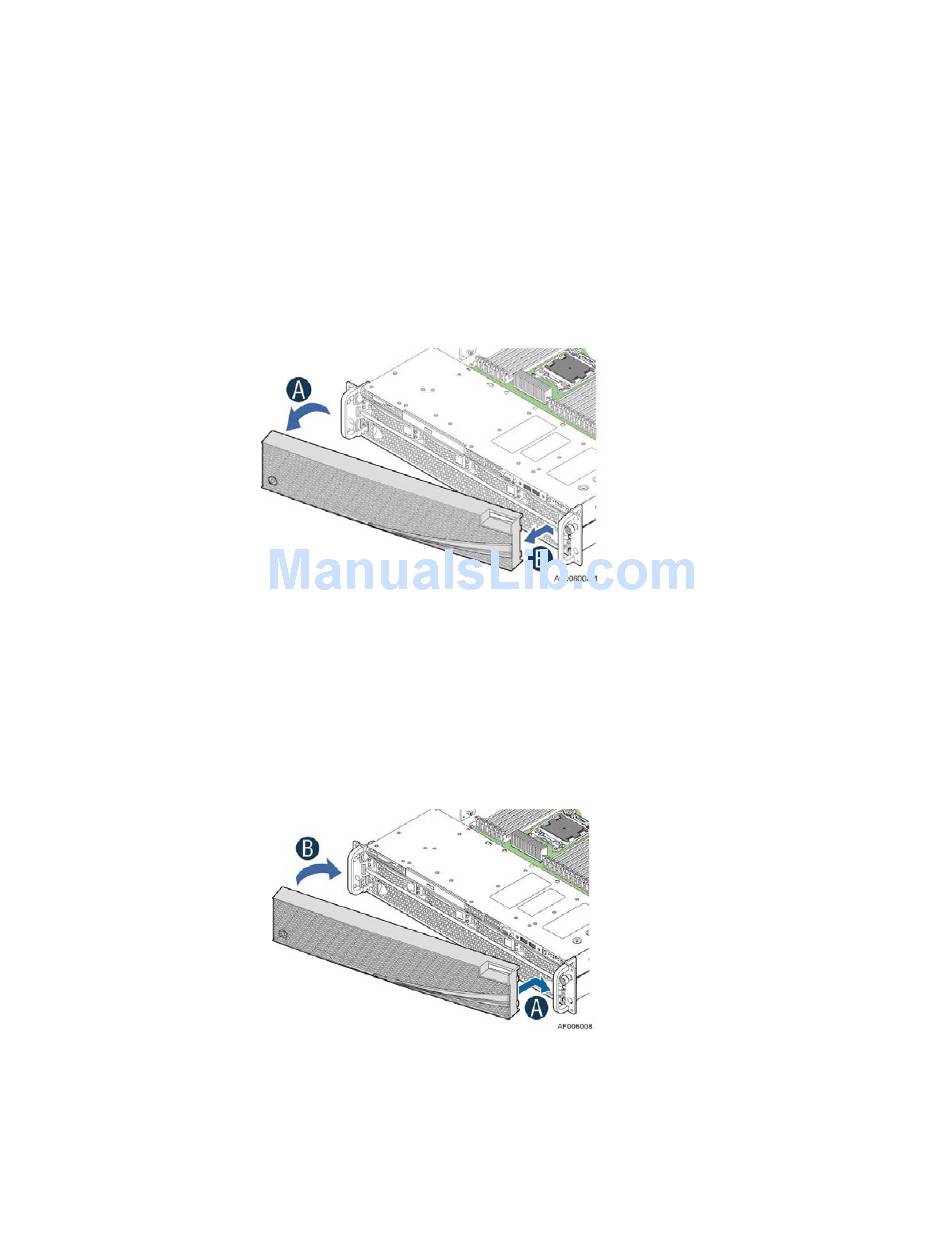

Figure 19. Removing the Front Bezel

Figure 20. Installing the Front Bezel

Hardware Installations and Upgrades
17
