Hardware Installations and Upgrades
4. Connect any cables to add-in cards that require them. See your add-in card documentation for
information and add-in card requirements.

Installing and Removing a PCI Add-in Card

Before removing or installing a PCI add-in card, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
3. Remove the PCI riser assemblies. For instructions, see

Installing a PCI Add-in Card

Installing a Half-Length PCI Add-in Card
1. Remove the filler panel from the add-in card slot and install the provided proper bracket as
shown (see letter A).
2. Insert add-in card until it sits in the riser connector (see letter B).
3. Secure add-in card with screw as shown (see letter C).
24
Removing the System

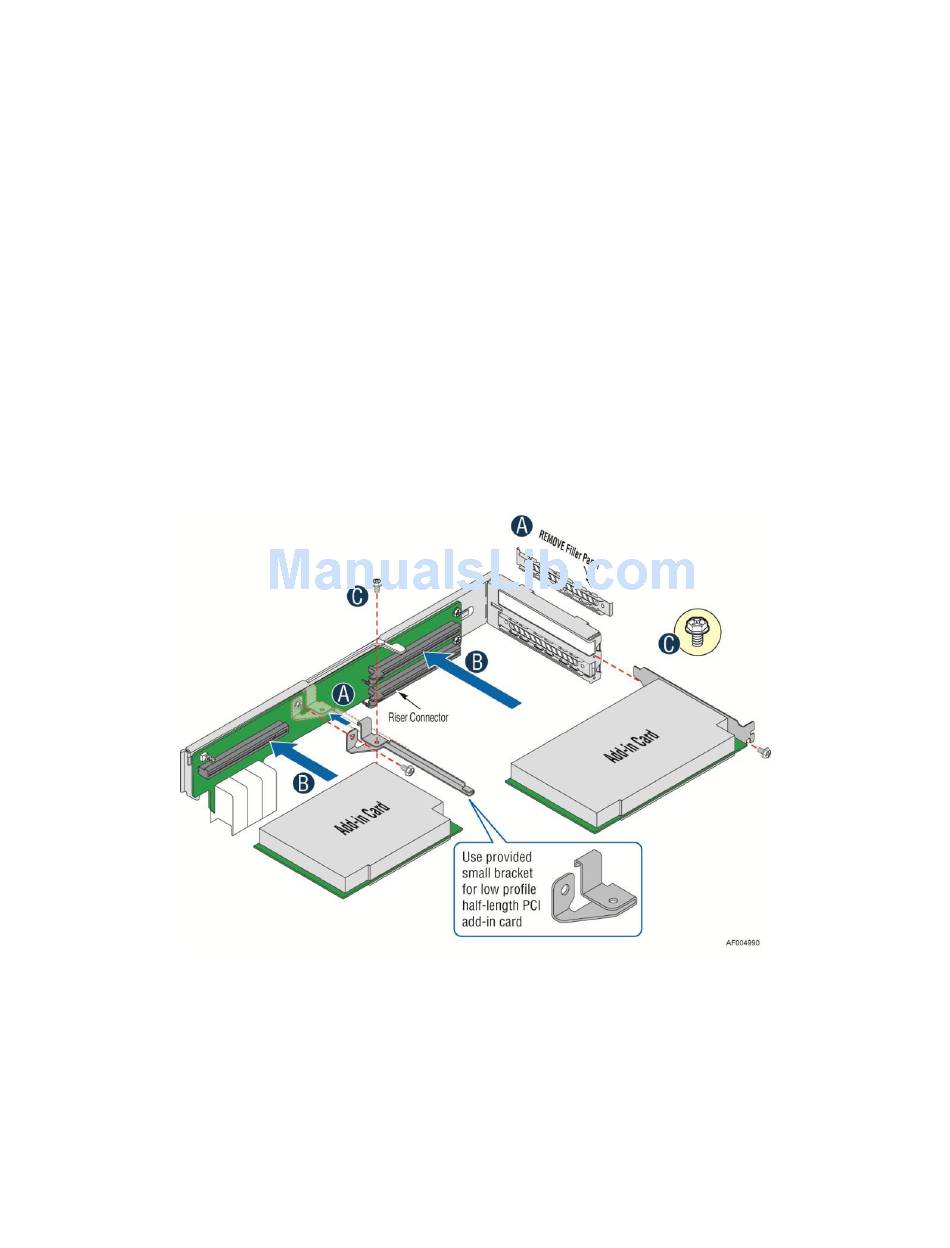

Figure 33. Installing a Half-Length PCI Add-In Card

Cover.
Removing the PCI Riser
®
Intel Server System R2000LH2/LT2 Service Guide
Assembly.
