Installing Intel I/O Expansion Module
1. Remove the screw securing the filler panel from the chassis and remove the filler panel (see
letter A).
2. Position the module over the server board, fit the front of the module into the back panel slot
(see letter B).
3. Attach the module to the server board connector (see letter C).
4. Secure the module with the two screws as shown (see letter D).
®
Intel Server System R2000LH2/LT2 Service Guide
®

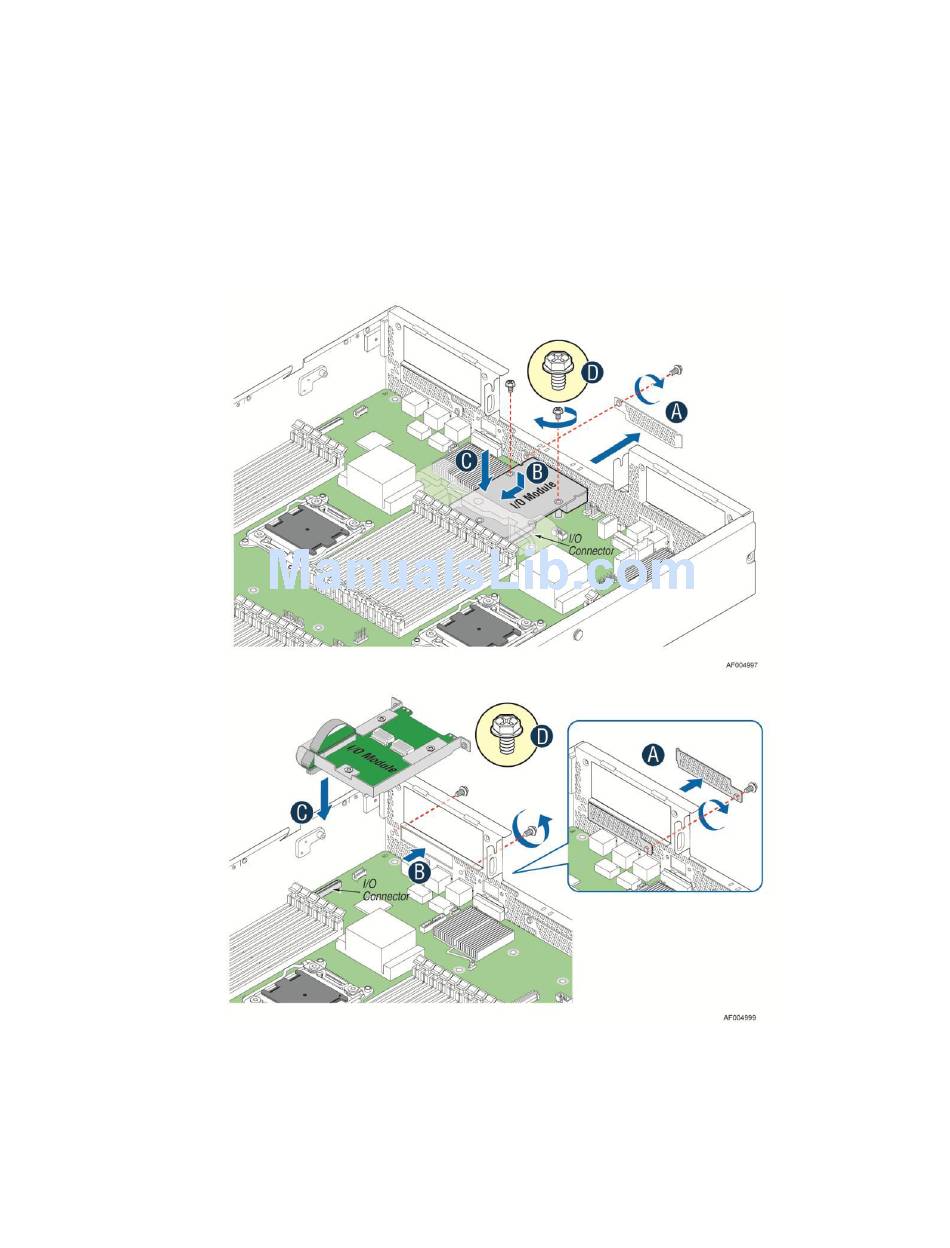

Figure 61. Installing Intel
