Hardware Installations and Upgrades
Removing a Solid State Drive
1.
Disconnect cables (see letter A).
2.
Remove the two screws to release the Solid State Drive carrier (see letter B).
3.
Pull the Solid State Drive up to remove from the air duct (see letter C).
4.
Remove the four screws to release the Solid State Drive (see letter D).
5.
Pull the Solid State Drive up to remove from the carrier (see letter E).
6.
Secure the Solid State Drive carrier to chassis with the two screws.
44

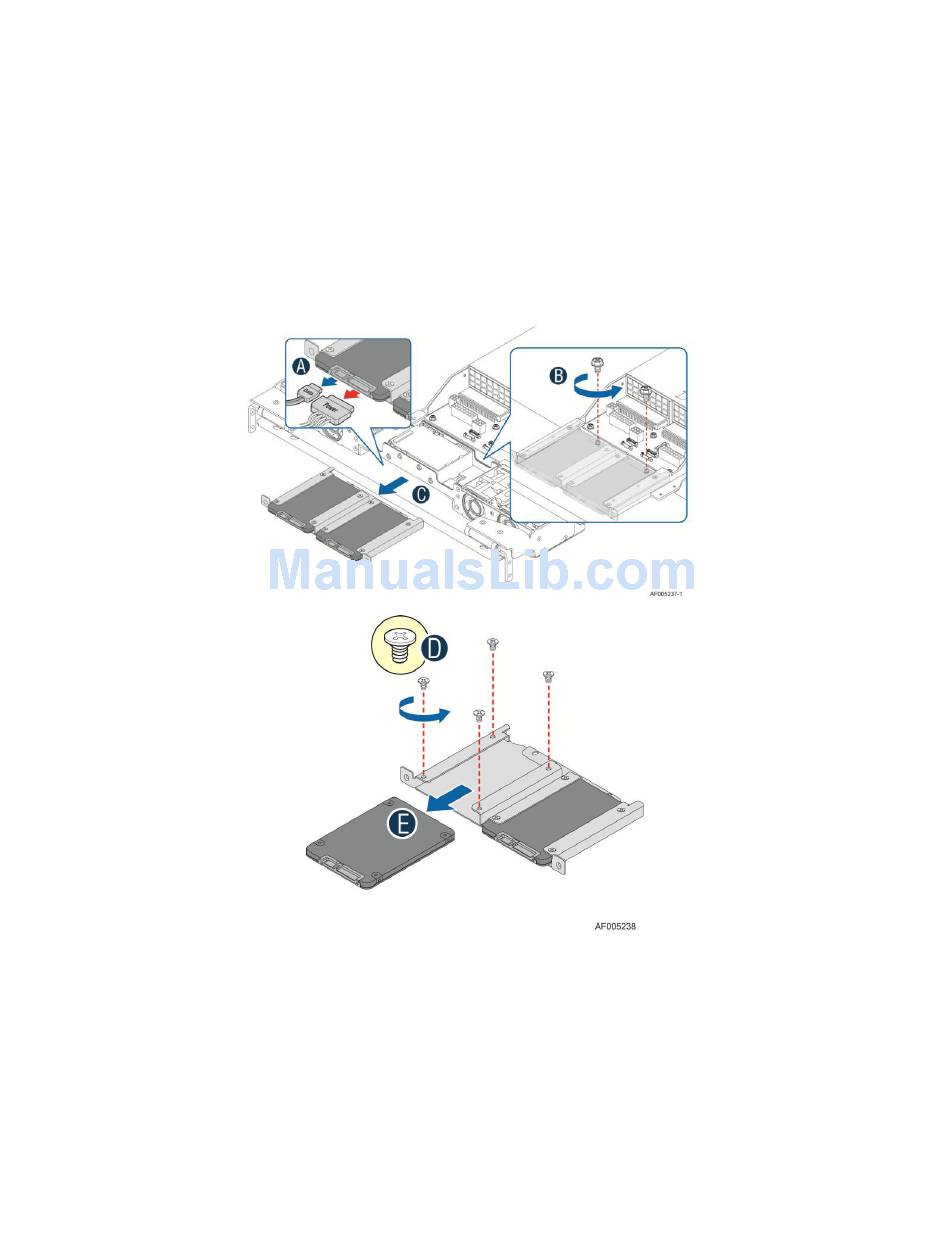

Figure 67. Removing a SSD
