[E]

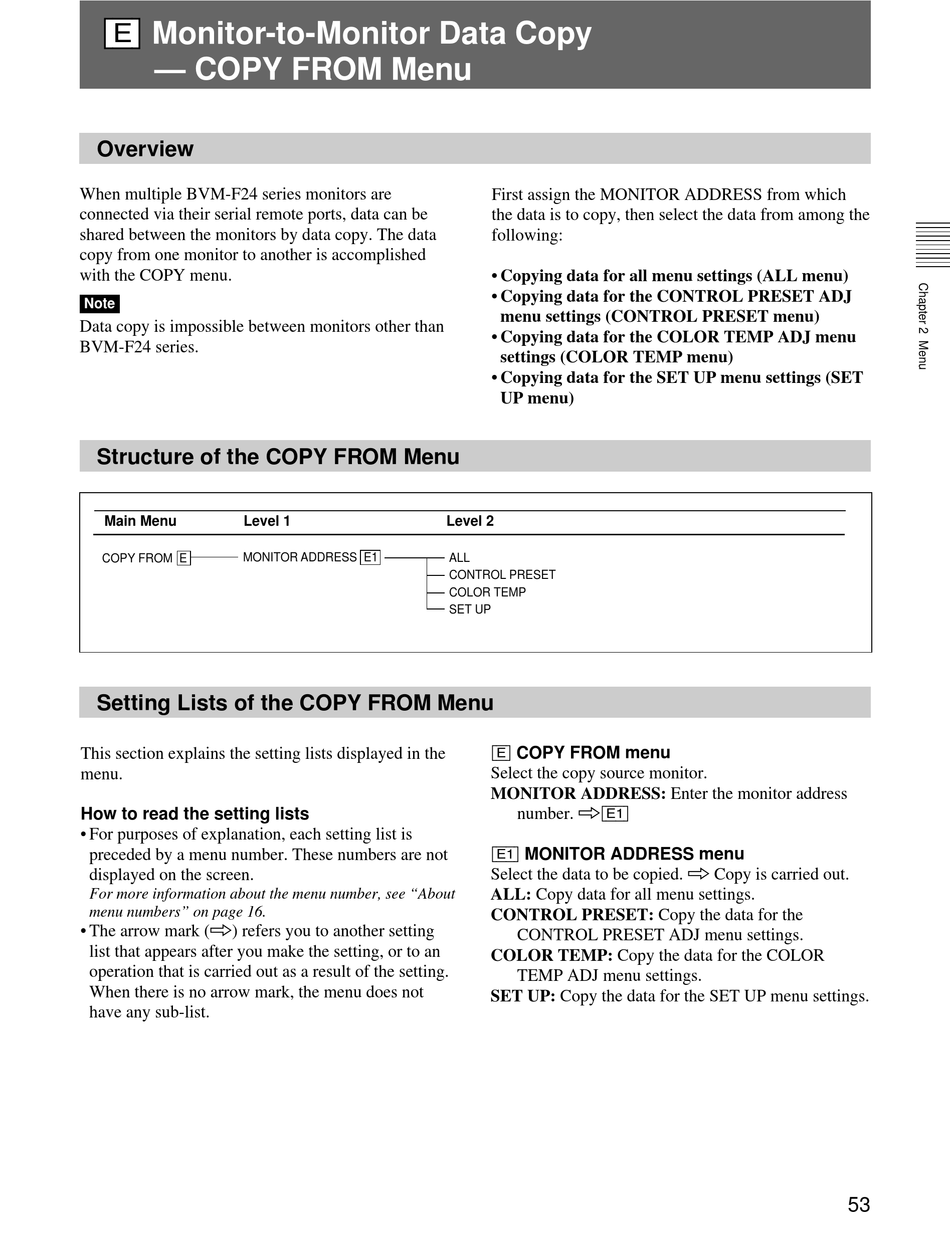

Monitor-to-Monitor Data Copy
— COPY FROM Menu

Overview

When multiple BVM-F24 series monitors are
connected via their serial remote ports, data can be
shared between the monitors by data copy. The data
copy from one monitor to another is accomplished
with the COPY menu.
Note
Data copy is impossible between monitors other than
BVM-F24 series.

Structure of the COPY FROM Menu

Main Menu
Level 1
MONITOR ADDRESS E1
COPY FROM E

Setting Lists of the COPY FROM Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
For more information about the menu number, see "About
menu numbers" on page 16.
• The arrow mark (k) refers you to another setting
list that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not
have any sub-list.
First assign the MONITOR ADDRESS from which
the data is to copy, then select the data from among the
following:
• Copying data for all menu settings (ALL menu)
• Copying data for the CONTROL PRESET ADJ
menu settings (CONTROL PRESET menu)
• Copying data for the COLOR TEMP ADJ menu
settings (COLOR TEMP menu)
• Copying data for the SET UP menu settings (SET
UP menu)
Level 2
ALL
CONTROL PRESET
COLOR TEMP
SET UP
[E] COPY FROM menu
Select the copy source monitor.
MONITOR ADDRESS: Enter the monitor address
number. k[E1]
[E1] MONITOR ADDRESS menu
Select the data to be copied. k Copy is carried out.
ALL: Copy data for all menu settings.
CONTROL PRESET: Copy the data for the
CONTROL PRESET ADJ menu settings.
COLOR TEMP: Copy the data for the COLOR
TEMP ADJ menu settings.
SET UP: Copy the data for the SET UP menu settings.
53
