Turn of the century 20223 Owner's Manual

52" berkshire
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

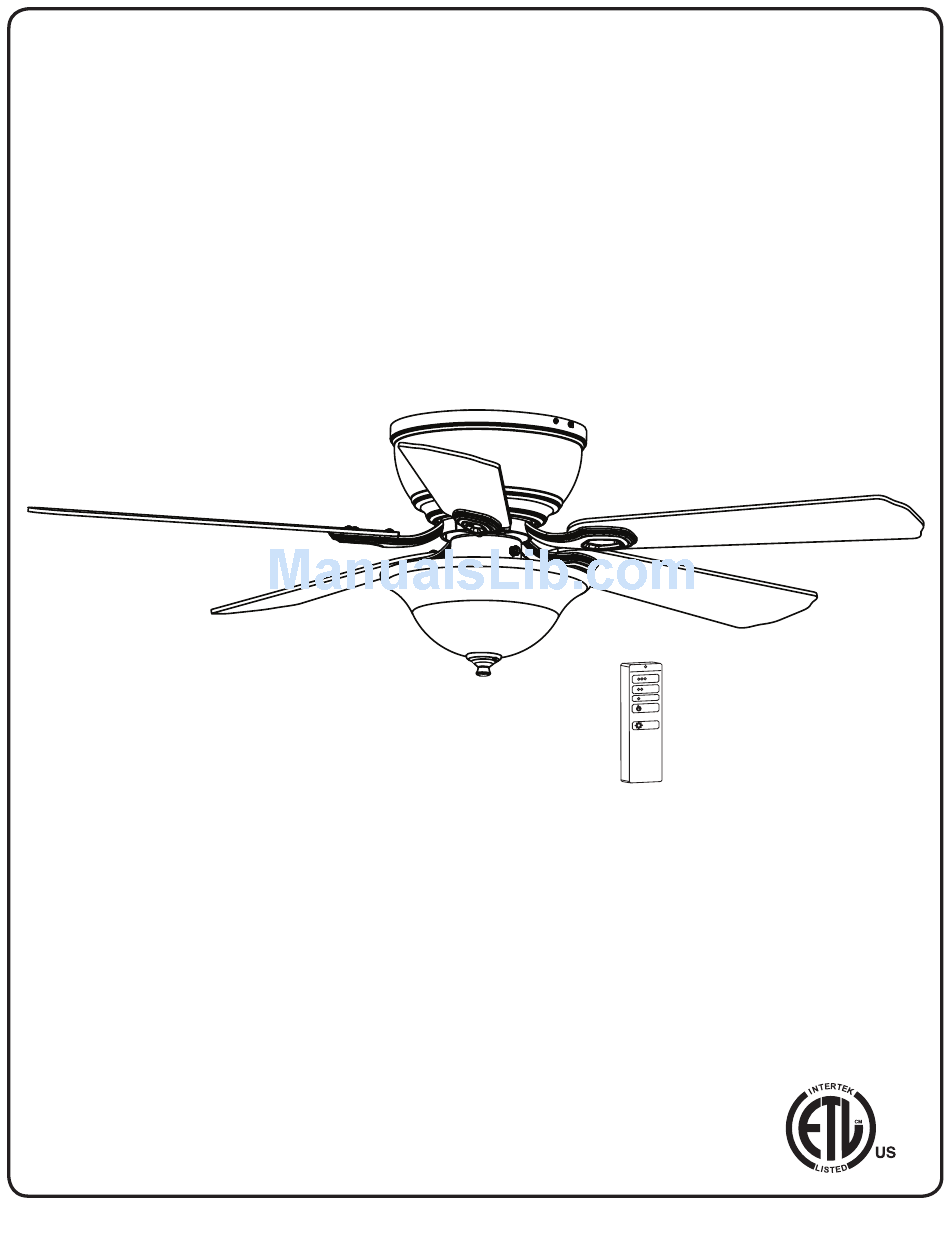

52"BERKSHIRE

CEILING FAN

Owner's Manual
Models #20223, 20224
If a problem cannot be remedied or you are experiencing difficulty in installation,
please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.
Turn of the Century
TM
1
9051 • 04/15/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20223 and is the answer not in the manual?

Questions and answers

Related Manuals for Turn of the century 20223

Summary of Contents for Turn of the century 20223

  • Page 1: Ceiling Fan

    52”BERKSHIRE CEILING FAN Owner’s Manual Models #20223, 20224 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9051 • 04/15/14...

  • Page 2: Package Contents

    27. Plug Button 22. Blade Washer (x 15) 28. Blade Isolator (x 5) 23. Switch Housing Screw (x 3) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century...
  • Page 3 Mounting Bracket Motor Housing Lower Bracket Blade Motor Switch Housing Blade Arm Switch Housing Cap Bulb Light Kit Glass Shade Finial Cap Finial DIMENSION REFERENCE A. 14.17 in. B. 7.09 in. C. 8.27 in. D. 11.02 in. Turn of the Century...

  • Page 4: Safety Instructions

    Note: The fan weight is Net Weight: 14.52 lb (6.6 kg), Gross Weight: 17.6 lb (8.0 kg). Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury. Turn of the Century...
  • Page 5 4. Secure the lower bracket to the mounting bracket with the four bracket screws and spring washers. Mounting Bracket Lower Bracket Bracket Screws Turn of the Century...
  • Page 6 Completely secure each blade arm to motor before moving to the next. Blade To install the fan without the light kit, skip to Step 16. Isolator Blade Motor Screw Turn of the Century...
  • Page 7 12. Remove the finial cap and finial, then feed the pull chain coming from the center of the light kit through the center hole in the glass shade. Feed the pull chain coming from the switch housing through the off-center hole in the glass shade. Turn of the Century...
  • Page 8 Pull the pull chains on the fan until the fan is on high and the light is on. From this point on, use only the remote to control the fan and light. Turn of the Century...
  • Page 9 E - Turns the light on and off. Press and hold this button to dim or brighten when using incandescent bulbs. F - D/CFL Switch: Located inside the battery compartment in remote transmitter. IMPORTANT: The dimmer function does NOT work with CFL bulbs. Turn of the Century...

  • Page 10: Troubleshooting

    The LED indicator will flash 3 times. When syncing is complete, the fan will start on the low speed with the light (if applicable) off. 3. Replace the transmitter battery with a new 12-volt battery. Turn of the Century...

  • Page 11: Limited Lifetime Warranty

    If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
