Page 1: Ceiling Fan

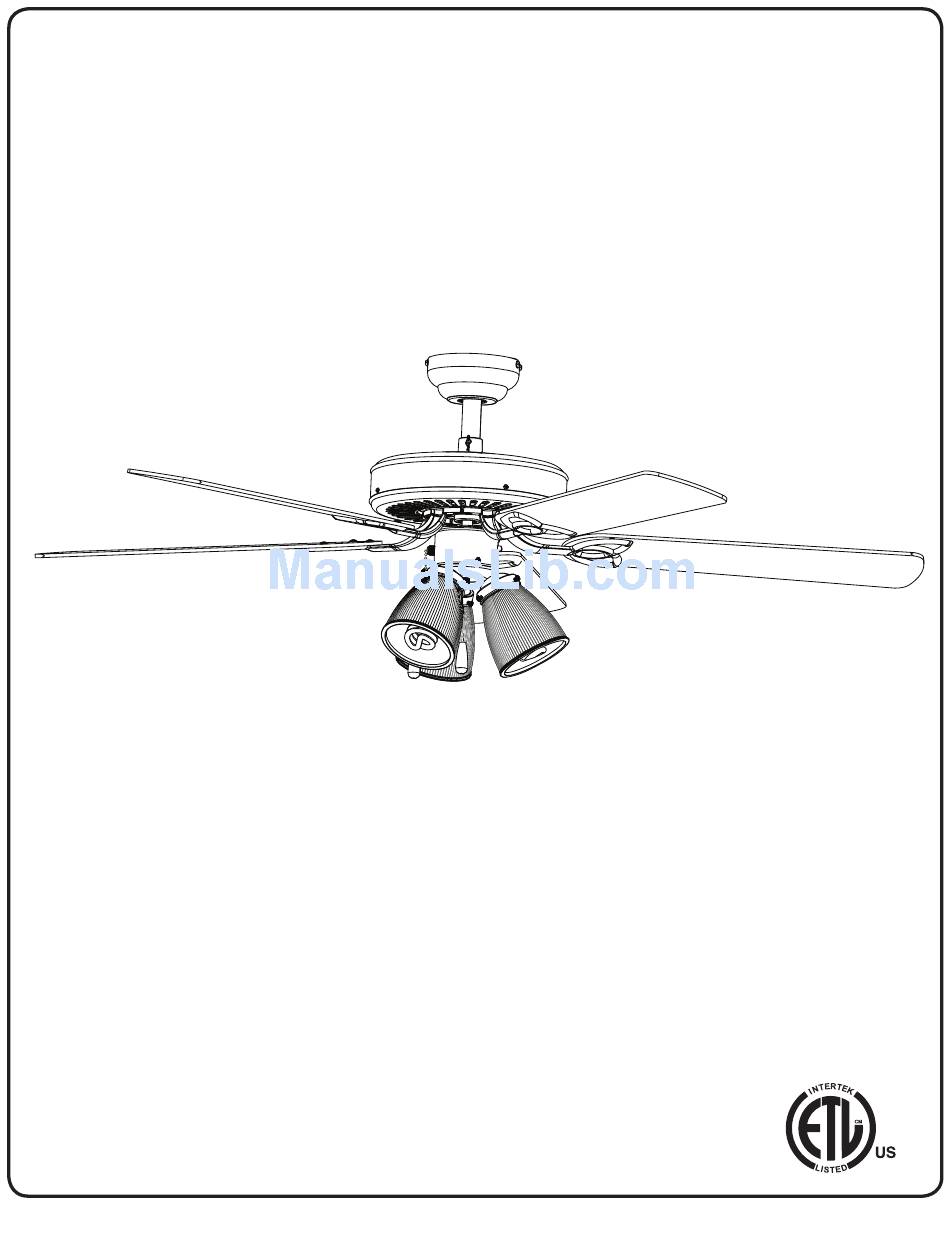

52” SOMMERFIELD CEILING FAN Owner’s Manual Models #20185, 20186, 20187 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9112 • 02/06/15... -
Page 2: Package Contents
20. Closemount Screw (x 3) 27. Downrod Clip 21. Downrod Set Screw (x 2) 28. Downrod Pin 22. Star Washer (x4) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century... -
Page 3: Mounting Options
Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not steeper than 16°. Turn of the Century... -
Page 4: Safety Instructions
NOTE: The fan weight is Net Weight: 16.5 lb (7.5 kg), Gross Weight: 17.8 lb (8.1 kg). Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so may cause the fan to fall, which could result in serious injury or death. Turn of the Century... - Page 5 Proceed to Step 8. 4. DOWNROD MOUNT - Remove the downrod pin and downrod clip from the downrod. Then, loosen but don’t Downrod remove the set screws in the yoke. Clip Downrod Set Screw Yoke Turn of the Century...
- Page 6 Important: After the connections have been made, the wires should be turned upward and pushed carefully up into the outlet box. Place the black and white wire connections on opposite sides of the outlet box. Turn of the Century...
- Page 7 Step 10. Secure each blade arm to motor before moving to the next. Motor To install the fan without the light kit, skip to step 16. Blade Arm Switch Housing Motor Screw Turn of the Century...
- Page 8 Remove the three switch housing screws from the switch housing cap. b. Install the switch housing cap to the bottom of the switch housing with the three switch housing screws. Switch Housing Screw Switch Housing Cap Turn of the Century...
- Page 9 In warmer weather, push the reverse switch down which will result in downward airflow creating a wind chill effect. In cooler weather, push the reverse switch up which will result in upward airflow that can help move stagnant, hot air off the ceiling area. Turn of the Century...
-
Page 10: Troubleshooting
2. Check for loose or disconnected wires in fan switch housing. 3. Check for loose or disconnected wires in light kit. 4. Check for faulty light bulbs. CAUTION: Make sure main power is turned off before entering switch housing. Turn of the Century... -
Page 11: Limited Lifetime Warranty
If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
