52" SAN LUCAS

CEILING FAN

Owner's Manual

Models #20551

If a problem cannot be remedied or you are experiencing difficulty in installation,

please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time.

Turn of the Century

9143 • 120515

Need help?

Do you have a question about the 20551 and is the answer not in the manual?

Questions and answers

Summary of Contents for Turn of the century 20551

Page 1: Ceiling Fan

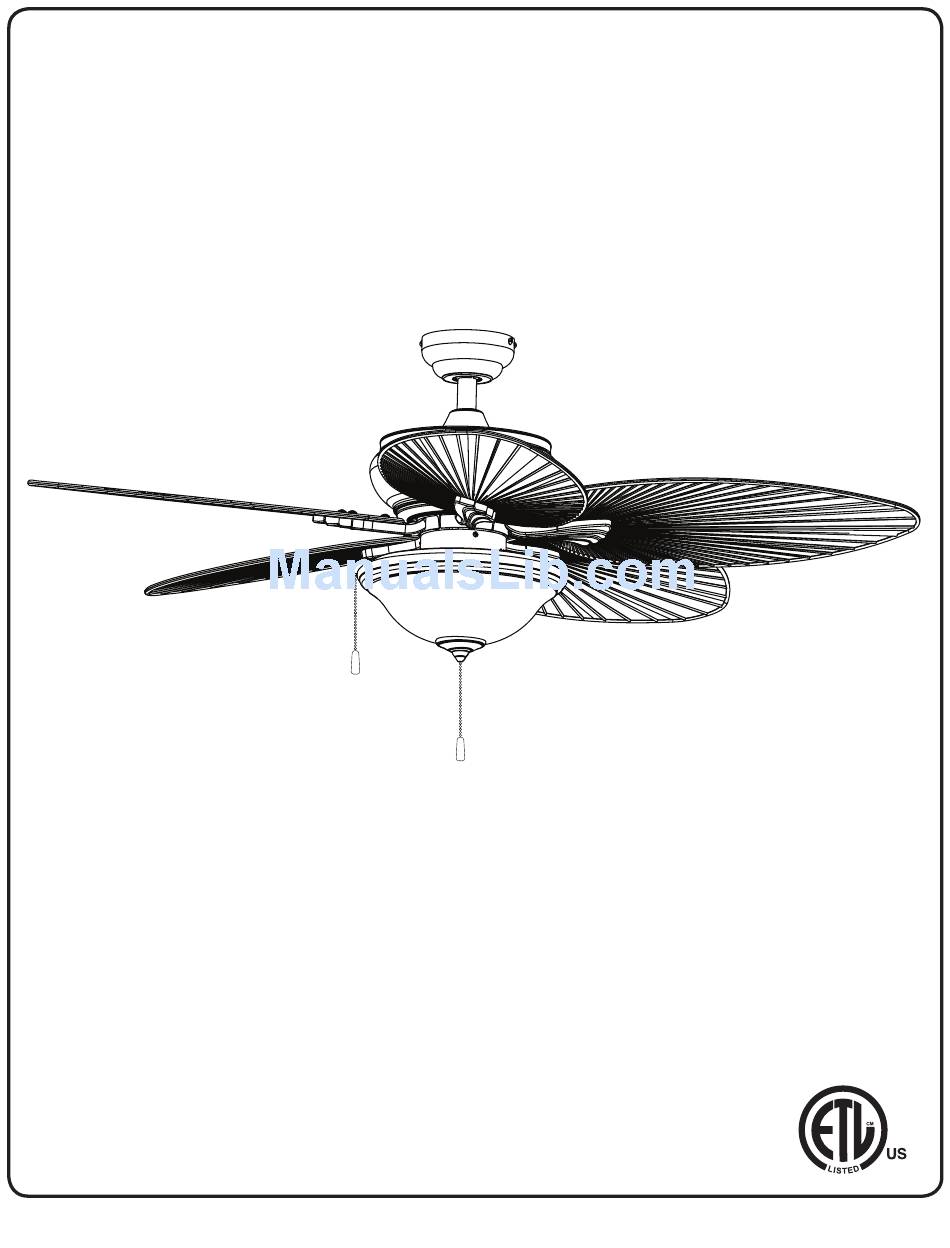

52” SAN LUCAS CEILING FAN Owner’s Manual Models #20551 If a problem cannot be remedied or you are experiencing difficulty in installation, please contact the Service Department: 1-877-459-3267, 9 a.m.- 5 p.m. Central time. Turn of the Century 9143 • 120515...
Page 2 22. Closemount Screw (x 3) 29. Downrod Pin 23. Set Screw (x 2) 30. Blade Isolator 24. Blade Washer (X 15) Note: Some extra hardware has been included. The quantity listed above is the number required for installation. HARDWARE CONTENTS Turn of the Century...
Page 3 Angled Ceiling Mount is best suited for angled or vaulted ceilings. A longer downrod is sometimes necessary to ensure proper blade clearance from the ceiling. If using the angle mount, check to ensure the ceiling angle is not steeper than 16°. Turn of the Century...
Page 4 NOTE: The fan weight is Net Weight: 22.7 lb (10.29 kg). Be sure the outlet box (not included) is securely attached to the building structure and is marked “Acceptable For Fan Support”. Failure to do so can result in serious injury. Turn of the Century...
Page 5 Secure the canopy to the top of the motor assembly by reinstalling the three Phillips-head closemount screws. d. Hang the fan on the hook of the mounting bracket to leave hands free during the wiring process. Canopy Proceed to Step 9. Turn of the Century...
Page 6 WARNING: The fan and/or downrod should not rotate in the mounting bracket if installed correctly. Failure to align the slot in the downrod ball with the tab may result in fan falling causing serious injury or death. Turn of the Century...
Page 7 Step 3. Completely secure each blade arm to motor before moving to the next. Motor Assembly To install the fan without the light kit, skip to step 16. Blade Isolator Motor Screw Blade Arm Turn of the Century...
Page 8 Disconnect the single-pin Housing connectors inside the switch housing. Then, remove the light kit from the switch housing. Light Kit Insert the plug button into the center hole of the switch housing. Switch Plug Button Housing Turn of the Century...
Page 9 Fitter Plate Switch Switch Housing Housing Screw 18. Attach pull chain extension(s) to the pull chain(s). Pull Chain Extension 19. Restore the power at the main fuse or circuit breaker. Turn of the Century...
Page 10 IMPORTANT: The reverse switch must be set either completely left or right in order for the fan to function correctly. If the reverse switch is set in the middle position, the fan will not operate. Turn of the Century...
Page 11 CAUTION: Make sure main power is turned off before entering switch housing. 5. Weak airflow: 1. Make sure the reverse switch is in the down position. 2. Change to higher fan speed by pulling the fan pull chain. Turn of the Century...
Page 12 If your Turn of the Century Ceiling Fan motor fails at any time during the lifetime of the original purchaser due to defects in material or workmanship, we will provide a replacement part free of charge.
